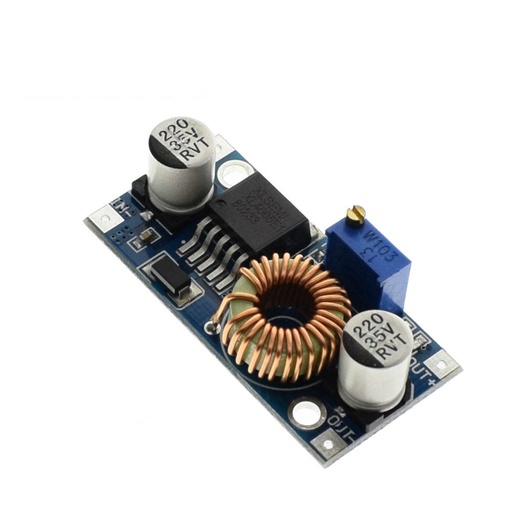

5A XL4015 DC-DC STep Down Adjustable Power Supply Module for Arduino

https://www.satisled.com/web/image/product.template/1215/image_1920?unique=99581fd
(0 review)

1.41 1.41 USD 1.41

¥ 10.12

Not Available For Sale


    This combination does not exist.


    Categories :
    Power Modules
    SKU :
    180587
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Description:

    The DC-DC module based on LM2596 advocate current to 3.0A, but only to 1.8A. However, being introduced module adds a heatsink, using high-power devices.This module can easily reach 4A, 50W, add heat sink circumstances can reach 75W.

    • Module highlights: 5A high power.high efficiency and low ripple with power indicator.

    • Input voltage range:4-38VDC(Note:input voltage not exceeding 38V)

    • Output voltage range:1.25-36VDC adjustable

    • Output current: 0-5A, recommended for use in 4.5A.

    • Output power: 75W

    • Working temperature: -40~+85 degrees

    • Operating frequency: 180KHz

    • Efficiency:96%(max)

    • Short circuit protection: yes(limit current 8A).

    • Over temperature protection

    • Input reverse polarity protection: None (if required, high current diode in series with the input).

    • L x W x H = 54 * 23 * 18mm

    Application:

    • The DC/DC buck module applications the input voltage is higher than the output voltage of the buck field, such as battery, power transformer, DIY adjustable regulated power supply, 24V Vehicle notebook power supply,industrial equipment buck.12V buck to 3.3V, 12V buck to 5V,  24V buck to 5V,24V buck to 12V,  36V buck to 24V etc.
