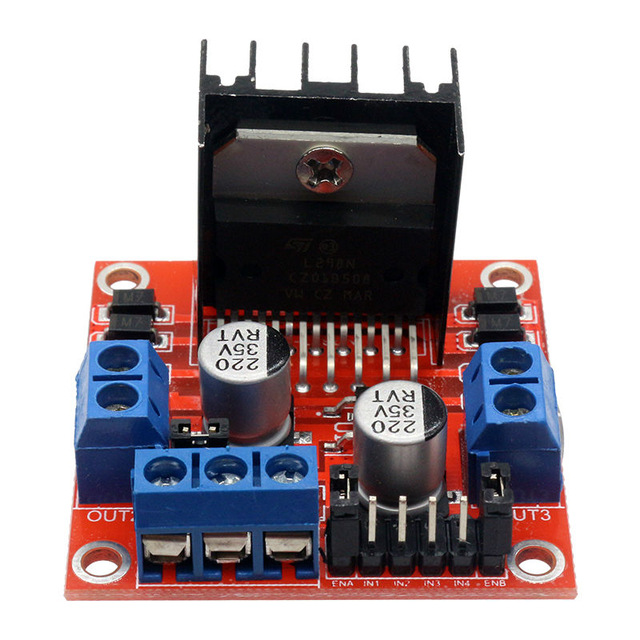

L298N H-Bridge Stepper Motor Driver Module for Arduino

https://www.satistronics.com/web/image/product.template/3119/image_1920?unique=d27fcb4
(0 review)

$ 1.50 1.5 USD $ 1.50

¥ 10.12

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Stepper Motor Driver , Power Modules
    SKU :
    180593
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery
    You may also like

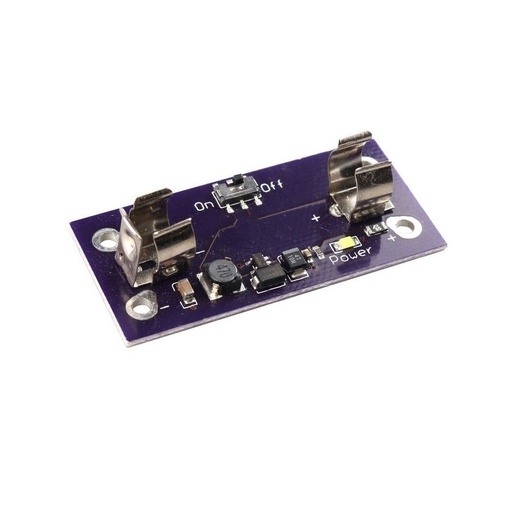

    LilyPad Power Supply Module AAA Battery Step up to 5V Converter for Arduino
    LilyPad Power Supply Module AAA Battery Step up to 5V Converter for Arduino
    $ 2.11 $ 2.11
    XL6009 DC-DC Adjustable Step-up Boost Power Converter Board Module for Arduino
    XL6009 DC-DC Adjustable Step-up Boost Power Converter Board Module for Arduino
    $ 1.12 $ 1.12
    L298N Dual Channel PWM Motor Speed Driver Board
    L298N Dual Channel PWM Motor Speed Driver Board
    $ 0.39 $ 0.39
    DC-DC Converter Step Up Boost Module 0.9-5V T0 5V 600MA
    DC-DC Converter Step Up Boost Module 0.9-5V T0 5V 600MA
    $ 0.36 $ 0.36
    2A SX1308 DC-DC Step Up Adjustable Power Module Step Up Boost Converter
    2A SX1308 DC-DC Step Up Adjustable Power Module Step Up Boost Converter
    $ 0.33 $ 0.33
    Blue PCB Board ULN2003 Driver Module Stepper Motor Driver
    Blue PCB Board ULN2003 Driver Module Stepper Motor Driver
    $ 0.55 $ 0.55

    Features:

    • Working mode: H bridge (double lines)

    • Control chip: L298N (ST)

    • Logical voltage: 5V

    • Driving voltage: 5V-35V

    • Logical current: 0mA-36mA

    • Driving current: 2A (MAX single bridge)

    • Storage temperature: (-20 °C)-(+135 °C)

    • Maximum power: 25W

    • Weight: 30g

    • Periphery dimension: 43 x 43 x 27mm(L x W x H)

    • Using L298N made by ST company as the control chip, the module has such characteristics as strong driving

    • Ability, low calorific value and strong anti-interference ability.

    • This module can use built-in 78M05 for electric work via a driving power supply part. But to avoid the damage

    • Of the voltage stabilizing chip, please use an external 5V logic supply when using more than 12V driving voltage.

    • Using large capacity filter capacitor, this module can follow current to protect diodes, and improve the reliability.

    ​
