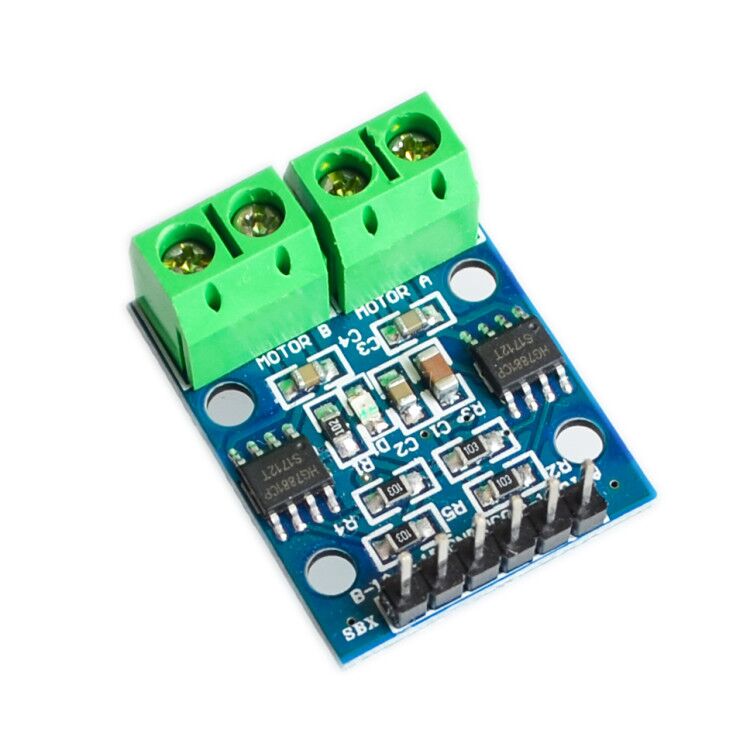

HG7881 HG7881CP 2 Channel DC Stepper Motor Controller Driver Module
Categories :Stepper Motor Driver
HG7881 2-Channel Step/DC Motor Driver Module is a compact board that can be used to drive very small robots.
This tiny module has 2 pcs HG7881 motor control chips.The boards can be operated from 2.5V to 12V.
The module can drive 2 dc motors or 1 4-wire 2-phase stepper motor simultaneously.
Each channel has a continuous current output capacity of 800mA.
Four holes make this board easy to mount onto your robot or other project.
HG7881 chip on board motor control
The module can simultaneously drive two DC motors or a 4-wire two-phase stepper motor
The module input voltage :2.5-12V
Each channel has a 800mA continuous output current capability
PCB dimensions: 29.2 (mm) x23 (mm)
