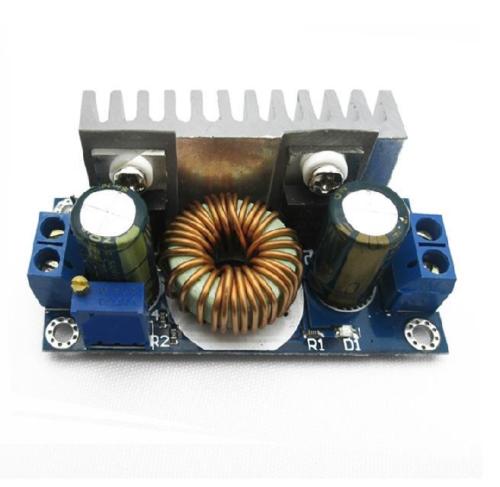

8A DC-DC Step up Booster Power Supply Converter Module Boost Board

Parameters:

• The isolation booster module

• The highest conversion efficiency：96%

• Input voltage：6~32（max 35V）

• Output voltage: 6~42（max 52V）

• Maximum input current: 8A

• maximum current output: 5A

• Static working current: 15mA

• Power :70W

• To adapt to the environment:-40~+85℃

• Working frequency: 150KHz

Characterization:

• Adopt high-frequency electrolytic capacitor reduce the ripple value, more stable output voltage;

• Provide reverse connect protection, avoid the equipment damage caused by incorrect operation;

• Stops booster, soft short circuit protection, short circuit, automatic recovery when short circuit faults remove;

• With access to electricity, the LED indicator light, easy to understand

• way to install：4*M3 screw

• Connection mode: welding output terminals free

• Module size: 30 mm high 20 mm long 60 mm wide

Note:

• The input voltage is greater than 5 v, only is greater than the start voltage to work properly;

• Input current is greater than 1 a, the input current is too small easy to cause the power short circuit alarm by mistake;
