0/4-20mA To 0-3.3V/5V/10V Current to Voltage Module

Price:

0.52


24AWG Wire Kits Tinned Cable 5cm/ 8cm /10cm/ Colorful 13 Values 130PCS
24AWG Wire Kits Tinned Cable 5cm/ 8cm /10cm/ Colorful 13 Values 130PCS
0.93
0.93
0603 5% Chip Resistors Assortment Kit 0Ω - 39Ω 25 Values*20
0603 5% Chip Resistors Assortment Kit 0Ω - 39Ω 25 Values*20
1.85
1.85

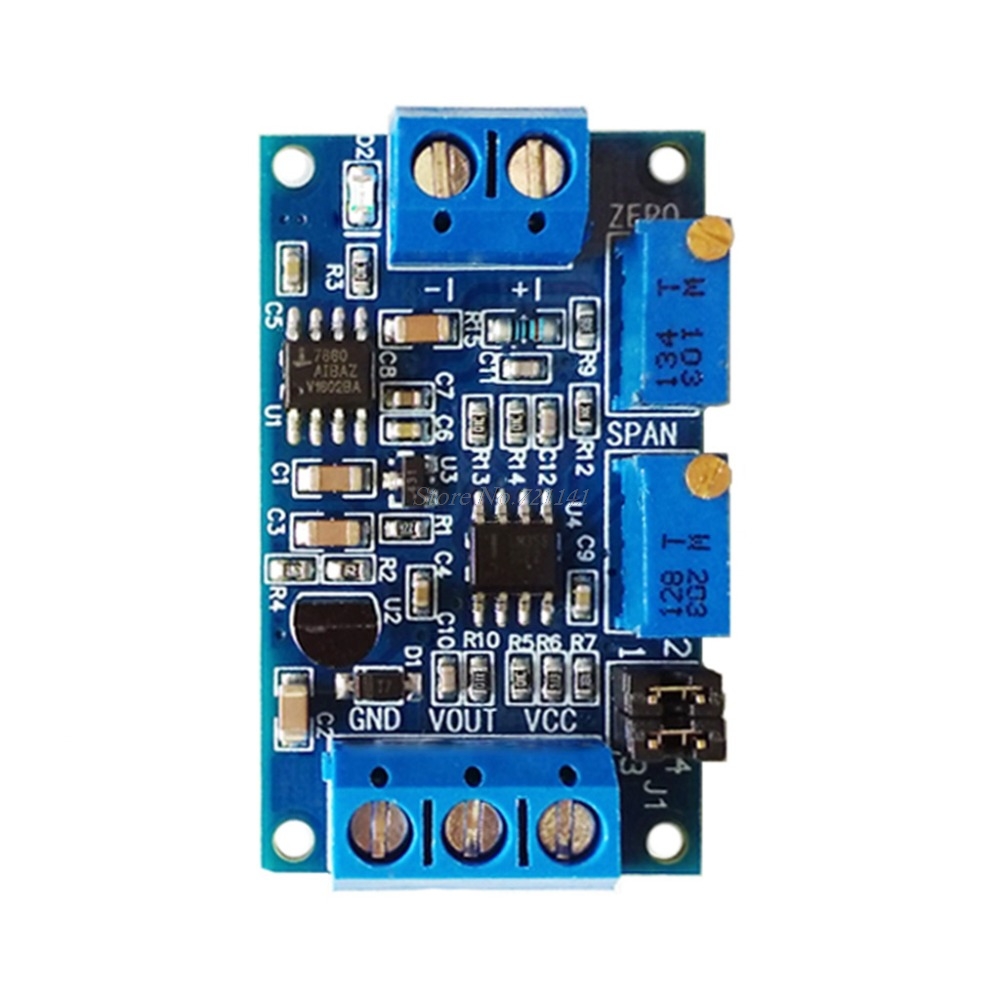

0/4-20mA To 0-3.3V/5V/10V Current to Voltage Module

https://www.satisled.com/web/image/product.template/6043/image_1920?unique=23c53c7
(0 review)

1.95 1.95 USD 1.95

¥ 13.86

Not Available For Sale


    This combination does not exist.


    Categories :
    Power Modules
    SKU :
    180598
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

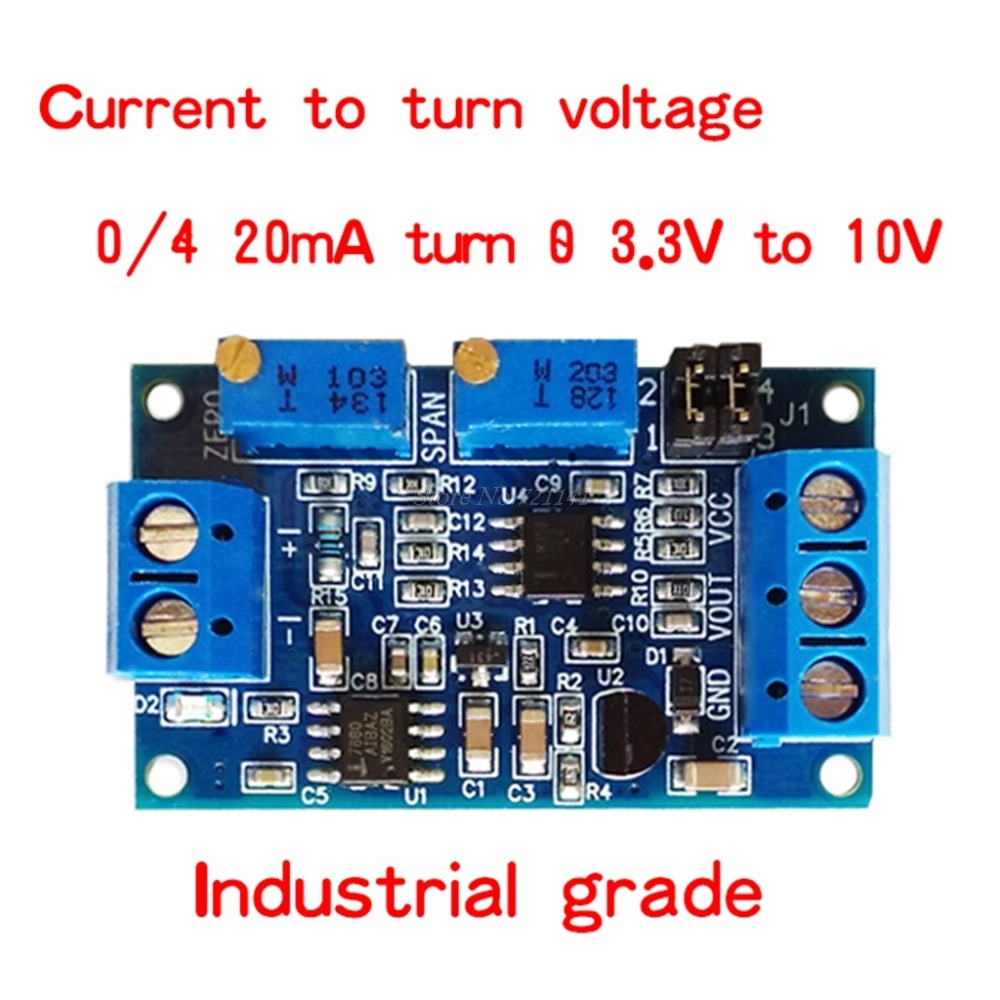

    Features:

    • Wide supply voltage range, the output voltage to support multiple ranges

    • Zero and range can be adjusted

    • High stability, good linearity, industrial grade

    • Current signal sampling resistor with high precision color ring resistance, high precision, temperature drift small, high power

    Instructions for use:

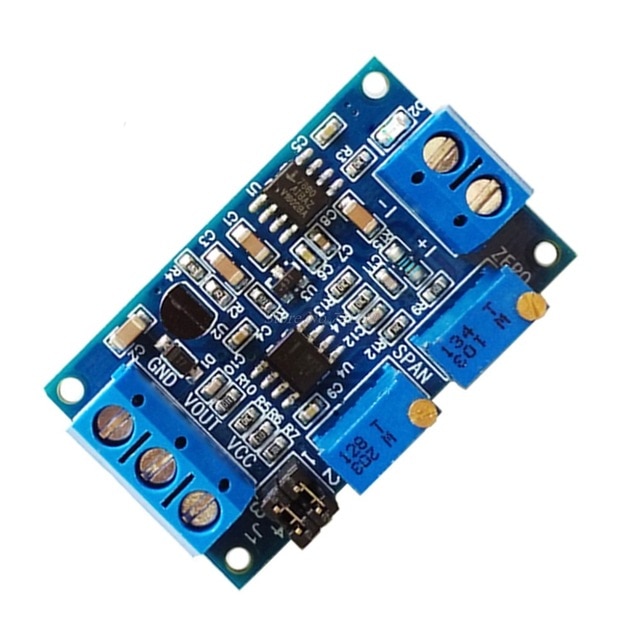

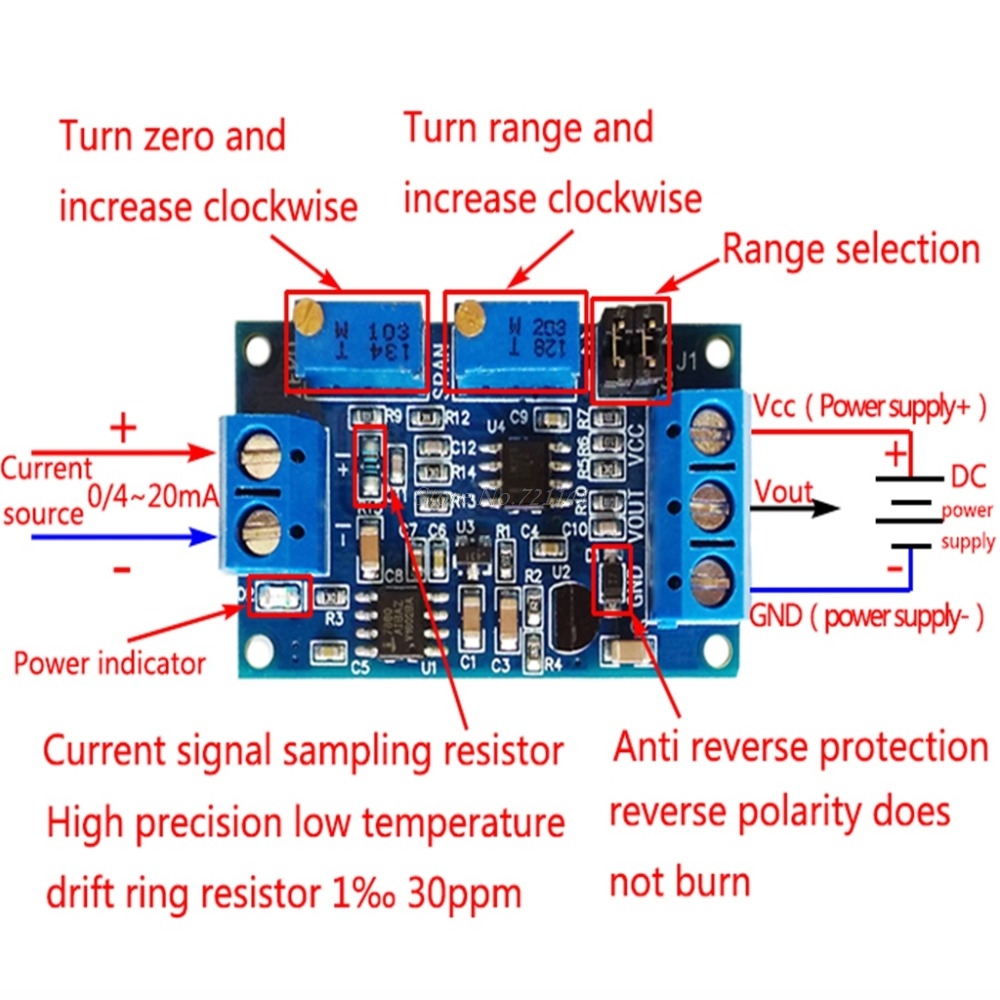

    • 1. Module according to the definition of wiring, power supply voltage 7-36V (if the output to 10V, the supply voltage must be greater than 12V)

    • 2. After power-up, the D2 indicator should be on, otherwise check the line connection. Board with reverse protection, reverse does not burn.

    • 3. When the current input is the minimum (0mA or 4mA), adjust the ZERO potentiometer so that the VOUT output is the minimum (0.0V or other voltage)

    • 4. When the current input is at maximum (20mA), adjust the SPAN potentiometer so that the VOUT output is the maximum (3.3V or 5V or 10V, the output can be as low as 2.5V when the input is 4-20ma)

    According to your needs, through the jumper cap to select the appropriate range:

    4--20ma:  0-2.5V range: J1 1,2 feet short, 3,4 feet shorted

                    0 - 3.3V range: J1 1,2 feet off, 3,4 feet off

                    0 - 5.0V range: J1 1,2 feet short, 3,4 feet shorted

                    0--10.0V range: J1 1,2 feet short, 3,4 feet off

    0--20ma: 0--3.3V range: J1 1,2 feet short, 3,4 feet shorted

                    0 - 5.0V range: J1 1,2 feet short, 3,4 feet shorted

                    0--10.0V range: J1 1,2 feet short, 3,4 feet off

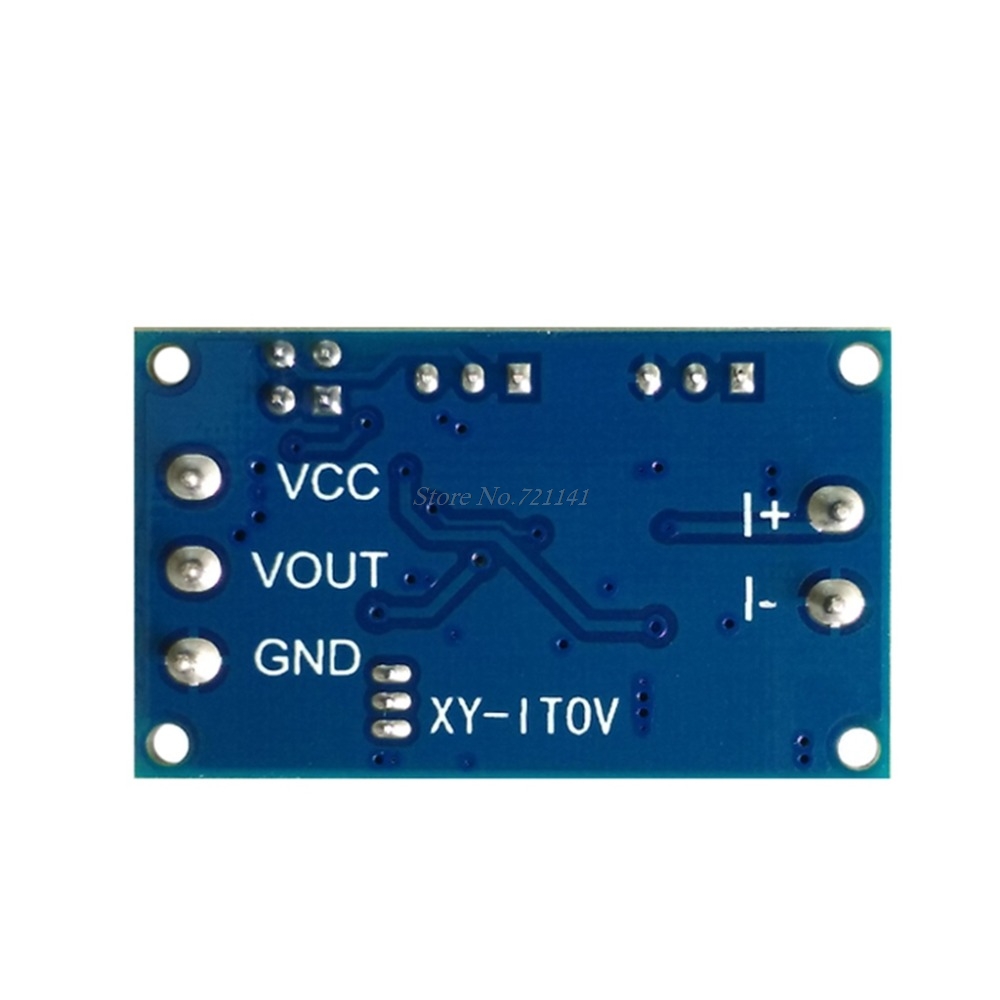

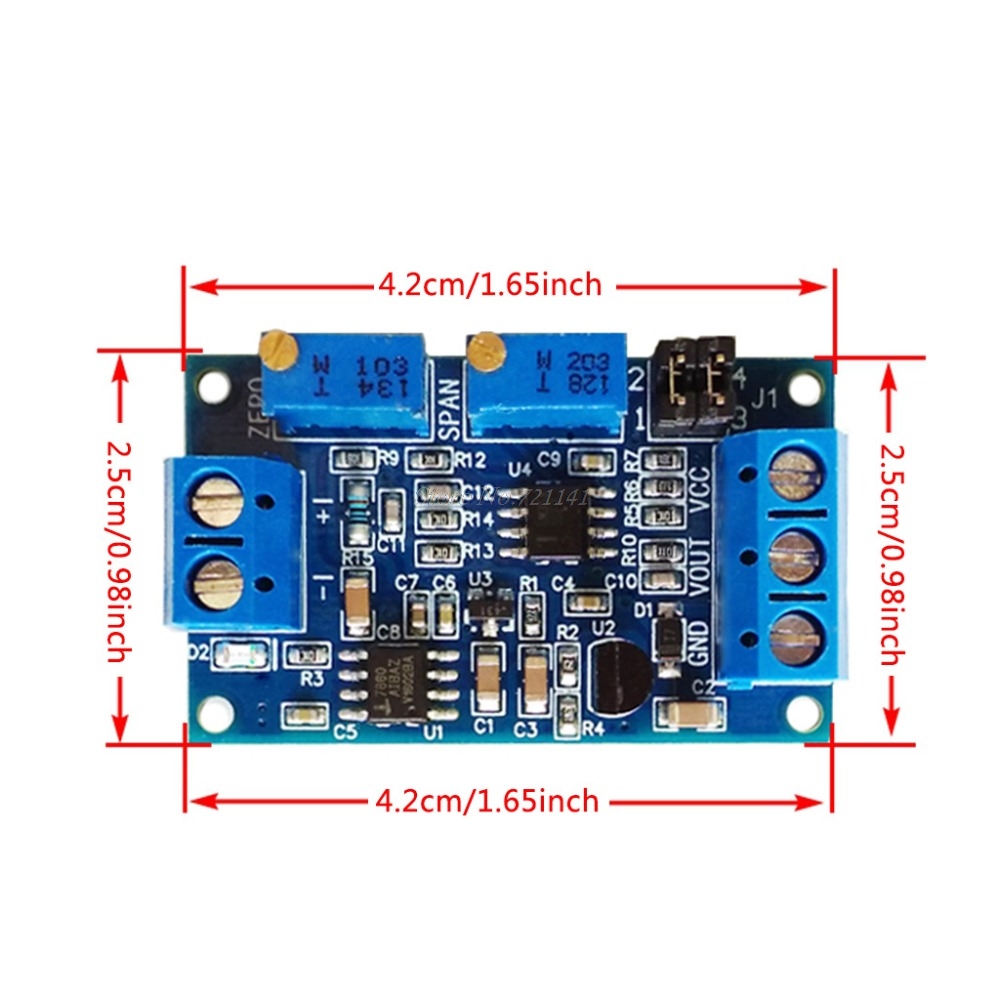

    Size: 4.2x2.5cm/1.65x0.98inch
