LM2596 LM2596S LED Voltmeter DC-DC Adjustable Step Down Power Supply Module

Price:

$ 3.74
Electronic Components Store for Everything!
USD
  2. Shop
  3. LM2596 LM2596S LED Voltmeter DC-DC Adjustable Step Down Power Supply Module
9W G4 G9 COB LED Halogen Bulb AC110V/220V Home Light LED Dimmable Silica Gel Lamp
9W G4 G9 COB LED Halogen Bulb AC110V/220V Home Light LED Dimmable Silica Gel Lamp
$ 2.44
$ 2.44
1-7/4-9/5-12/9-12/6-18/10-25*1W 300mA Constant Current LED Waterproof Boost Driver AC/DC12V/24V Input
1-7/4-9/5-12/9-12/6-18/10-25*1W 300mA Constant Current LED Waterproof Boost Driver AC/DC12V/24V Input
$ 2.77
$ 2.77

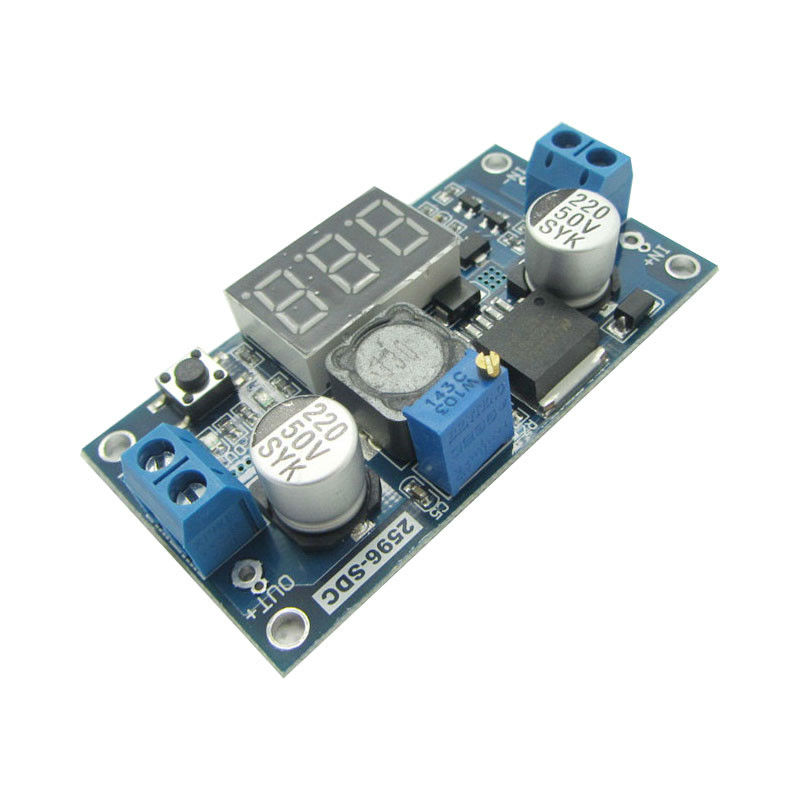

LM2596 LM2596S LED Voltmeter DC-DC Adjustable Step Down Power Supply Module

https://www.satistronics.com/web/image/product.template/3215/image_1920?unique=d27fcb4
(0 review)

$ 2.28 2.2800000000000002 USD $ 2.28

¥ 15.40

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Power Modules
    SKU :
    180626
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery
    You may also like
    MC34063A Reverse Voltage Module 3.6v-36v
    MC34063A Reverse Voltage Module 3.6v-36v
    $ 1.24 $ 1.24

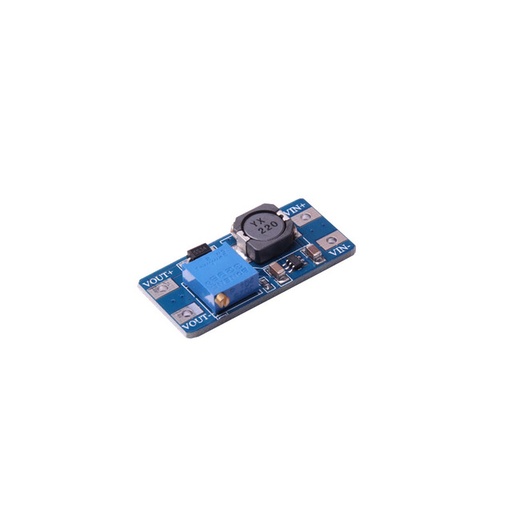

    MT3608 Booster Power Module Board for Arduino DIY Kit
    MT3608 Booster Power Module Board for Arduino DIY Kit
    $ 0.49 $ 0.49
    8V-35VTo 5V/8A DC-DC Power Supply Buck Module Support Android/iPhone Phone Fast Charging
    8V-35VTo 5V/8A DC-DC Power Supply Buck Module Support Android/iPhone Phone Fast Charging
    $ 5.21 $ 5.21
    VNH2SP 30 Monster Moto Shield Module for Arduino
    VNH2SP 30 Monster Moto Shield Module for Arduino
    $ 3.58 $ 3.58

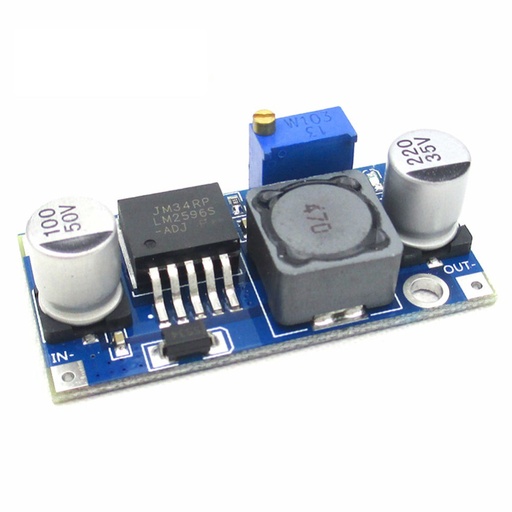

    3A 12/24V to 12/5/3.3V LM2596 LM2596S DC-DC Adjustable Step-down Power Supply Module
    3A 12/24V to 12/5/3.3V LM2596 LM2596S DC-DC Adjustable Step-down Power Supply Module
    $ 0.65 $ 0.65
    XL6009 Digital Boost Step Up Power Supply Module Adjustable 4.5-32V to 5-52V Step-up Voltage Regulator With LED Voltmeter
    XL6009 Digital Boost Step Up Power Supply Module Adjustable 4.5-32V to 5-52V Step-up Voltage Regulator With LED Voltmeter
    $ 3.74 $ 3.74

    Description:

    • Module Model:LM2596 Buck Converter + Voltmeter

    • Cutting Size: 66mm x 35mm

    • Input Voltage: DC 4.0~40V

    • Output Voltage: 1.25V~37V (continuously adjustable, the input voltage must be 1V higher than the output voltage)

    • Output Current: 2A(normal and stable), 3A Max.

    • Ripple Frequency: About 150Khz

    • Ripple Peak: About 100mV

    • Display Color: Red

    • Voltage Meter Error: ±0.1V

    • Measure Range:4~40V (for measure accurately, please ensure that the input voltage is more than 4V)

    • IN+: Input Postive

    • IN-: Input Negative

    • Out+: Output Postive

    • Out-: Ouput Negative

    Features:

    • A key switch input and output voltage

    • Green light: measuring the output voltage

    • Red light: measuring the input voltage

    • With terminal and retain the wire bonding wiring point

    ​
