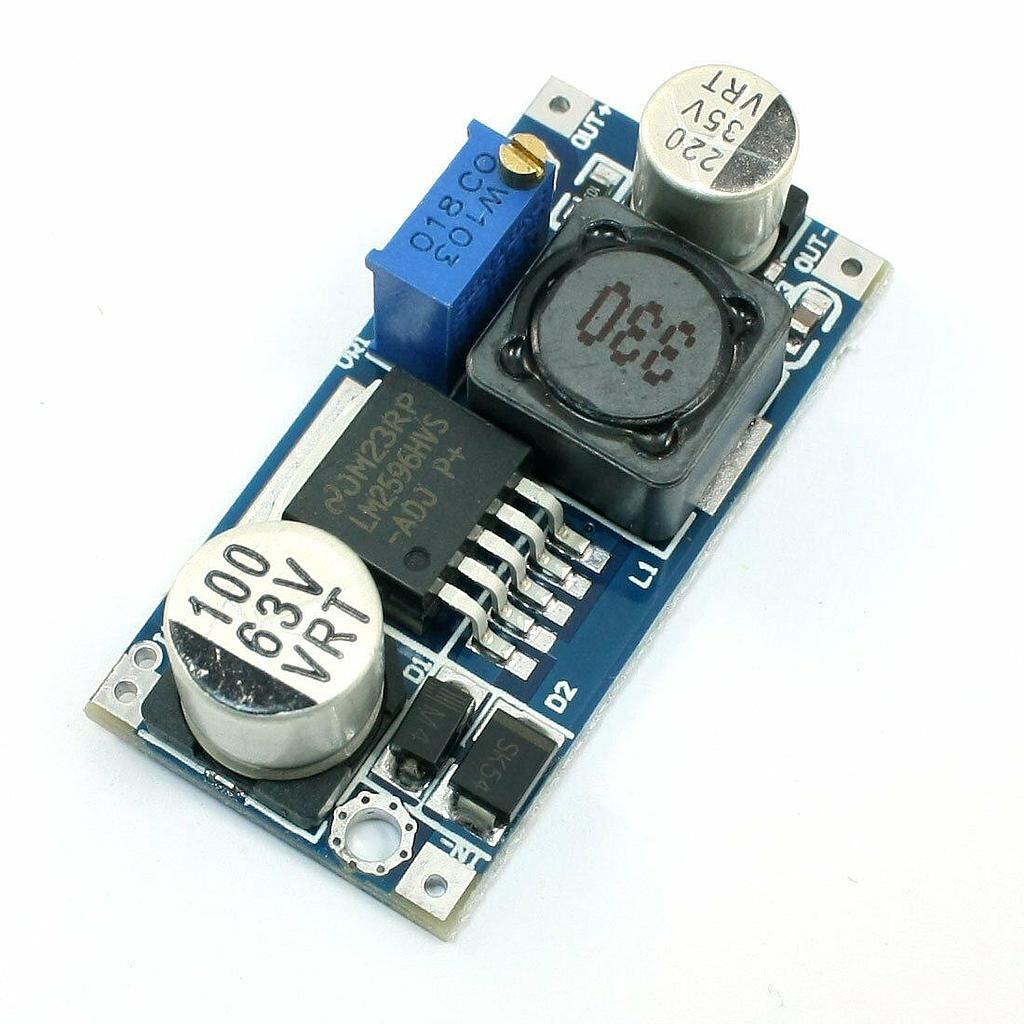

4.5-50V To 3-35V LM2596HVS DC-DC Adjustable Step Down Buck Converter Power Module

Price:

$ 0.30
USD
  2. Shop
  3. 4.5-50V To 3-35V LM2596HVS DC-DC Adjustable Step Down Buck Converter Power Module
10-30W LED COB Module LED COB Round Panel 60mm PCB 42mm Emitting Area Warm Natural White
10-30W LED COB Module LED COB Round Panel 60mm PCB 42mm Emitting Area Warm Natural White
$ 1.57
$ 1.57
4W High Power Imitation Lumen RGBW Led Eight Feet 30mil 40mil 45mil
4W High Power Imitation Lumen RGBW Led Eight Feet 30mil 40mil 45mil
$ 2.28
$ 2.28

4.5-50V To 3-35V LM2596HVS DC-DC Adjustable Step Down Buck Converter Power Module

https://www.satistronics.com/web/image/product.template/1145/image_1920?unique=3e3d1d1
(0 review)

$ 1.10 1.1 USD $ 1.10

¥ 7.70

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Power Modules
    SKU :
    180632
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery
    You may also like
    L298N H-Bridge Stepper Motor Driver Module for Arduino
    L298N H-Bridge Stepper Motor Driver Module for Arduino
    $ 1.45 $ 1.45

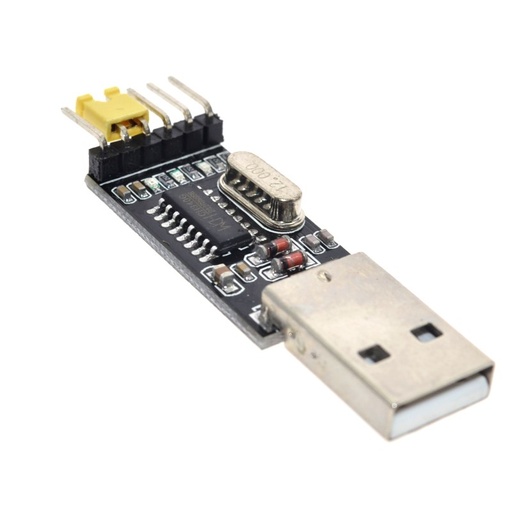

    Q32 CH340G Brush Board Module USB to TTL STC Microcontroller
    Q32 CH340G Brush Board Module USB to TTL STC Microcontroller
    $ 0.86 $ 0.86

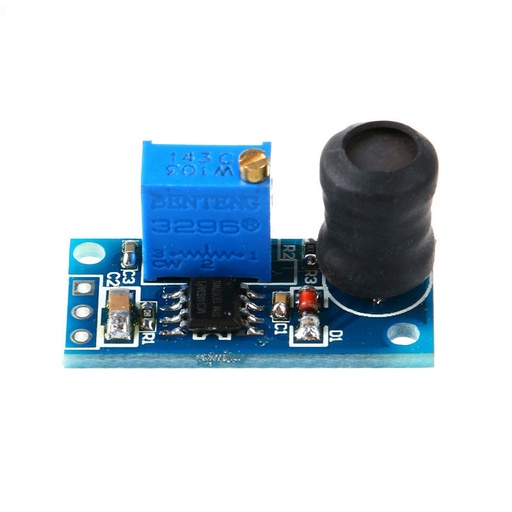

    MC34063A Reverse Voltage Module 3.6v-36v
    MC34063A Reverse Voltage Module 3.6v-36v
    $ 1.20 $ 1.20

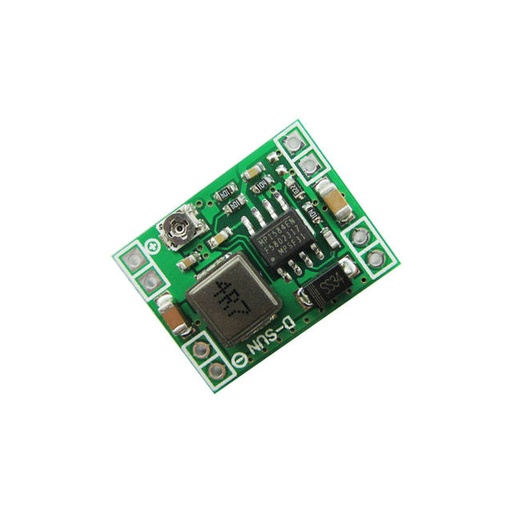

    3A MP1584EN DC-DC Step Down Power Supply Module for Arduino Replace LM2596
    3A MP1584EN DC-DC Step Down Power Supply Module for Arduino Replace LM2596
    $ 0.63 $ 0.63

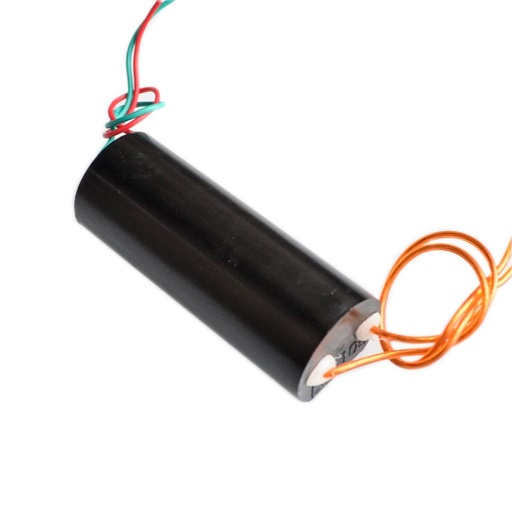

    DC Boost Step up Power High Voltage Generator Module 3V-6V 400kV
    DC Boost Step up Power High Voltage Generator Module 3V-6V 400kV
    $ 1.64 $ 1.64
    MT3608 2A DC-DC Step Up Power Apply Module/Booster Power Module
    MT3608 2A DC-DC Step Up Power Apply Module/Booster Power Module
    $ 0.30 $ 0.30

    Parameters:

    • Type /name:LM2596HVS DC-DC step-down module

    • Input Voltage:4.5V ~ 53V

    • Output Voltage:3V ~ 40V

    • Output Current:3A (max)

    • Conversion efficiency:92%(the highest)

    • Output Ripple:<30mV

    • Switching frequency:150KHz

    • Operating Temperature:-45 ° ~ +85 °

    • Size:43mm * 21mm * 14mm (L * W* H)

    • IN-IN + inputPositiveInput Negative!

    • Positive outputOUT +OUT-output negative

    • Input voltage range: DC4.5V to53V (inputvoltagemust be greater thanthe outputvoltageto1.5Vor morehigh.Could notboost)

    • Output voltage range: DC3Vto 40Vvoltage is continuously adjustable, high efficiency(up to 92%)the maximum outputcurrent of3A.

    • Measured12V input, 5Voutputcurrent is 1Aload regulationrate of less than1%

    • Note: This is thestep-down module, the input voltagemust behigher than the outputvoltage.

    • Outputcurrent is greater than2.5A (or outputpower greater than10W)to work long hours, please addheat sink.

    ​
