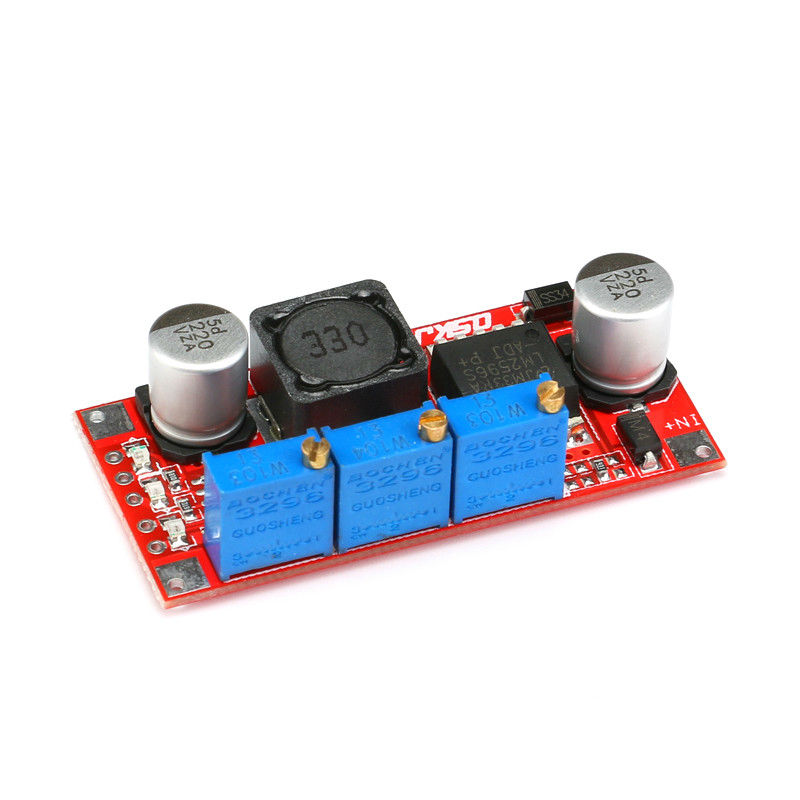

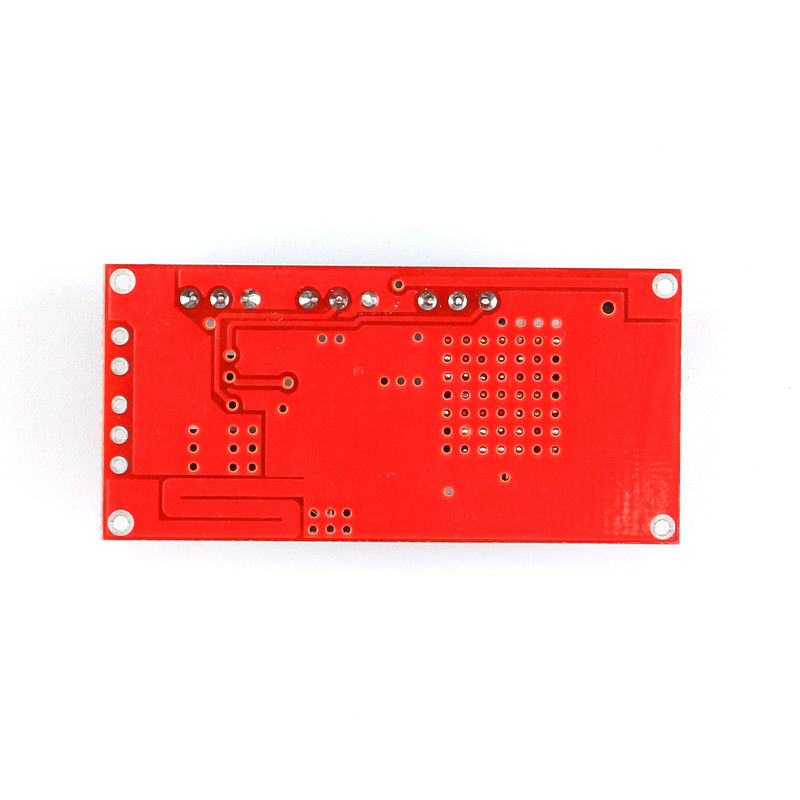

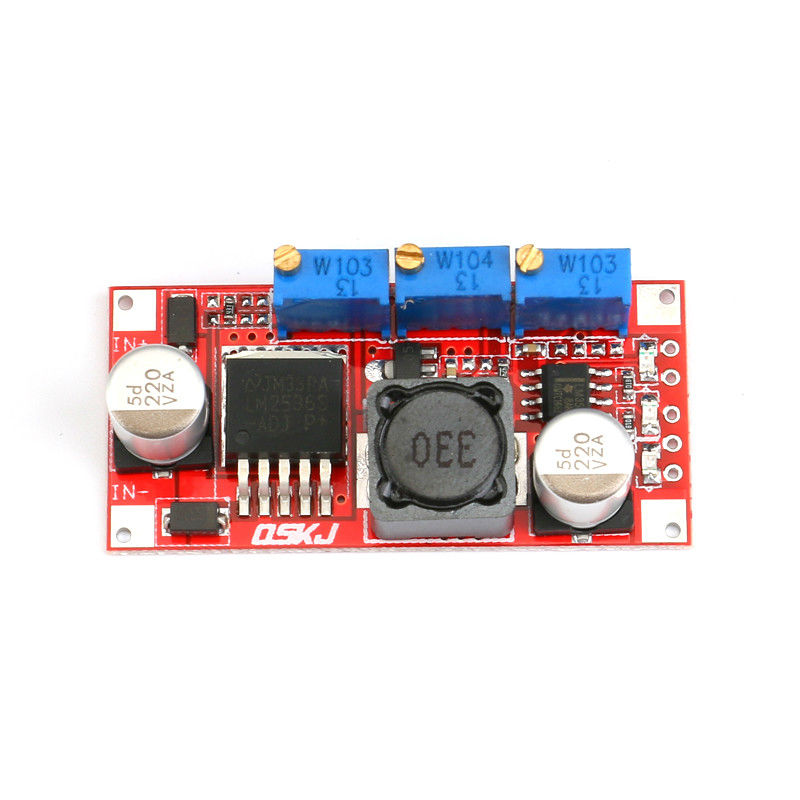

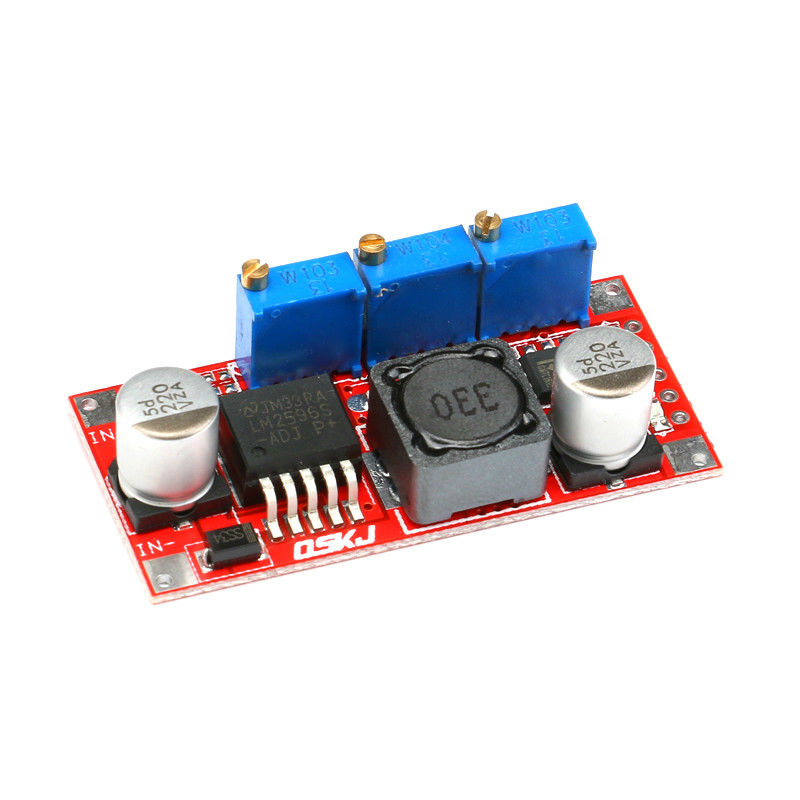

LM2596 DC-DC Step Down Power Supply Module / LED Driver Battery Charger Adjustable LM2596S Constant Current Voltage

https://www.satistronics.com/web/image/product.template/3214/image_1920?unique=99581fd
(0 review)

1.69 1.69 USD 1.69

¥ 12.10

Not Available For Sale


    This combination does not exist.


    Categories :
    Power Modules
    SKU :
    180642
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Description:

    • Input voltage: 7-35V

    • Output voltage: 1.25-30V adjustable

    • Dropout voltage: input voltage must be higher than output voltage of 2V

    • Output current: 0-3A, 3A maximum

    • Output power: 15W(If the temperature is high, please strengthen heat dissipation)

    • Conversion efficiency: 92% maximum (the higher the output voltage, the higher the efficiency)

    • Turn lamp current: constant current value * (1% -100%), turn lamp current and constant current value linkage, such as constant current value is 3A, turn the lamp current is set to 0.1 times that of the constant current (0.1 * 3 A = 0.1A), when the value of the constant current regulation into 2A, turn lamp current is 0.1 times that of the constant current (0.1 * 2A = 0.2A). The default shipment has to adjust to the 0.1 times

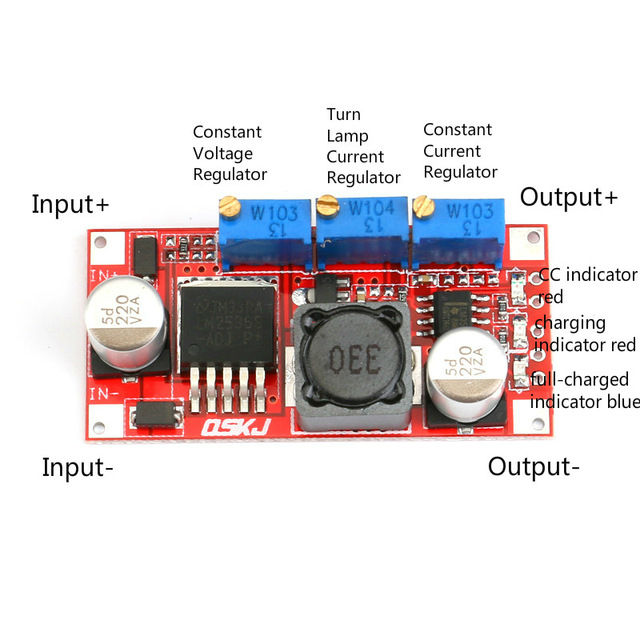

    Indicator light:

    • Constant current cc indicator light red,

    • Charging indicator light red,

    • Full-charged indicator light blue

    • The output ripple: 20M bandwidth (for reference only)

    • Input 12V output 5V 3A 60mV (MAX)

    • Working temperature: industrial grade (- 40 -- + 85 celsius degree) (when temperature is more than 40 degrees, please reduce power, or enhance heat dissipation)

    • Full load temperature rise: 45 celsius degree

    • No-load current: 10mA typical (12V to 4.2V)

    • Load regulation: ± 1%

    • Voltage regulation: ± 0.5%

    • Dynamic response speed: 5% 200uS

    • Output short circuit protection: yes, constant current (current setting constant current value)

    • Connection mode: can lead directly welding on the PCB

    Battery charging methods:

    • 1. Determine the float voltage and charging current that you need to charge battery and module's input voltage.

    • 2. Adjustable constant voltage potentiometer, the output voltage is regulated to about 5V.

    • 3.Use multimeter 10A current block measurement output short circuit current, meanwhile adjusting the constant current potentiometer to make output current reaches predetermined current value.

    • 4.The charging turn lamp current default is 0.1 times of charging current (current value ).If you need, adjust turn lamp current potentiometer please (generally do not adjust).

    • 5. Adjustable constant voltage potentiometer to make the output voltage to the floating charge voltage.

    • 6.Connect battery, to try charging (1, 2, 3, 4, 5 steps is the module input power, output no-load not connected to the battery).

    LED constant current driving use methods:

    • 1. Determine you need to drive LED operation current and maximum working voltage.

    • 2. Adjustable constant voltage potentiometer, the output voltage is regulated to about 5V.

    • 3.Use multimeter 10A current block measurement output short circuit current, meanwhile adjusting the constant current potentiometer to make output current reaches LED operating current.

    • 4.Adjustable constant voltage potentiometer to make the output voltage to the LED maximum working voltage.

    • 5.Connected to the LED, try test machine. (1, 2, 3, 4 steps is the module input power, output no-load not connected to the LED lamps).
