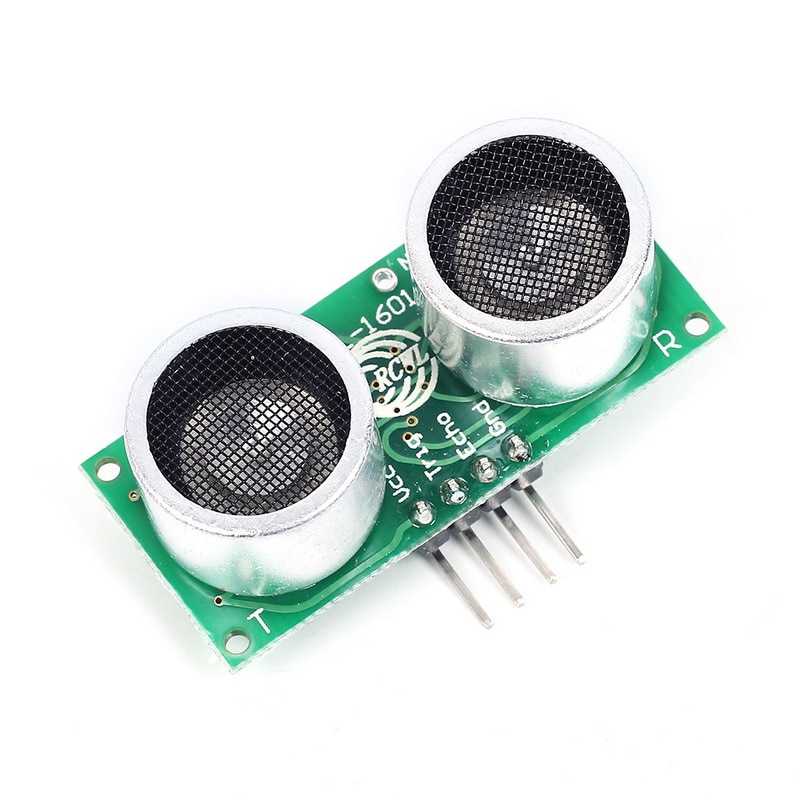

RCWL-1601 Ultrasonic Ranging Sensor Module Compatible HC-SR04 3V-5.5V

https://www.satistronics.com/web/image/product.template/4180/image_1920?unique=dd5600e
(0 review)

$ 1.10 1.1 USD $ 1.10

¥ 7.48

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Ultrasonic Sensor Modules
    SKU :
    180679
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery
    You may also like
    US-016 Analog Voltage Output Double Range Analog Ultrasonic Ranging Module 5V
    US-016 Analog Voltage Output Double Range Analog Ultrasonic Ranging Module 5V
    $ 1.95 $ 1.95
    KY-003 Hall Magnetic Sensor Module for Arduino AVR PIC
    KY-003 Hall Magnetic Sensor Module for Arduino AVR PIC
    $ 0.89 $ 0.89
    E18-D80NK Adjustable Infrared Obstacle Avoidance Detection Sensor
    E18-D80NK Adjustable Infrared Obstacle Avoidance Detection Sensor
    $ 2.07 $ 2.07
    125 KHZ EM4100 RFID card read module RDM630 (UART) compatible Arduino
    125 KHZ EM4100 RFID card read module RDM630 (UART) compatible Arduino
    $ 5.61 $ 5.61
    HY-SRF05 SRF05 Ultrasonic Ranging Module Ultrasonic Sensor
    HY-SRF05 SRF05 Ultrasonic Ranging Module Ultrasonic Sensor
    $ 1.40 $ 1.40
    Q28A KY-032 4pin Smart Car IR Infrared Obstacle Avoidance Sensor Module Switch lot(5 pcs)
    Q28A KY-032 4pin Smart Car IR Infrared Obstacle Avoidance Sensor Module Switch lot(5 pcs)
    $ 2.95 $ 2.95

    Description:

    • RCWL-1601 is a 3V-5.5V power supply open ultrasonic ranging module . The software is fully compatible with hC-SR04. It is with lead-free technology. 2cm ultra-small blind area, typical 4.5m most distant, 2.2mA ultra-low working current. It is smaller in size and has better accuracy than hC-SR04 for cotton and irregular body measurements.

    Features:

    • 1>. Professional ultrasonic ranging chip.
    • 2>. 3V-5.5V wide voltage power supply.
    • 3>. 2. 2mA working current.
    • 4>. 2cm minimum blind area.
    • 5>. The software is fully compatible with hc-sr04.
    • 6>. Shorter test cycle :50mS (hc-sr04 is 200mS)
    • 7>. 2 cm - 450 cm super wide measuring range (渕 flat walls)
    • 8>. Suitable for measuring cotton and irregular objects.
    • 9>. The size is 1.8cm X 4cm.
    • 10>. No lead process.
    • 11>. Environmental protection probe (certificate of environmental protection)
    • 12>. Working temperature: -10 Celsius to 90 Celsius

    ​
