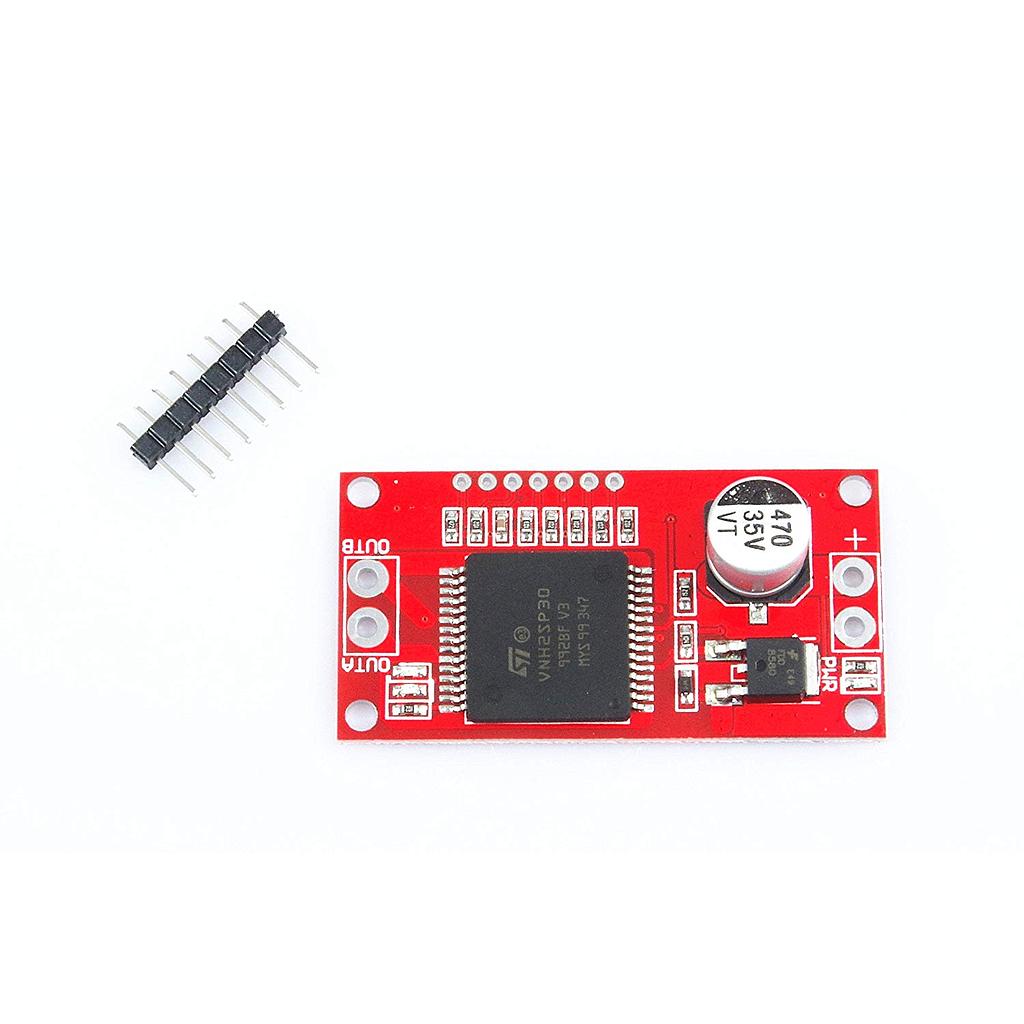

30A VNH2SP30 Stepper Motor Driver /Monster Moto Shield module

https://www.satistronics.com/web/image/product.template/989/image_1920?unique=3e3d1d1
(0 review)

$ 3.93 3.93 USD $ 3.93

¥ 27.50

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Stepper Motor Driver
    SKU :
    180778
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery
    You may also like
    4WD L293D Smart Motor Driver Module for Arduino
    4WD L293D Smart Motor Driver Module for Arduino
    $ 5.03 $ 5.03
    L298P Dual Channel Motor Driver Shield DC Stepper Driver Board For Arduino
    L298P Dual Channel Motor Driver Shield DC Stepper Driver Board For Arduino
    $ 3.57 $ 3.57
    28YBJ-48 / 28BYJ48 DC 5V Stepper motor
    28YBJ-48 / 28BYJ48 DC 5V Stepper motor
    $ 0.88 $ 0.88

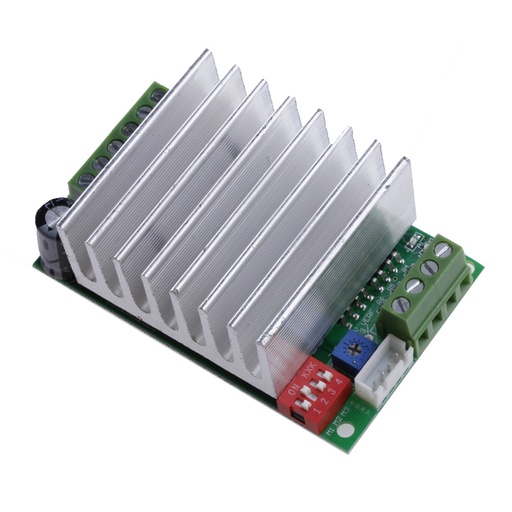

    10-45V TB6600 Hybrid Stepper Motor Driver /Single Axis Controller Modules
    10-45V TB6600 Hybrid Stepper Motor Driver /Single Axis Controller Modules
    $ 4.72 $ 4.72
    IR Infrared Slotted Optical Speed Measuring Sensor Detection Optocoupler Module For Motor Test
    IR Infrared Slotted Optical Speed Measuring Sensor Detection Optocoupler Module For Motor Test
    $ 0.80 $ 0.80
    Motor Robot Car Chassis Kit with Speed Encoder wheels and Battery Box
    Motor Robot Car Chassis Kit with Speed Encoder wheels and Battery Box
    $ 3.77 $ 3.77

    Description

    • This is essentially a ramped up version of our Ardumoto motor driver shield.

    • For this monster shield we've replaced the L298 H-bridge with a pair of VNH2SP30 full-bridge motor drivers.

    • We've also beefed up the support circuitry so this board is capable of driving a pair of high-current motors.

    • The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires.

    • Voltage max: 16V

    • Maximum current rating: 30 A

    • Practical Continuous Current: 14 A

    • Current sensing available to Arduino analog pin

    • MOSFET on-resistance: 19 mΩ (per leg)

    • Maximum PWM frequency: 20 kHz

    • Thermal Shutdown

    • Undervoltage and Overvoltage shutdown


    ​
