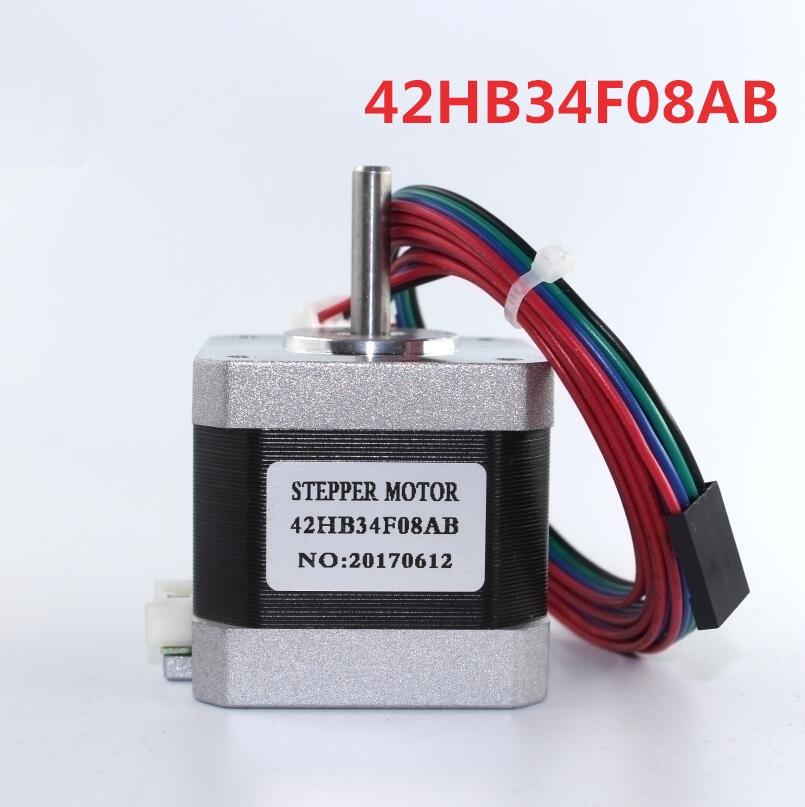

42HB34F08AB 3D Printer Dedicated Ball Screw Stepper Motor Module

Price:

$ 0.86
USD
  2. Shop
  3. 42HB34F08AB 3D Printer Dedicated Ball Screw Stepper Motor Module
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
$ 1.08
$ 1.08
10W 15W 20W 25W 30W LED COB Module LED COB Round Panel DC 30V 59.5mm PCB 42mm Emitting Area Warm/ Natural White /White
10W 15W 20W 25W 30W LED COB Module LED COB Round Panel DC 30V 59.5mm PCB 42mm Emitting Area Warm/ Natural White /White
$ 1.31
$ 1.31

42HB34F08AB 3D Printer Dedicated Ball Screw Stepper Motor Module

https://www.satistronics.com/web/image/product.template/1135/image_1920?unique=99581fd
(0 review)

$ 4.61 4.61 USD $ 4.61

¥ 33.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Stepper Motor Driver
    SKU :
    180781
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders
    You may also like
    L298N Motor Driver Control Board Module Dual H-bridge Stepper
    L298N Motor Driver Control Board Module Dual H-bridge Stepper
    $ 3.08 $ 3.08
    L298N Dual Channel DC Motor Driver Module 2.5A PWM Speed Control
    L298N Dual Channel DC Motor Driver Module 2.5A PWM Speed Control
    $ 1.17 $ 1.17
    2WD speed measuring module intelligent tracking trolley counter counting module 2 road motor speed measurement
    2WD speed measuring module intelligent tracking trolley counter counting module 2 road motor speed measurement
    $ 2.77 $ 2.77
    HG7881 HG7881CP 2 Channel DC Stepper Motor Controller Driver Module
    HG7881 HG7881CP 2 Channel DC Stepper Motor Controller Driver Module
    $ 0.84 $ 0.84
    3.5A Dual Channel DC Stepper Motor Driver Module
    3.5A Dual Channel DC Stepper Motor Driver Module
    $ 3.84 $ 3.84
    A4988 3D Printer Reprap Stepper Motor Driver Module with Heat Sink
    A4988 3D Printer Reprap Stepper Motor Driver Module with Heat Sink
    $ 0.86 $ 0.86

    Description

    • Brand: Model: 42BYGH / HMB

    • Rated power: 200 (W)

    • Product Type: 2-phase hybrid stepper motor

    • Rated current: 1.7 (A)

    • Rated speed: 0-900 (rpm)

    • Rated torque: 3.5 (NM)

    • Dimensions: 42 * 40 (mm)

    • Product Certification: ce

    • Scope: textile machinery, engraving machine, embroidery machine, automation equipment and other industries

    • Efficiency: 100 (%)

    Brandmodelrated powerproduct typeRated voltageRated currentRated speedRated torqueDimensionscertified productApplicable scopeeffectiveness

    • 42BYGH / HMB

    • 200 (W)

    • 2 phase hybrid stepping motor

    • 220 (V)

    • 1.7 (A)

    • 0-900 (rpm)

    • 3.5 (NM)

    • 42 * 40 (mm)

    • Ce

    • Textile machinery, engraving machine, embroidery machine, automation equipment and other industries

    • 100 (%)

    • 42BYGH / HMB(1.9°/0.8°)2phase

    • SERIES HYBRID STEPPING MOTOR (Hybrid stepper motor)

    • General SpecifictionsDetailed description):

    • Step Accuracy: ±5%

    • Temperature Rise: 80°CMax

    • Ambient temperature range: -20°C-+50°C

    • Insulation Resistance: 100MMin.500VC DC

    • Dielectric Strength: 500V AC 1 minute

    • The above is only representative of the product,Derived products can be produced according to customer requirements
