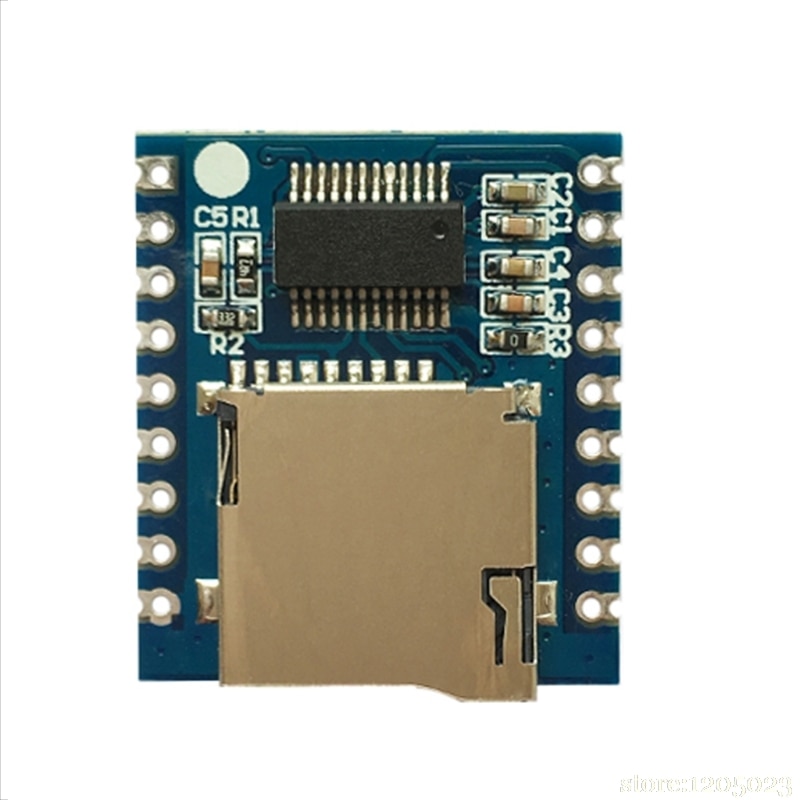

XY-V17B Serial Control Voice Module / SD/TF Card MP3 Sound Module

https://www.satistronics.com/web/image/product.template/5564/image_1920?unique=d27fcb4
(0 review)

$ 2.44 2.44 USD $ 2.44

¥ 16.50

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Other Modules
    SKU :
    180805
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery
    You may also like
    KY-031 B24 Knock Sensor Module Switch for Arduino Raspberry Pi
    KY-031 B24 Knock Sensor Module Switch for Arduino Raspberry Pi
    $ 0.89 $ 0.89
    XD-09 USB to NRF24L01 Module Communication Acquisition Module
    XD-09 USB to NRF24L01 Module Communication Acquisition Module
    $ 2.51 $ 2.51
    ISD1820 Sound Voice Recording Playback Module PCB Board With Sound Audio Microphone
    ISD1820 Sound Voice Recording Playback Module PCB Board With Sound Audio Microphone
    $ 1.85 $ 1.85
    DS1302 Serial Real Time Clock RTC with Battery for Arduino and Raspberry Pi
    DS1302 Serial Real Time Clock RTC with Battery for Arduino and Raspberry Pi
    $ 1.48 $ 1.48
    PLCC32 to DIP32 Programmer Adapter IC Socket Converter Module
    PLCC32 to DIP32 Programmer Adapter IC Socket Converter Module
    $ 1.18 $ 1.18
    GA6 A6 Mini GPRS GSM Wireless Extension Board Module for Arduino Better than SIM800L
    GA6 A6 Mini GPRS GSM Wireless Extension Board Module for Arduino Better than SIM800L
    $ 7.32 $ 7.32

    Description

    • Support MP3,WAV decoding format.

    • Support three configuration IO mode selection.

    • Support sampling rate (KHz):8/11.025/12/16/22.05/24/32/44.1/48.

    • 24-bit DAC output, dynamic range support 90dB,SNR support 85dB.

    • Fully supports FAT16/FAT32 file system, maximum support 32G TF card,support 32G U disk.

    • Support UART serial control voice broadcast function,you can control the play, pause,selection song,volume addition and subtraction and other functions,the largest song selection 65535 tracks,baud rate 9600 bit/s.

    • Support IO trigger function,8 IO ports trigger 8 tracks individually or 8 IO ports to trigger 255 tracks.

    • Support One_line single-bus serial port control, can control the play, pause,selection,volume addition and subtraction functions.

    Specifications:

    • IO0/UART_TX: Input pin IO0 in IO trigger mode; TX pin in UART control mode

    • IO1/UART_RX: Input pin IO1 in IO trigger mode; RX pin in UART control mode

    • IO2: IO trigger mode input pin IO2

    • IO3: IO trigger mode input pin IO3

    • IO4/ONE_LINE: IO trigger mode input pin IO4; One_Line one-wire serial control mode data transmission pin

    • IO5: IO trigger mode input pin IO5

    • IO6: IO trigger mode input pin IO6

    • IO7: IO trigger mode input pin IO7

    • GND: Ground

    • CON1: Mode Configuration Pin 1

    • CON2: Mode Configuration Pin 2

    • CON3/BUSY: Mode Configuration Pin 3; Busy Signal Output, Play Music Output High, Pause Music Output Low

    • USB_DM: USB DM signal

    • USB_DP: USB DP signal

    • VDD/5V: Module Supply, 3.3-5V Voltage Input Pin

    • 3.3V: LDO 3.3V Output Pin, Maximum Output Current 100mA

    • DACL: audio left channel output

    • DACR: Audio Right Channel Output

    • Size:2.6x2.3cm/1.02x0.91inch

    ​
