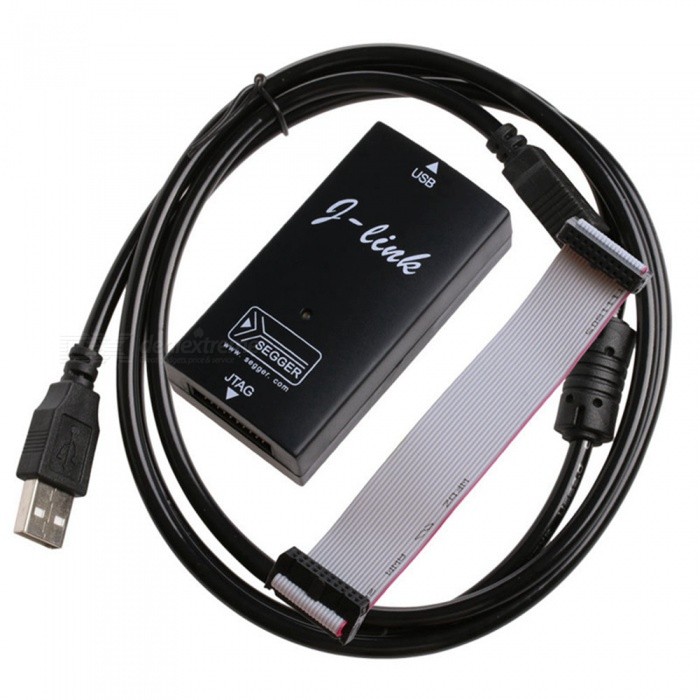

JLINK V9 / LINK ARM emulator support A9 A8 V9.4 high-speed download speed

Description:

• J-Link is a USB powered JTAG emulator supporting a large number of CPU cores.

• Based on a 32-bit RISC CPU, it can communicate at high speed with the supported target CPUs. J-Link is used around the world in tens of thousand places for development and production (flash programming) purposes.

• J-Link is supported by all major IDEs such as IAR EWARM, Keil MDK, Rowley CrossWorks, Atollic TrueSTUDIO, IAR EWRX, Renesas HEW, Renesas e2studio, and many others.

• Including all models, more than 100,000 J-Links have been sold so far, making J-Link probably the most popular emulator for ARM cores and the de-facto standard.

Features

• Direct download into flash memoryof most popular microcontrollers supported

• Supported CPUs: Any ARM7/9/11, Cortex-A5/A8/A9, Cortex-M0/M1/M3/M4, Cortex-R4, RX100/RX200/RX610/RX621/RX62N/RX62T/RX630/RX631/RX63N

• Download speed up to 1 MByte/second

• Supportsunlimited breakpointsin flash memory!1More info...

• Setting breakpoints inexternalflash memory of Cortex-M systems is possible with

• J-Link'sUnlimited Flash Breakpointstechnology only!

• Supported by all major IDEsMore info...

• Supports concurrent access to CPU by multiple applications3

• Crossplatform support (runs on Windows, Linux, Mac OS X)4

• Intelligence in the emulator firmwareMore info...

• Remote Server included. Allows using J-Link remotely via TCP/IPMore info...

• GDBServer includedMore info...

• Production flash programming software (J-Flash) availableMore info...

• Software Developer Kit (SDK) availableMore info...

• Supports multiple target interfaces: JTAG, SWD

• Supports SWV/SWO (Serial Wire Viewer / Serial wire output)

• Wide target voltage range: 1.2V - 3.3V, 5V tolerant

• Supports JTAG chains with multiple devices

• Embedded Trace Buffer (ETB) support

• Various target adapters available, including optical isolation adapter.

• RDI interface DLL available.More info...

• Fully plug and play compatible

• No power supply required, powered through USB

• Support for adaptive clocking

• All JTAG signals can be monitored, target voltage can be measured

• Target power supply: J-Link can supply up to 300 mA to target with overload protection
