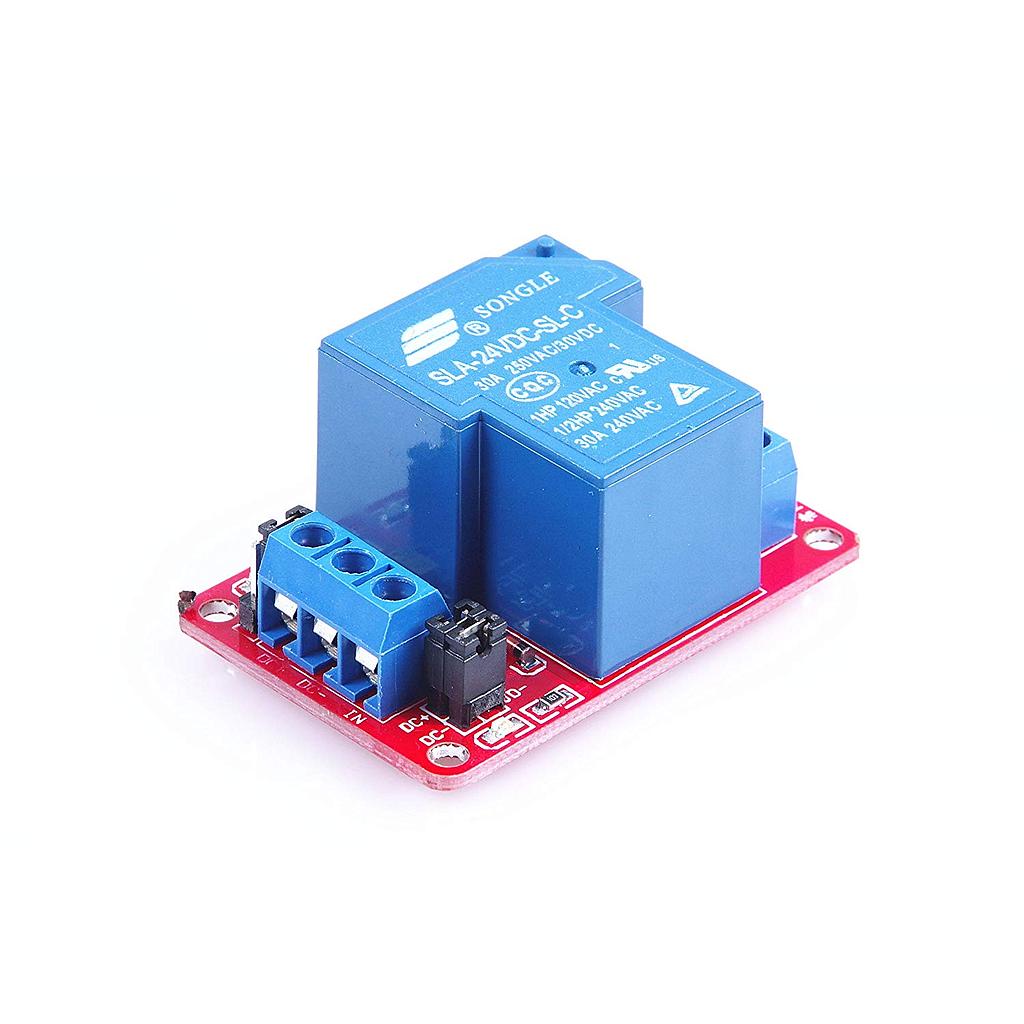

1 Channel Relay Module DC 30A 250V with Optocoupler Isolation Support High-level Triggered

Parameters:

• Relay version: 24V.

• Quiescent Current: 5mA.

• Maximum current: 50mA.

• Trigger current: 2 ~ 4mA.

• Trigger voltage (high level): 8.5 ~ 24V.

• Maximum load: AC 250V / 30A, DC 30V / 30A.

• Module size: 50mm * 33mm * 24mm (L * W * H).

• Product Weight: 36g.

• There are four mounting bolts holes, hole 3.1mm, spacing 44.5mm * 27.5mm.

• Module Interface Description:

• DC +: positive module DC power supply (positive terminal voltage trigger)

• DC-: DC power supply module negative electrode (anode terminal voltage trigger)

• IN: Signal triggering end (default trigger the same voltage as power supply)

• JD +: positive voltage relay control terminal

• JD-: relay control terminal voltage of the negative

• DC + and JD + with jumpered, DC- and JD- with jumpered, the same trigger terminal and relay control terminal voltage

• High and low trigger mode selection, when the jumper is connected to L side, IN terminal is low trigger connection with the H for the high end trigger

• Normally closed terminal (NC): relay normally closed terminal

• Common terminal (COM): relay common

• Normally open (NO): normally open relay
