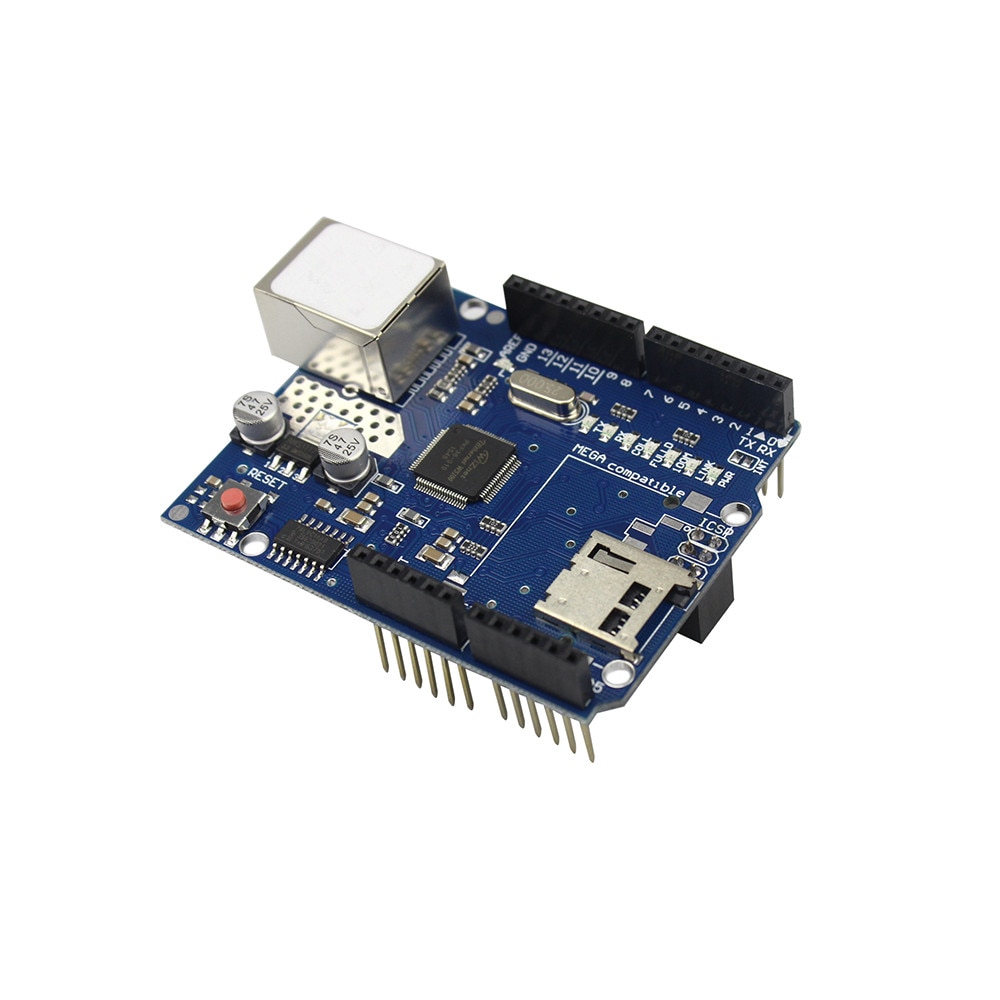

Shield Ethernet Shield W5100 R3 UNO Mega 2560 1280 328 UNR R3 Development Board
Categories :
Arduino Shield & ModuleSKU :
181141
100% original guarantee
Return within 30days
Free delivery on all orders
You may also like
W25Q64 64Mbit 8MByte Flash Storage Module SPI Interface
$ 1.12 $ 1.12
KY-016 RGB 3 Color Full Color LED Module for Arduino
$ 0.31 $ 0.31
Description:
Ethernet W5100 network expansion module, can become a simple Web server or a network control to read and write digital and analog interface and other network applications. IDE can be used directly in the Ethernet library files can be achieved with a simple Web server.
Meanwhile, the version supports mini SD card (TF card) reader
The expansion board uses a stackable design, it can be directly plugged into the , while our other expansion boards can also plug in to.
Code:
/ *
* Web Server
*
* A simple web server that shows the value of the analog input pins.
* /
#include
byte mac [] = {0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED};
byte ip [] = {192, 168, 0, 15};
Server server (80);
void setup ()
{
Ethernet.begin (mac, ip);
server.begin ();
}
void loop ()
{
Client client = server.available ();
if (client) {
// An http request ends with a blank line
boolean current_line_is_blank = true;
while (client.connected ()) {
if (client.available ()) {
char c = client.read ();
// If we've gotten to the end of the line (received a newline
// Character) and the line is blank, the http request has ended,
// So we can send a reply
if (c == '\ n' && current_line_is_blank) {
// Send a standard http response header
client.println ( "HTTP / 1.1 200 OK");
client.println ( "Content-Type: text / html");
client.println ();
// Output the value of each analog input pin
client.print ( "welcome to tinyos");
client.println ( "
");
client.print ( "// *************************************");
client.println ( "
");
client.print (www.tinyos.net.cn);
client.println ( "
");
client.print ( "// *************************************");
client.println ( "
");
for (int i = 0; i
client.print ( "analog input");
client.print (i);
client.print ( "is");
client.print (analogRead (i));
client.println ( "
");
}
break;
}
if (c == '\ n') {
// We're starting a new line
current_line_is_blank = true;
} Else if (c! = '\ R') {
// We've gotten a character on the current line
current_line_is_blank = false;
}
}
}
client.stop ();
}
}
