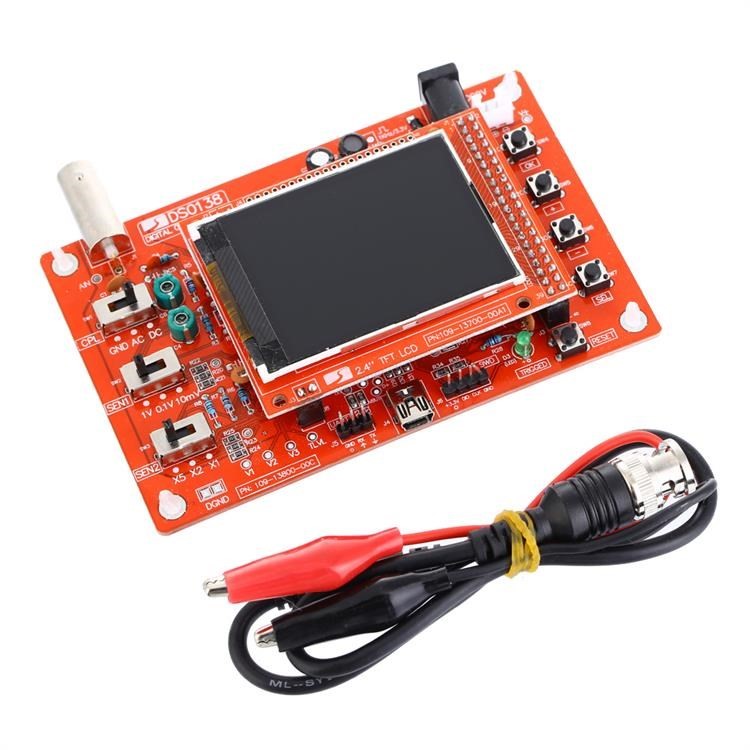

Fully Welded Assembled DSO138 2.4" TFT Digital Oscilloscope (1Msps) + Probe B1

Description

• This is Welded(Assembled), can use directly.

• DSO138 oscilloscope production suite features:

• Training for electronic production , complete detailed descriptive information , like schematics , instructions, etc., making a high success rate .

• Component species diversity for students to identify elements , inline elements welding, soldering SMD components training.

• Students can get in at the same time making a practical tool for audio, video synchronization , low-frequency switching power supply , infrared receiver transmitter signal waveform and many other occasions, effectively observed and measured , increased interest in learning, improve learning outcomes .

• Kits using ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4 -inch color TFT display can be used as test ARM development board .

• Available source , the ability of a friend can be secondary development kit based on , for example, it can be changed to Millivoltmeter , data loggers , and so on .

• Circuit is simple , reliable , inexpensive

Performance index

• Maximum real-time sampling rate : 1Msps

• Accuracy : 12Bit

• Sampling buffer depth : 1024 bytes

• Analog bandwidth : 0 - 200KHz

• Vertical Sensitivity : 10mV / Div - 5V / Div ( 1-2-5 progressive manner )

• Adjustable vertical displacement , and with instructions

• Input impedance : 1MΩ

• Maximum input voltage : 50Vpp (1: 1 probe ), 400Vpp (10: 1 probe )

• Coupling modes include DC / AC / GND

• The horizontal time base range : 10μs / Div - 50s / Div ( 1-2-5 progressive manner )

• With automatic, regular and one-shot mode , easy to capture the moment waveform

• Available rising or falling edge trigger

• Adjustable trigger level position , and with instructions

• Observable trigger waveform before ( negative delay )

• Can freeze at any time waveform display (HOLD function )

• Comes 1Hz /3.3V square wave test signal source

Package includes:

• 1 x DSO138 Digital Oscilloscope
