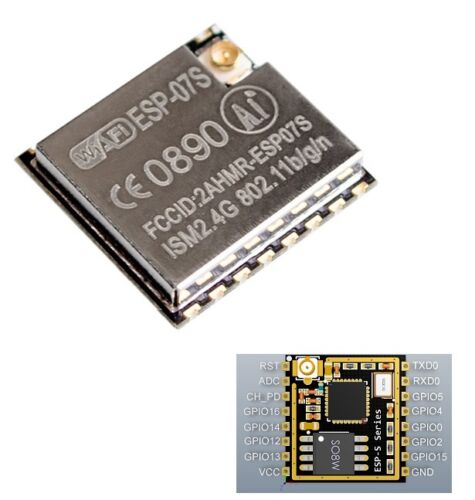

ESP8266 ESP-07S Serial to WIFI Transceiver Wireless Module LWIP AP+STA

Features:

• Support 802.11 b/g/n standard

• Built-in Tensilica L106 low power consumption 32 bit MCU,primary frequency supports 80 MHz and 160 MHz,support RTOS

• Built-in 10 bit high-precision ADC

• Built-in TCP/IP protocol stack

• Built-in TR switch,balun,LNA,power amplifier and matching network

• Built-in PLL,AVR and power management component,802.11b mode +20dBm output power

• A-MPDU,A-MSDU polymerization and 0.4s guard interval

• WiFi 2.4 GHz,support WPA/WPA2 security mode

• Support AT remote upgrade and cloud OTA upgrade

• Support STA/AP/STA+AP operating mode

• Support Smart Config function (include Android and iOS device)

• HSPI,UART,I2C,I2S,IR Remote Control,PWM,GPIO

• Deep sleep holding current is 10uA,power off current is less than 5uA

• Within 2ms awakening,connect and transfer data package

• Standby state power consumption is less than 1.0 mW (DTIM3)

• Operating Temperature Range:-40℃~125℃

Pin Definition:

• RST:reset module

• ADC:A/D conversion result,input voltage range is 0-1V;value range:0?1024

• CH_PD:high level operate;low level module power off

• GPIO16:connect with RST pin can achieve deep sleep awakenning

• GPIO14:HSPI_CLK

• GPIO12:HSPI_MISO

• GPIO13:HSPI_MOSI; UART0_CTS

• VCC:3.3V power supply

• GND:GND

• GPIO15:MTDO;HSPICS;UART0_RTS

• GPIO2:UART1_TXD

• GPIO0:GPIO0

• GPIO4:GPIO4

• GPIO5:GPIO5

• RXD0:UART0_RXD;GPIO3

• TXD0:UART0_TXD;GPIO1
