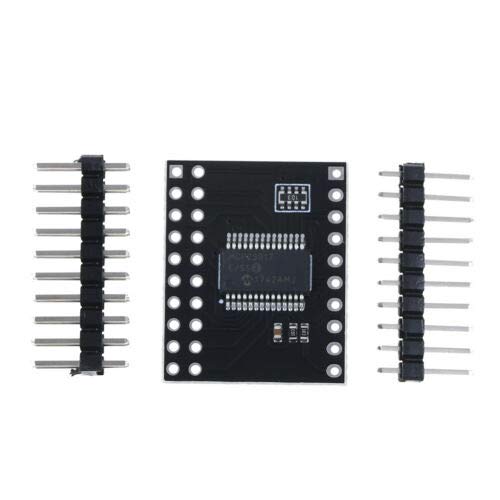

MCP23017 Bidirectional 16-Bit I/O Expander with I2C IIC Serial Interface Module
Categories :
Interface ICsSKU :
1940970
100% original guarantee
Return within 30days
Worldwide Fast delivery
You may also like
Intersil ISL3152EIBZ-T TXRX ESD 5V RS-485/422 8SOIC
$ 0.59 $ 0.59
MAXIM MAX487ESA+T Chip SOIC-8 RS-422/RS-485
$ 1.11 $ 1.11
NXP TJA1041T SOIC-14 Chip Bus CAN Transceiver
$ 1.35 $ 1.35
TI SN65HVD3082EDR SOP-8 RS-485 Interface Chip SMD
$ 0.31 $ 0.31
NXP PCA82C250T/YM SOP-8 Bus CAN Transceiver 4.5V to 5.5V
$ 0.84 $ 0.84
Features:
16-Bit Remote Bidirectional I/O Port: I/O pins default to input
High-Speed I2C Interface (MCP23017): 100kHz, 400kHz, 1.7MHz
High-Speed SPI Interface (MCP23S17): 10 MHz (maximum)
Three Hardware Address Pins to Allow Up to Eight Devices On the Bus ConfigurableInterrupt Output Pins: Configurable as active-high, active-low or open-drain
INTA and INTB Can Be Configured to Operate Independently or Together Configurable Interrupt Source: Interrupt-on-change from configured register defaults or pin changes
Polarity Inversion Register to Configure the Polarity of the Input Port Data
External Reset Input
Low Standby Current: 1 μA (max.)
Operating Voltage: 1.8V to 5.5V @ -40°C to +85°C; 2.7V to 5.5V @ -40°C to +85°C; 4.5V to 5.5V @ -40°C to +125°C
