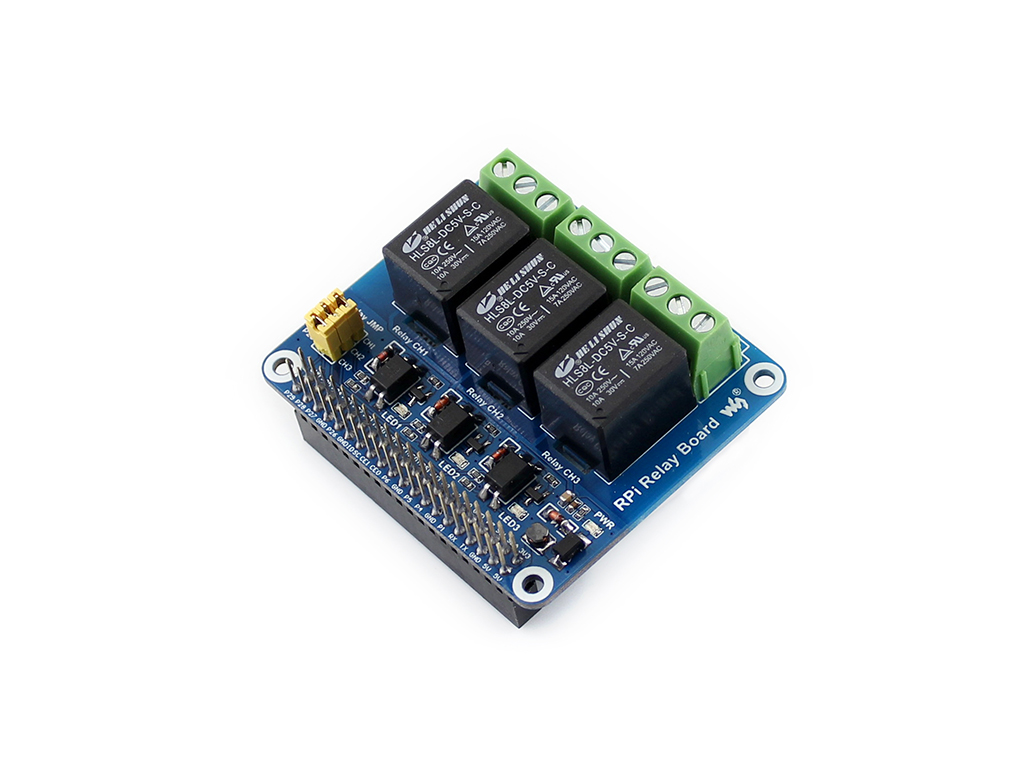

Raspberry Pi Relay Board Power Relay Expansion Module for RPi A+/B+/2B/3B/3B+

https://www.satistronics.com/web/image/product.template/6310/image_1920?unique=d27fcb4
(0 review)

$ 22.18 22.18 USD $ 22.18

¥ 150.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Raspberry Pi Accessories
    SKU :
    1940999
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery
    You may also like
    Raspberry PI Camera fixator Adjustable Pi Camera Mount
    Raspberry PI Camera fixator Adjustable Pi Camera Mount
    $ 0.81 $ 0.81
    Camera FFC Cable Line 15CM for Raspberry Pi Zero Module
    Camera FFC Cable Line 15CM for Raspberry Pi Zero Module
    $ 1.46 $ 1.46
    NB-IoT / eMTC / EDGE / GPRS / GNSS HAT for Raspberry Pi Based on SIM7000E
    NB-IoT / eMTC / EDGE / GPRS / GNSS HAT for Raspberry Pi Based on SIM7000E
    $ 38.45 $ 38.45
    Real Time Clock Module for Raspberry Pi 3
    Real Time Clock Module for Raspberry Pi 3
    $ 3.25 $ 3.25
    Case for Raspberry Pi 2 Model B Raspberry Pi 3 Model B+(Black /White /Red/Blue/Black)
    Case for Raspberry Pi 2 Model B Raspberry Pi 3 Model B+(Black /White /Red/Blue/Black)
    $ 7.39 $ 7.39
    Aluminum Heat Sink w/ Copper 3Pcs Cooling Sinks for Raspberry Pi 3/2 Model B/B+
    Aluminum Heat Sink w/ Copper 3Pcs Cooling Sinks for Raspberry Pi 3/2 Model B/B+
    $ 1.33 $ 1.33

    Features

    • Supports Raspberry Pi A+/B+/2B/3B/3B+

    • High quality relays, loads up to 250VAC/5A, 30VDC/5A

    • Photo coupling isolation, prevent interference from high voltage circuit

    • Onboard LEDs for indicating relays status

    • Relay control jumper, allows to control the relays by custom pins other than the default pins

    • Comes with development resources, including examples in wiringPi, WebioPi, shell, python, and bcm2835

    What's on the RPi Relay Board

    • Raspberry Pi Expansion Board on board resource

    • Raspberry Pi GPIO interface: for connecting Raspberry Pi

    • Relay screw terminal: for connecting target devices

    • Relays

    • Photocoupler: PC817

    • Relay indicator

    • LED on: relay NC is opened, NO is closed

    • LED off: relay NC is closed, NO is opened

    • Power indicator

    • Relay control jumper

    • short the jumper: control the relays by default I/Os used in the example code

    • open the jumper: control the relays by custom I/Os through jumper wires

    ​
