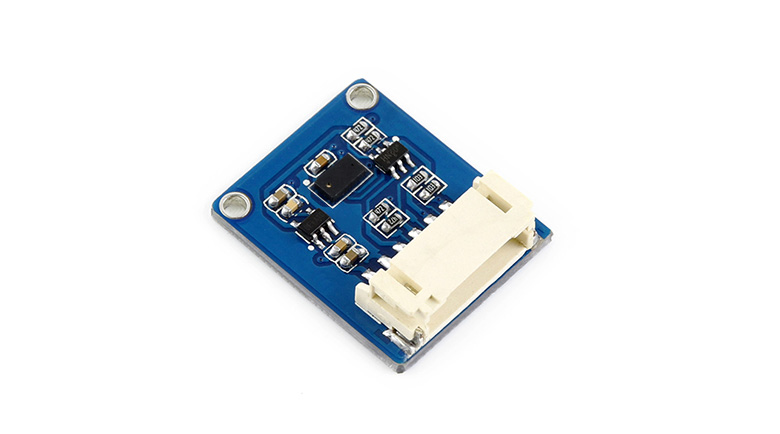

VL53L0X ToF Distance Ranging Sensor 2m I2C use for Raspberry Pi Mobile Robot

https://www.satistronix.com/web/image/product.template/6315/image_1920?unique=99581fd
(0 review)

14.61 14.61 USD 14.61

¥ 106.00

Not Available For Sale


    This combination does not exist.


    SKU :
    1941004
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Description:

    • VL53L0X Distance Sensor is a Time-of-Flight (ToF) ranging module based on the VL53L0X from ST, with accurate ranging up to 2m, it is controlled through I2C interface, and pretty low power consumption.

    • The VL53L0X is a ToF sensor which embeds the ST’s second generation FlightSense patented technology.

    • Unlike conventional ranging sensors, the VL53L0X is able to provide accurate distance measurement whatever the target color and reflectance, achieves better anti-interference capability.

    Features

    • I2C communication interface, control the module on/off via IO pins

    • Onboard voltage translator, compatible with 3.3V/5V operating voltage

    • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

    Specifications

    • Operating voltage: 3.3V/5V

    • Dimension: 20mm × 24mm

    • Mounting holes size: 2.0mm

    • Ranging distance: 30 ~ 2000mm

    • Ranging accuracy: ±5% (high speed mode), ±3% (high accuracy mode)

    • Ranging time (min): 20ms (high speed mode), 200ms (high accuracy mode)

    • Field of view: 25°

    • Laser wavelength: 940nm

    • Operating temperature: -20 ~ 70°C

    Applications

    • Mobile robot (fast distance ranging, obstacle detecting, wall tracking)

    • User detection to power on/off and lock/unlock devices like personal computers/laptops/tablets

    • 1D gesture recognition

    • Camera (autofocus enhancement in low light, video focus tracking assistance)

    Pinouts

    • VCC: 3.3V/5V power input

    • GND: ground

    • SDA: I2C data pin

    • SCL: I2C clock pin

    • SHUT: shutdown control, connects to IO pin

    • INT: interrupt output, connects to IO pin

    Package Contents

    • VL53L0X Distance Sensor x1

    • PH2.0 6PIN wire 20cm x1
