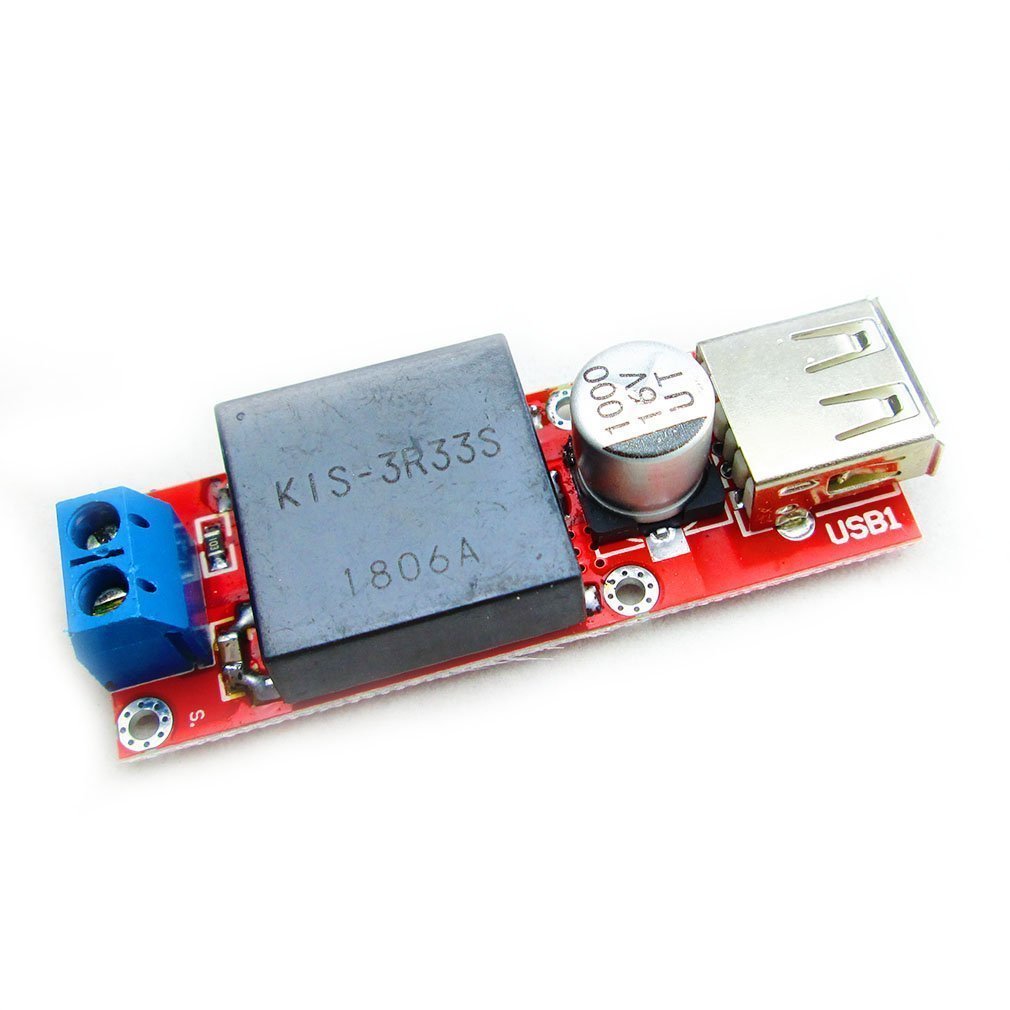

KIS3R33S DC7V-24V to 5V 3A USB Step Down Module for Arduino

Price:

$ 0.37
USD
  2. Shop
  3. KIS3R33S DC7V-24V to 5V 3A USB Step Down Module for Arduino
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
$ 1.08
$ 1.08
10W 15W 20W 25W 30W LED COB Module LED COB Round Panel DC 30V 59.5mm PCB 42mm Emitting Area Warm/ Natural White /White
10W 15W 20W 25W 30W LED COB Module LED COB Round Panel DC 30V 59.5mm PCB 42mm Emitting Area Warm/ Natural White /White
$ 1.32
$ 1.32

KIS3R33S DC7V-24V to 5V 3A USB Step Down Module for Arduino

https://www.satistronics.com/web/image/product.template/6324/image_1920?unique=99581fd
(0 review)

$ 1.54 1.54 USD $ 1.54

¥ 11.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Power Modules
    SKU :
    1941014
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders
    You may also like
    L298N H-Bridge Stepper Motor Driver Module for Arduino
    L298N H-Bridge Stepper Motor Driver Module for Arduino
    $ 1.42 $ 1.42
    A67 DC Step Up Power PCB Board Module 1-5V To 5V For Arduino
    A67 DC Step Up Power PCB Board Module 1-5V To 5V For Arduino
    $ 0.65 $ 0.65
    4WD L293D Smart Motor Driver Module for Arduino
    4WD L293D Smart Motor Driver Module for Arduino
    $ 4.93 $ 4.93
    5A XL4005 DC-DC Adjustable Step-down Power Supply Module
    5A XL4005 DC-DC Adjustable Step-down Power Supply Module
    $ 1.54 $ 1.54
    L293D Motor Control Shield Motor Drive Expansion Board for Arduino
    L293D Motor Control Shield Motor Drive Expansion Board for Arduino
    $ 1.88 $ 1.88

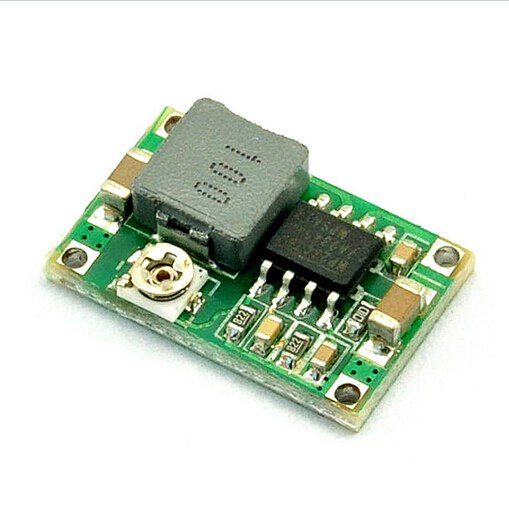

    Mini-360 Aircraft Step-Down DC Power Supply On-Board Power Replace Modules Better Than LM2596
    Mini-360 Aircraft Step-Down DC Power Supply On-Board Power Replace Modules Better Than LM2596
    $ 0.37 $ 0.37

    Parameters:

    • Modules nature: non-isolated Buck.

    • Rectification: Non-synchronous rectification.

    • Input voltage: DC 7- 24V.

    • Output voltage: DC 5V.

    • Output current: 3A (max).

    • Conversion efficiency: 96% (MAX).

    • Switching frequency: 340KHz.

    • Output ripple: 30mV (max).

    • Load regulation: ± 0.5%.

    • Voltage regulation: ± 2.5%.

    • Operating Temperature: -40 ° C to +85 ° C.

    • With Overcurrent Protection.

    • Size: 60*21*14 mm.
