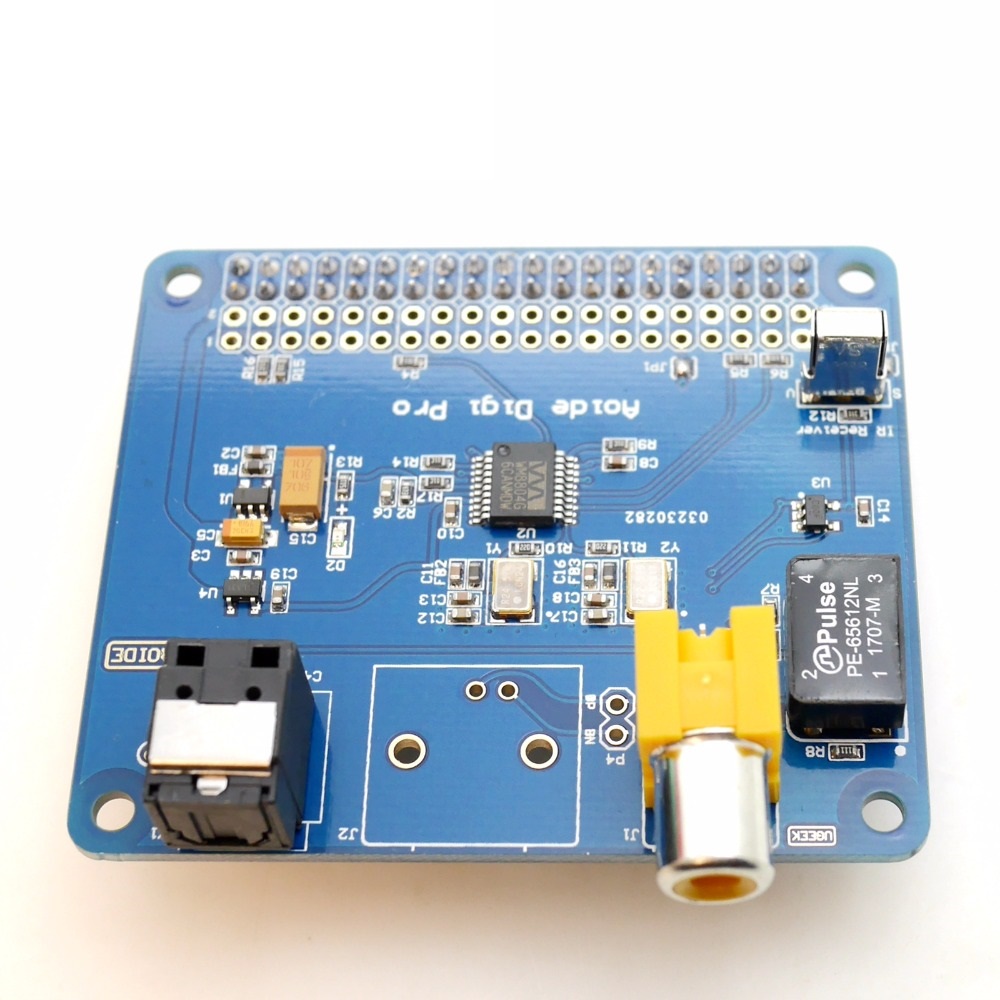

AOIDE HIFI DiGi Pro Digital Sound Card for Raspberry pi 3 Model B

Features:

• Dedicated Wolfson WM8804G digital chip and S/PDIF interface chip supports up to 192kHz/24bit resolution

• Dual low-jitter oscillators used for clock generation

• Two separate oscillators for 44.1 and 48kHz provide the optimal clock frequencies for all sample rates.

• Full galvanic isolation between the Raspberry Pi and your DAC on the electrical output

• Bit-perfect output, audio data stream will not be modified in any way

• Gold plating PCB board, arc wire PCB design reduce the signal reflection and refraction.

• The output port use optical and coaxial two output interface, convenient for the user to connect an external amplifier

• Integrated infrared receiving function, more convenient to control the playback when network is unavailable

• The board conforms to the Raspberry Pi hardware-attached-on-top (HAT) specification. Connects directly to the Raspberry Pi just plug in, no soldering required

• Compatible with Raspberry Pi Model A+\ B+\ 2B\ 3B and Zero

• Directly powered from the Raspberry Pi, no additional power supply necessary

• Support access to all GPIO.

• Include spacers to fix the board onto the Raspberry Pi

• Option to add a BNC connector or gold-plated electrical RCA output(need user soldering on the board or place order on soldering service)

Package Included:

• 1 pcs * DIGI Pro Sound card
