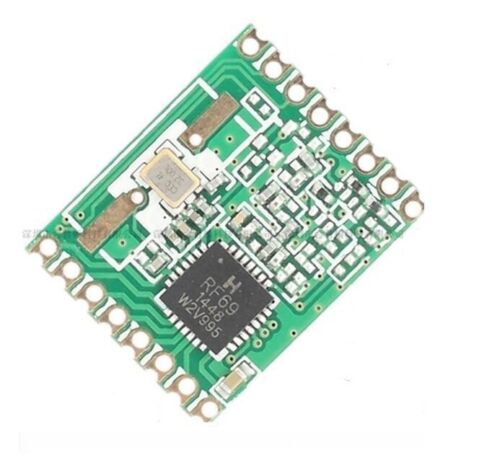

RFM69HW 868Mhz +20dBm HopeRF Wireless Transceiver (RFM69HW-868S2)for Remote

Description:

        The RFM69HW is a high-power, highly integrated RF transceiver capable of operation over a wide frequency range, including the 433, 868 and 915 MHz license-free ISM (Industry Scientific and Medical) frequency bands.Its highly integrated architecture allows for a minimum of external components whilst maintaining maximum design flexibility. All major RF communication parameters are programmable and most of them can be dynamically set. The RFM69HW offers the unique advantage of programmable narrow-band and wide- band communication modes without the need to modify external components. The RFM69HW is optimized for low power consumption while offering high RF output power and channelized operation.

Features:

• +20 dBm  100mW  Power Output Capability

• High Sensitivity: down to -120 dBm at 1.2 kbps

• High Selectivity: 16-tap FIR Channel Filter

• Low current: Rx = 16 mA, 100nA register retention

• Programmable Pout: -18 to +20 dBm in 1dB step

• Constant RF performance over voltage range of chip

• FSK Bit rates up to 300 kb/s

• Fully integrated synthesizer with a resolution of 61 Hz

• FSK, GFSK, MSK, GMSK and OOK modulations

• Built-in Bit Synchronizer performing Clock Recovery

• 115 dB+ Dynamic Range RSSI

• Automatic RF Sense with ultra-fast AFC

• Packet engine with CRC-16, AES-128, 66-byte FIFO

• Built-in temperature sensor
