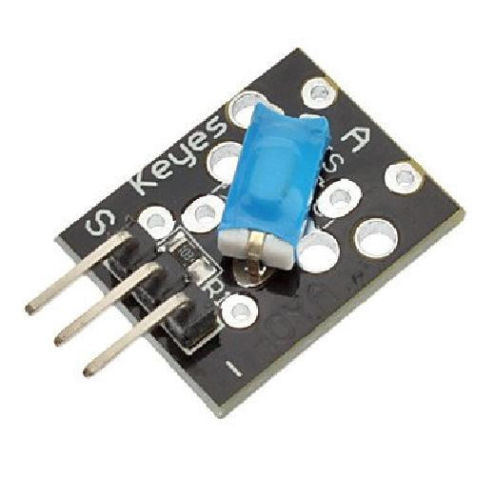

KY-020 Tilt Switch Module for Arduino AVR PIC

Description

• Tilt switch module and a digital interface, built-in 13 LED build a simple circuit to produce tilt warning lamp 13 comes with digital interfaces of the LED,

• the tilt switch sensor interface to access digital 3,when the tilt open Off sensor senses a key signal, LED lights, otherwise off.

• Routines source code:

• int Led = 13 ;// define LED Interface

• int buttonpin = 3; // define the tilt switch sensor interfaces

• int val ;// define numeric variables val

•  void setup()

• pinMode(Led, OUTPUT) ;// define LED as output interface

• pinMode(buttonpin, INPUT) ;// define the output interface tilt switch sensor

• void loop

• val = digitalRead(buttonpin) ;// digital interface will be assigned a value of 3 to read val

•  if(val == HIGH) // When the tilt sensor detects a signal when the switch, LED flashes

•  digitalWrite(Led, HIGH);

•  else

• digitalWrite(Led, LOW);

Package Included:

• 1 X KY-020 Tilt Switch Sensor Module
