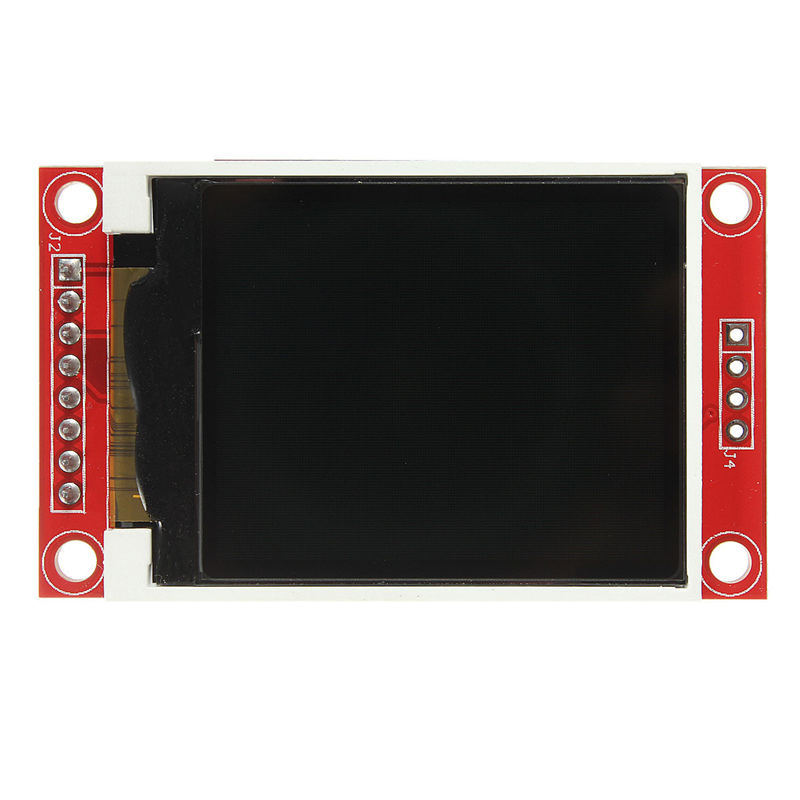

1.8 inch TFT LCD ST7735S Display Module128x160 51/AVR/STM32/AR​M 8/16 bit

Description

• Size: 1.8 inch

• Resolution:128 * 160

Instructions

• Program default IO connections:

• sbit LCD_CS = P0 ^ 0; Chip Select

• sbit LCD_RS = P0 ^ 2; data / command switch

• sbit LCD_SDA = P1 ^ 5; Data

• sbit LCD_SCK = P1 ^ 7; Clock

• sbit LCD_REST = P0 ^ 1; Reset

Features:

• TFT Power: Screen Power is 2.8-3.3V; remember not to use 5V

• (Modules with PCB\'s have inherited 3V regulator I C, you can enter 5V)

• Backlight power supply (LED pin): 3.2V maximum backlight power

• (At 3.3V supply can be connected in series for 10 ohm current limiting resistor in series with 100 ohms or 5V

• Resistance).

• Data port level: theoretically can not let the data port level exceeds 3.3V, if you must

• IO connection with 5V microcontroller data bus, as tft internal voltage clamp, with

• Can be used, but is not  standard. You can do an experiment to test a sample batch

• Made product, in order to improve product stability, better use of low-voltage monolithic

• Machine or add a level converter I C.

Package included：

• 1 x 1.8 inch 1.8" TFT LCD Display module ST7735S 128x160 51/AVR/STM32/ARM 8/16 bit W
