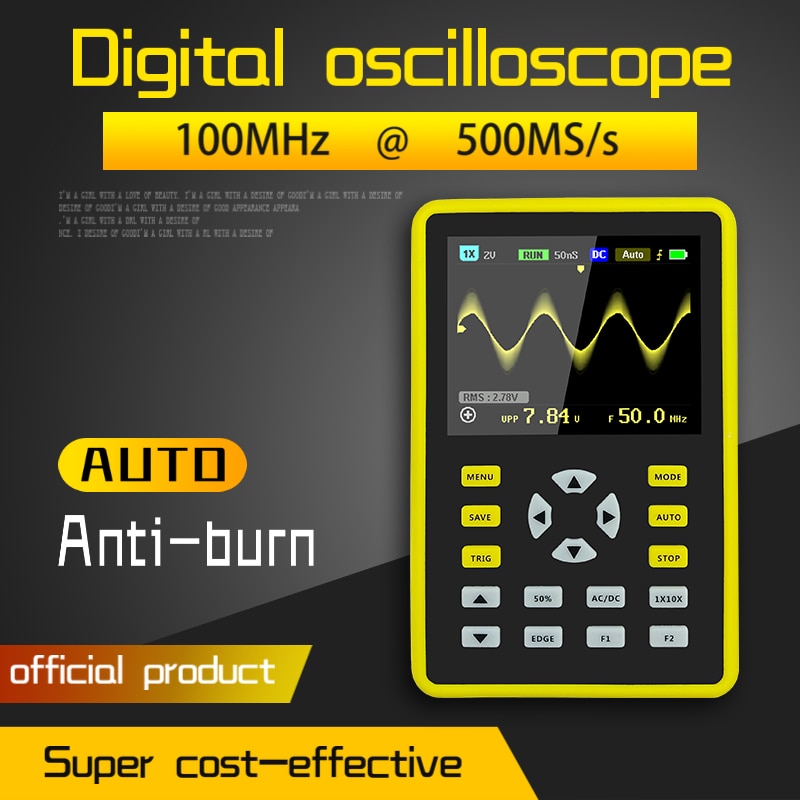

FNIRSI-5012H 100MHz Analog Bandwidth 500MS/s Sampling Rate 2.4-inch IPS Screen Digital Oscilloscope

https://www.satisled.com/web/image/product.template/6420/image_1920?unique=9cde222
(0 review)

82.26 82.26 USD 82.26

¥ 598.00

Not Available For Sale


    This combination does not exist.


    Categories :
    Digital Oscilloscope
    SKU :
    1941117
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Features:

    • Ultra small volume, easy to carry

    • Support Waveform Storage

    • Afterglow display technology

    • 2.4 inch color display screen with IPS technology

    • One-button waveform storage

    • Equipped with high efficiency One-button AUTO

    • At any time, the waveform display (pause function) is frozen

    • Complete triggering function (single, normal, automatic)

    • Built in 5000mAh rechargeable lithium battery,Fully charged for 12 hours of continuous use

    • Memory compression technology, waveform refresh screen does not flicker

    • Built in 64M storage space, the maximum storage of 2000 waveform pictures

    • Intelligent anti-burn,1X Can withstand up to 600V withstand voltage

    • Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions

    • High measurement voltage range, 1X can measure 0 ~ 80 V, 10X can measure 0 ~ 800V

    • Up to 12 parameters measurement:VPP,VP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Time

    Parameters:

    • Analog band width: 100MHz

    • Maximum sampling rate: 500MS/s

    • Storage depth: 128KB

    • Input resistance: 1M

    • ADC precision: 8bits

    • Coupling mode: AC/DC

    • Trigger mode: Single, Normal, Auto

    • Trigger edge: Ascending/descending edge

    • External trigger voltage 0 – 80 V

    • Display: 2.4 inch - 320*240 - IPS process

    • Power supply: 5000 mAh lithium battery

    • Size: 114mm x 74mm x 33mm

    • Vertical sensitivity: 50 mV/div ~ 100 V/div

    • Horizontal time base range: 50S/div ~ 6nS/div

    • Maximum test voltage: 80 V (1X probe), 800 V (10X probe)

    Package Includes:

    • 1 x ADS5012H Oscilloscope Host

    • 1 x Matching 100MHz Probe(1X and 10X)

    • 1 x Micro USB Data Line

    • 1 x User Manual (English)
