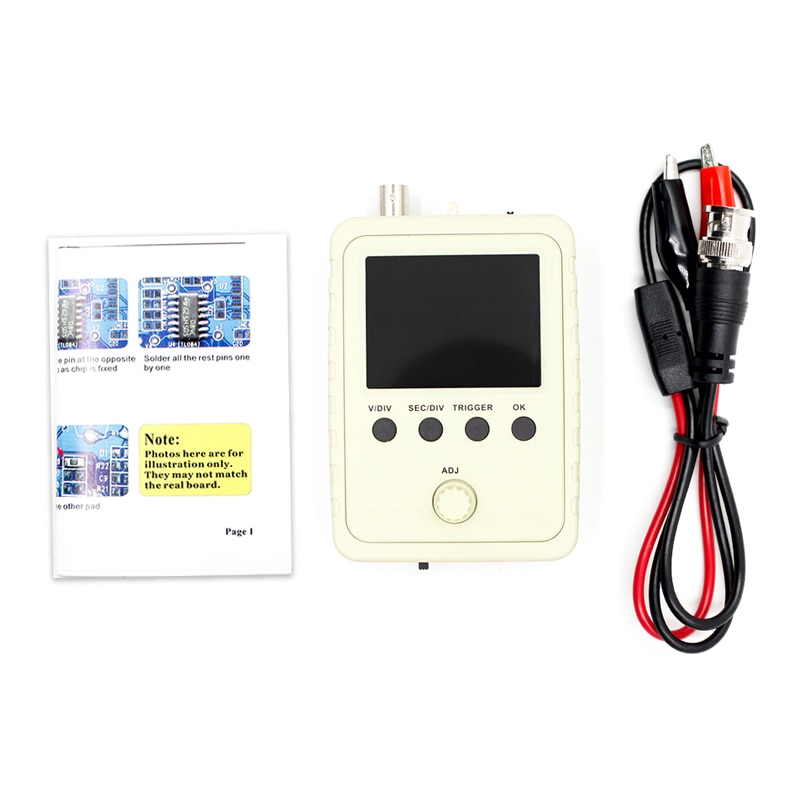

DSO FNIRSI-150 Digital Oscilloscope with Probe Fully Assembled

https://www.qskj.cc/web/image/product.template/6435/image_1920?unique=fb4d6cf
(0 review)

23.50 23.5 USD 23.50

¥ 170.00

Not Available For Sale


    This combination does not exist.


    Categories :
    Digital Oscilloscope
    SKU :
    1941136
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Features:

    • Available rising or falling edge trigger.

    • Observable previous waveform before trigger(negative delay).

    • Can freeze waveform display at any time(HOLD function).

    • Come with instructions, easy to install and operate.

    • Waveform storage function: will not lose the waveform after power off.

    • Short-circuit and open-circuit detection: can help the user find out the soldering error.

    • TFT controller recognition function.

    • The SMD has been soldered, more suitable for electronic beginner.

    • With Auto/Normal/Single trigger modes, easy to capture the moment waveform.

    • Adopt ARM Cortex-M3 processor (STM32F103C8), and include a 2.4-inch color TFT display screen.

    • Used for secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.

    • With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.

    Parameters:

    • Maximum Real-time Sampling Rate: 1MSa/s

    • Analog Bandwidth: 0-200KHz

    • Sensitivity Range: 5mV/div-20mV/idv

    • Maximum Input Voltage: 50Vpk (1X probe)

    • Input Impedance: 1M ohms/20pF

    • Accuracy: 12 Bits

    • Record Length: 1024 points

    • Coupling Modes: DC / AC / GND

    • Time Base Range: 500s/Div - 10us / Div

    • Trigger Modes: Auto, Normal, and Single

    • Trigger Position: Center of Buffer

    • Supply Voltage: DC 9V(8-10V)

    • Current Consumption:~120mA @ 9V

    • Main Board Size: 94 * 65mm / 3.7 * 2.56in

    • Analog Board Size: 65 * 47mm / 2.56 * 1.85in

    • Screen Size: 52 * 40mm / 2 * 1.57in

    • Package Size: 14.5 * 10 * 3.7cm / 5.7 * 3.94 * 1.45in

    Package List:

    • 1 * Fully Assembled Oscilloscope

    • 1 *  Probe

    • 1 * User Manual(English)
