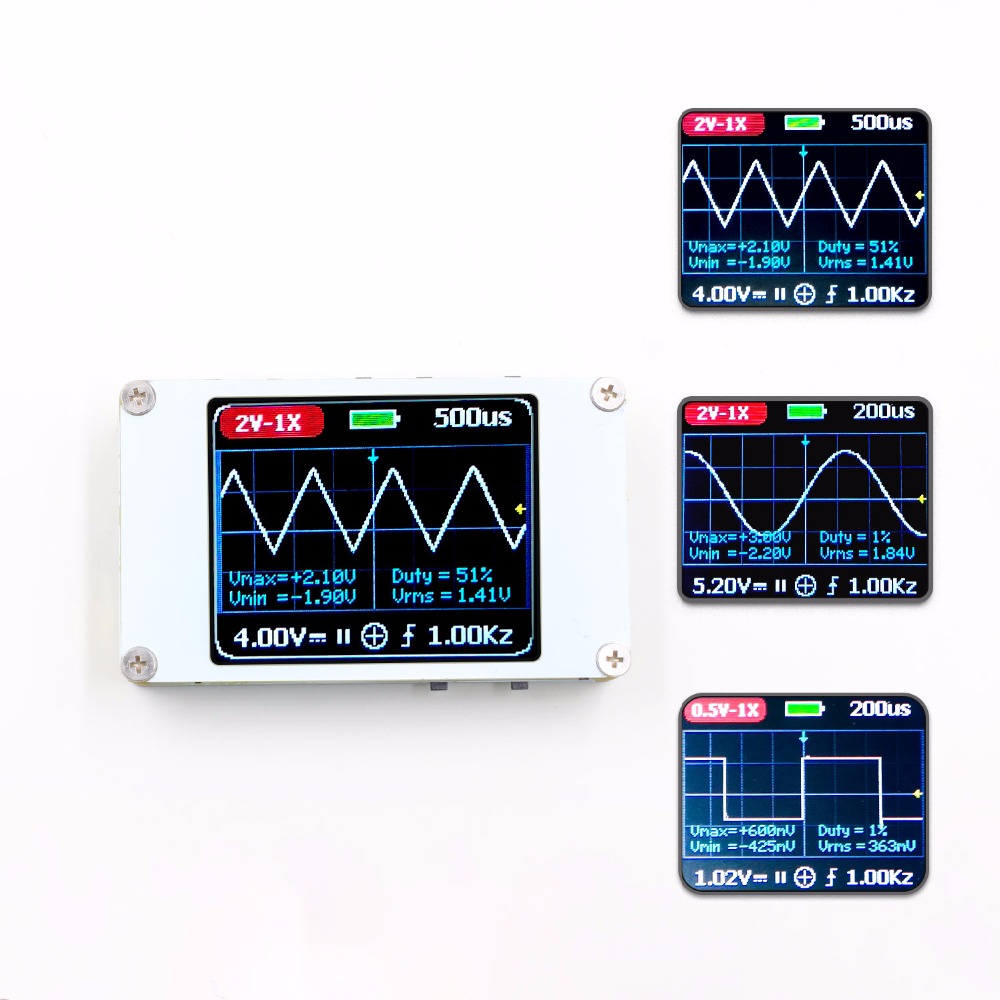

DSO188 1MHz Analog Bandwidth 5MS Sampling Rate Mini Digital Oscilloscope

https://www.qskj.cc/web/image/product.template/6421/image_1920?unique=23c53c7
(0 review)

25.85 25.85 USD 25.85

¥ 187.00

Not Available For Sale


    This combination does not exist.


    Categories :
    Digital Oscilloscope
    SKU :
    1941118
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Description:

    FNIRSI DSO188 is a super small digital oscilloscope with 5MS/s sampling rate and 1MHz bandwidth is designed for electronic enthusiasts and circuit R & D maintenance personnel. 1MHz bandwidth can be used for an amplifier, oscillator, automatic control system, DC/DC, inverter, switching power supply and so on. Whether DIY or scientific research education, vehicle maintenance, household appliances maintenance and so on are all good choices.

    Features:

    • Memory compression technology, waveform refresh screen does not flicker

    • 1.8-inch color display screen

    • High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 40 ~ 800V

    • Frequency can be displayed, Vmax, Vmin, Duty, Vrms, Vpp

    • At any time, the waveform display (pause function) is frozen

    • Battery/USB power supply, built-in 250mAh battery and intelligent charge management

    • Ultra small volume, easy to carry

    Parameters:

    • Analog band width: 1MHz

    • Maximum sampling rate: 5MS/s

    • Vertical sensitivity: 50 mV/div ~ 200 V/div

    • Horizontal time base range: 100mS/div ~ 2uS/div

    • Maximum input voltage: 40 V (1X probe), 800 V (10X probe)

    • Storage depth: 40KB

    • Input resistance: 1M

    • ADC precision: 12bits

    • Coupling mode: AC/DC

    • Trigger mode: Auto

    • Trigger edge: Ascending/descending edge

    • External trigger voltage 0 – 40 V

    • Display: TFT color display

    • Power supply: 250 mAh lithium battery

    • Size: 57 x 34 x 11 mm

    Package includes:

    • 1 x FNIRSI DSO188 oscilloscope host

    • 1 x   Oscilloscope probe

    • 1 x BNC turn MCX switch head

    • 1 x Micro USB data line

    • 1 x User manual (English)
