USB 24MHz Bandwidth 24MS Sampling Rate 8 Channel Logic Analyzer Debugger for ARM FPGA
Categories :Digital Oscilloscope
The logical channel sampling rate is up to 24 m/s. The general application is about 10 meters, which is enough for various purposes.
Logic input 8 can be collected. Analyze the signal and sample it as I2C, UART.
Logic can sample up to 1 billion, making capture even the most elusive event.
Protection logic input resistance, overvoltage protection and buffer chip. Better security team

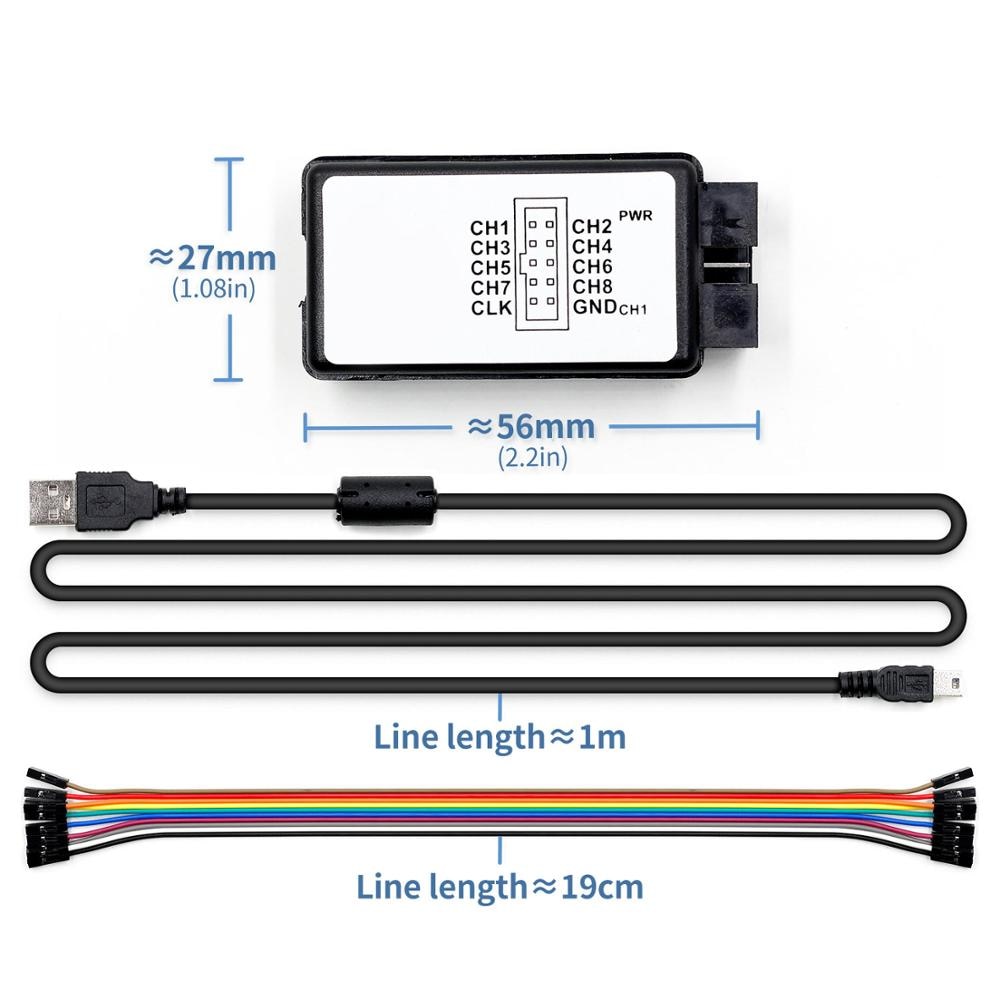

Model: Logic Analyzer Logic 24 m 8CH Host Registration
Length: 8-channel logic analyzer screen
Input voltage DC 7-14 V.
Output voltage: DC 5~5.8 V (adjustable)
Conversion efficiency: 98%
Logic Logic Analyzer 24 m 8ch Host
USB cable (different colors)
