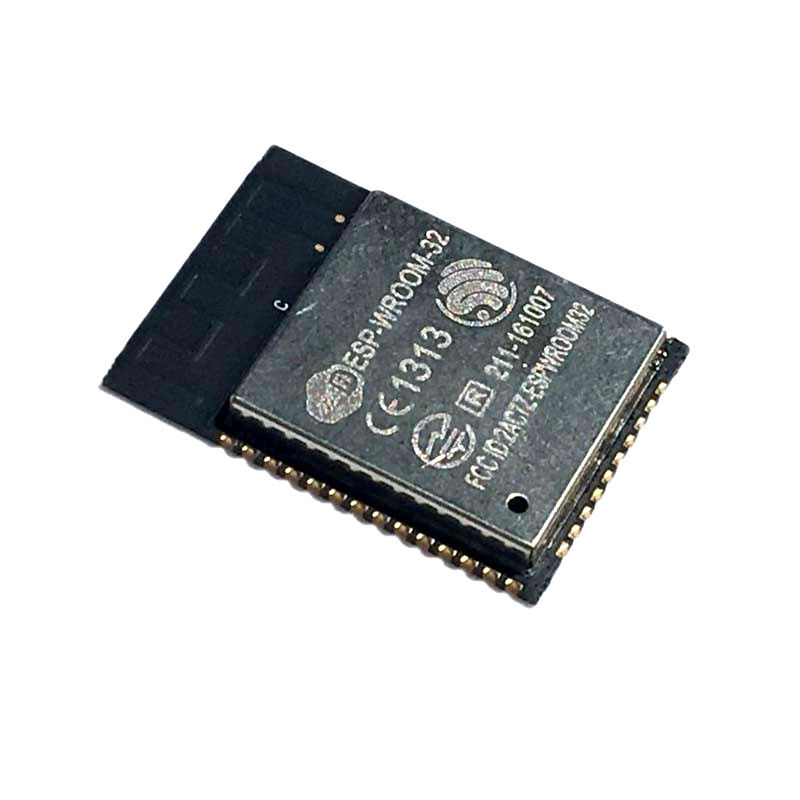

ESP-WROOM-32 ESP32 ESP-32 ESP8266 WiFi/WLAN+Bluetooth Module Dual Core 240MHz

https://www.satistronics.com/web/image/product.template/6461/image_1920?unique=99581fd
(0 review)

3.50 3.5 USD 3.50

¥ 25.00

Not Available For Sale


    This combination does not exist.


    Categories :
    Wireless Modules
    SKU :
    1941162
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    ESP32 function block diagram

    • ESP32 is a WiFi and Bluetooth system-on-chip (SoC) with industry-leading RF performance, low power and high integration advantages. The ESP32 integrates complete transmit / receive RF functions including antenna switches, RF balun, power amplifiers, low noise amplifiers, filters, power management modules and advanced self-calibration circuitry. The self-calibration circuit implements dynamic auto-tuning to eliminate defects in external circuitry. ESP32 with two 32-bit, LX6 CPU, clocked at up to 240MHz, using 7-level pipeline architecture. ESP32 also integrates a wealth of analog sensing and digital interface.

    • ESP32's ultra-low-power RF architecture and patented power-saving technology extend the battery life of practical applications.

    • ESP32 fully complies with WiFi 802.11b / g / n / e / i and Bluetooth 4.2 standards, integrated WiFi / Bluetooth / BLE RF and low power technology, and supports open real-time operating system RTOS. ESP32's integrated tuning cache helps improve system performance and optimize system storage. The flexible RAM / ROM partition architecture allows users to customize to meet specific requirements and usage.

    • ESP32 can be used as a standalone application or as a slave for a host MCU. As a slave, the ESP32 provides WiFi and Bluetooth via the SPI / SDIO or I2C / UART interface.

    Product features

    2.1 WiFi.1WiFi

    • 802.11 b / g / n / e / i

    • 802.11 n (2.4 GHz) at speeds up to 150 Mbps

    • 802.11 e: QoS mechanism to implement wireless multimedia technology

    • WMM-PS, UAPSD

    • A-MPDU and A-MSDU frame aggregation techniques

    • Block reply

    • Fragmentation and reorganization

    • Beacon automatic monitoring / scanning


    • 802.11 i security features: pre-authentication and TSN

    • Supports WPA / WPA2 / WPA2-Enterprise / WPS encryption

    • Infrastructure BSS Station mode / SoftAP mode

    • Wi-Fi Direct (P2P), P2P discovery, P2P GO mode, and P2P power management

    • UMA compatible and certified

    • Antenna diversity and selection

    2.2 Bluetooth 2 Bluetooth

    • Bluetooth v4.2 complete standard, including traditional Bluetooth (BR / EDR) and low power Bluetooth (BLE)

    • Supports standard Class-1, Class-2 and Class-3, and eliminates the need for external power amplifiers

    • Enhanced precision power control

    • Output power up to + 10 dBm

    • The NZIF receiver has BLE receive sensitivity of -98 dBm

    • Adaptive Frequency Hopping (AFH)

    • Standard HCI based on SDIO / SPI / UART interface

    • High-speed UART HCI with speeds up to 4 Mbps

    • Supports BT 4.2 controller and host protocol stack

    • Service Discovery Protocol (SDP)

    • Universal Access Application (GAP)

    • Security Management Protocol (SMP)

    • Low power Bluetooth

    • ATT / GATT

    • HID

    • Supports all GATT-based low-power Bluetooth applications

    • SPP-Like Low Power Bluetooth Data Transparency Protocol

    • BLE Beacon

    • A2DP / AVRCP / SPP, HSP / HFP, RFCOMM

    • CVSD and SBC audio codec algorithms

    • Bluetooth piconet and Scatternet

    2.3 CPU and storage

    • Xtensa® 32-bit LX6 dual-core processor with computing power up to 600 DMIPS

    • 448 KByte ROM

    • 520 KByte SRAM

    • 16 KByte SRAM in RTC

    • QSPI can connect up to 4 Flash / SRAMs, up to 16 MBytes per Flash

    • Supply voltage: 2.2V to 3.6V

    2.4 clock and timer

    Built-in 8 MHz oscillator for self-calibration

    • Built-in RC oscillator for self-calibration

    • Supports external 2 MHz to 40 MHz crystal

    • Supports external 32 kHz crystal for RTC, supports self-calibration

    • 2 timer groups each consisting of 2 64-bit general-purpose timers and 1 master system watchdog

    • RTC timers with sub-second precision

    • RTC watchdog

    2.5 Peripheral interface

    • 12-bit SAR ADC with up to 18 channels

    • 2 8-bit D / A converters

    • 10 touch sensors

    •Temperature Sensor

    • 4 SPIs

    • 2 I2S

    • 2 I2C

    • 3 UARTs

    • 1 Host SD / eMMC / SDIO

    • 1 Slave SDIO / SPI

    • Ethernet MAC interface with dedicated DMA to support IEEE 1588

    • CAN 2.0

    • IR (TX / RX)

    • Motor PWM

    • LED PWM, up to 16 channels

    •Hall sensor

    • Ultra-low power preamplifier

    Security mechanism .6 security mechanism

    • Supports all IEEE 802.11 security features, including WFA, WPA / WPA2 and WAPI

    • Safe start

    • Flash encryption

    • 1024-bit OTP, user-available up to 768 bits

    Encrypted hardware accelerator:

    • AES

    • HASH (SHA-2) library

    • RSA

    • ECC

    • random number generator (RNG)

    Application

    • Universal low power IoT sensor hub

    • Universal low power IoT recorder

    • Video streaming of the camera

    • OTT TV box / set-top box device

    • music player

    - Network music player

    - Audio streaming media device

    • Wi-Fi toys

    - Counter

    - toys anti-lost device

    • Wi-Fi speech recognition device

    • Headset

    • Smart socket

    • Home automation

    • Mesh network

    • Industrial wireless control

    • Baby monitor

    • Wearable electronic products

    • Wi-Fi location-aware devices

    • Security ID tag

    •  Healthcare

    Motion monitoring and anti-lost alarm

    Temperature recorder
