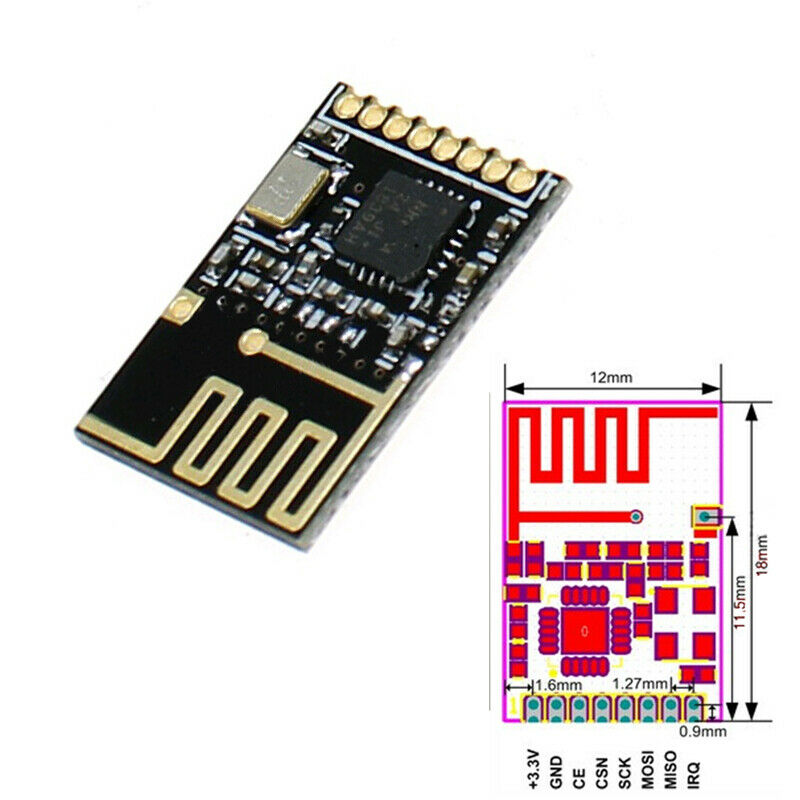

Mini NRF24L01+ SMD 1.27MM wireless Transceiver Module Small Size

Description:

• NRF24L01 + wireless module2Mbit / s 1Mbit / s 250Kbit / s transfer rate options

• MultiCeiver hardware to provide the 6 receiver functions at the same time

• + / - 60 ppm crystal

• Only need an external inductance when match antenna

• No multi-layer PCB

• 5V input tolerance level

• No need external level converter

• Improved ShockBurst and serial interface can be easily connected with a variety of low-cost MCU

• No MCU with SPI Interface

• 20 pin 4x4mm QFN leadless package very few external components

• The 2Mbit / s rate when the peak current 12.5mA received

• The 2Mbit / s rate @ 0dBm output current of 11mA peak

• 2Mbit / s rate of only a small average current

• 400nA Power-down mode, power consumption

• Power consumption of 32uA in standby mode

• 130us fast switching and wake-up time

• With on-chip voltage regulator oltage regulators

• In the 1.9 to 3.6V low voltage operation

• Possible to reduce noise

• Application: Mouse, keyboard, wireless headsets, intelligent sports equipment, remote controls, voice applications, security devices, VOIP applications.

 Package Included:

• 1PCS Mini NRF24L01+ SMD 1.27MM wireless transceiver module Small Size
