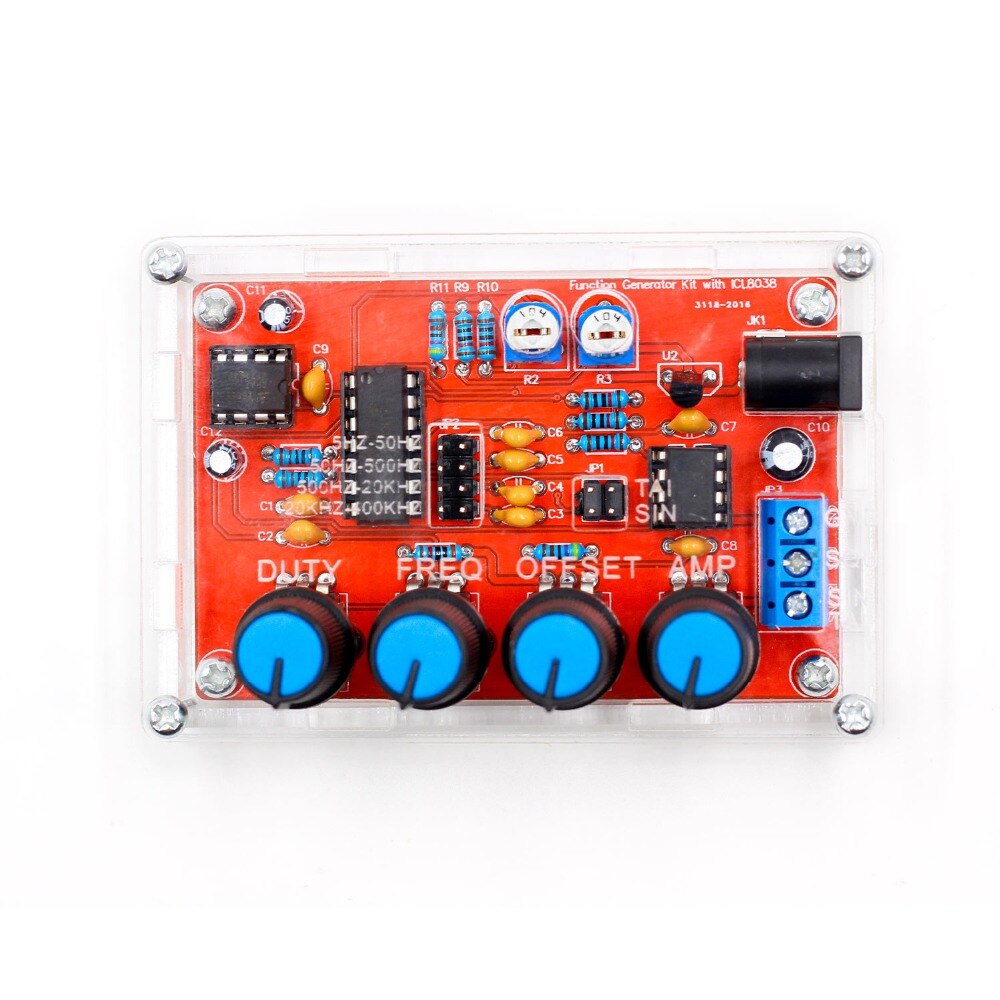

ICL8038 5Hz~400kHz Output Sine Triangle Square Sawtooth Adjustable Frequency Signal Generator DIY Kit

https://www.satisled.com/web/image/product.template/6469/image_1920?unique=8074831
(0 review)

6.09 6.09 USD 6.09

¥ 44.00

Not Available For Sale


    This combination does not exist.


    Categories :
    Signal Generator
    SKU :
    1941170
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Features:

    • Uses ICL8038 and high-speed op amp, higher accuracy.

    • Can output sine/triangle/square/forward and reverse sawtooth waveforms.

    • Frequency Range: 5Hz~400kHz; Duty Cycle Range: 2~95%(Adjustable)

    • Supports dual power amplifier without blocking the capacitor to ensure high and low frequency signal distortion.

    • Adjustable frequency and amplitude.

    • Frequency adjustment features coarse tuning and fine tuning.

    • All are through hole components, easy to install.

    Parameters:

    • Material: FR4 + Acrylic

    • Supply Voltage: 12V~15V

    • Frequency Range: 5Hz~400KHz(Adjustable)

    • Duty Cycle Range: 2~95%(Adjustable)

    • Low Distortion Sine Wave: 1%

    • Low Temperature Drift: 50ppm / °C

    • Output Triangular Wave Linearity: 0.1%

    • DC Bias Range: -7.5V~7.5V

    • Output Amplitude Range: 0.1V~11VPP(operating voltage 12V)

    • Board Size: Approx. 7.8 * 5cm / 3.07 * 1.97in

    • Finished Product Size: Approx. 8.7 * 6 * 1.7cm / 3.43 * 2.36 * 0.67in

    • Package Size: Approx. 11 * 7 * 3cm / 4.33 * 2.76 * 1.18in

    Note: The testing picture is just for reference, please in kind prevail!
