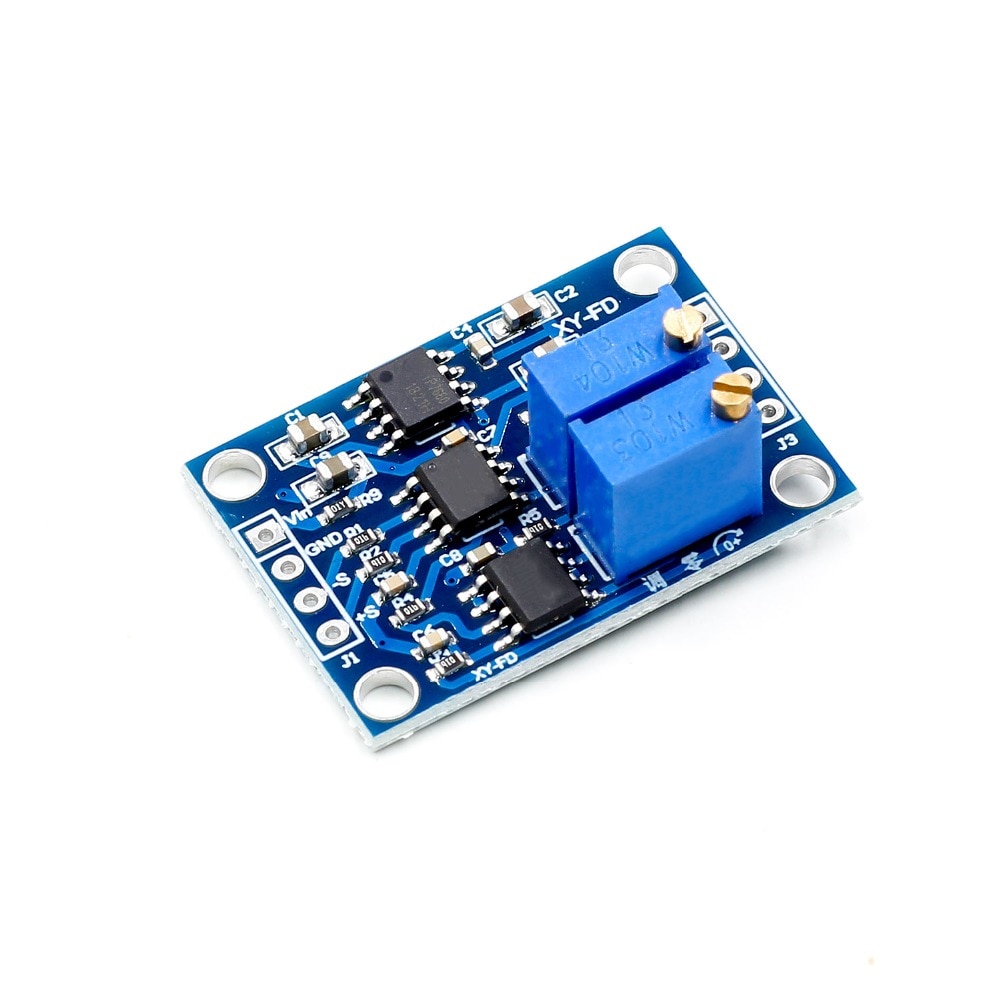

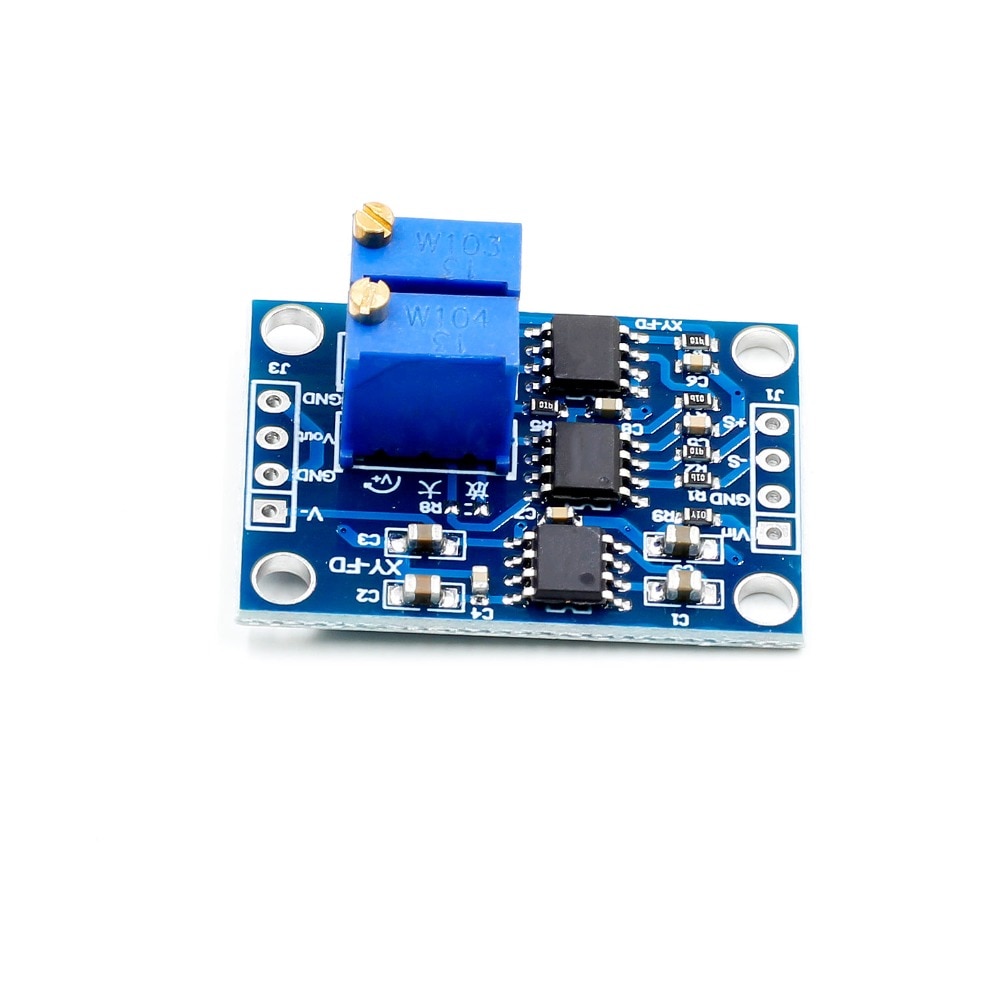

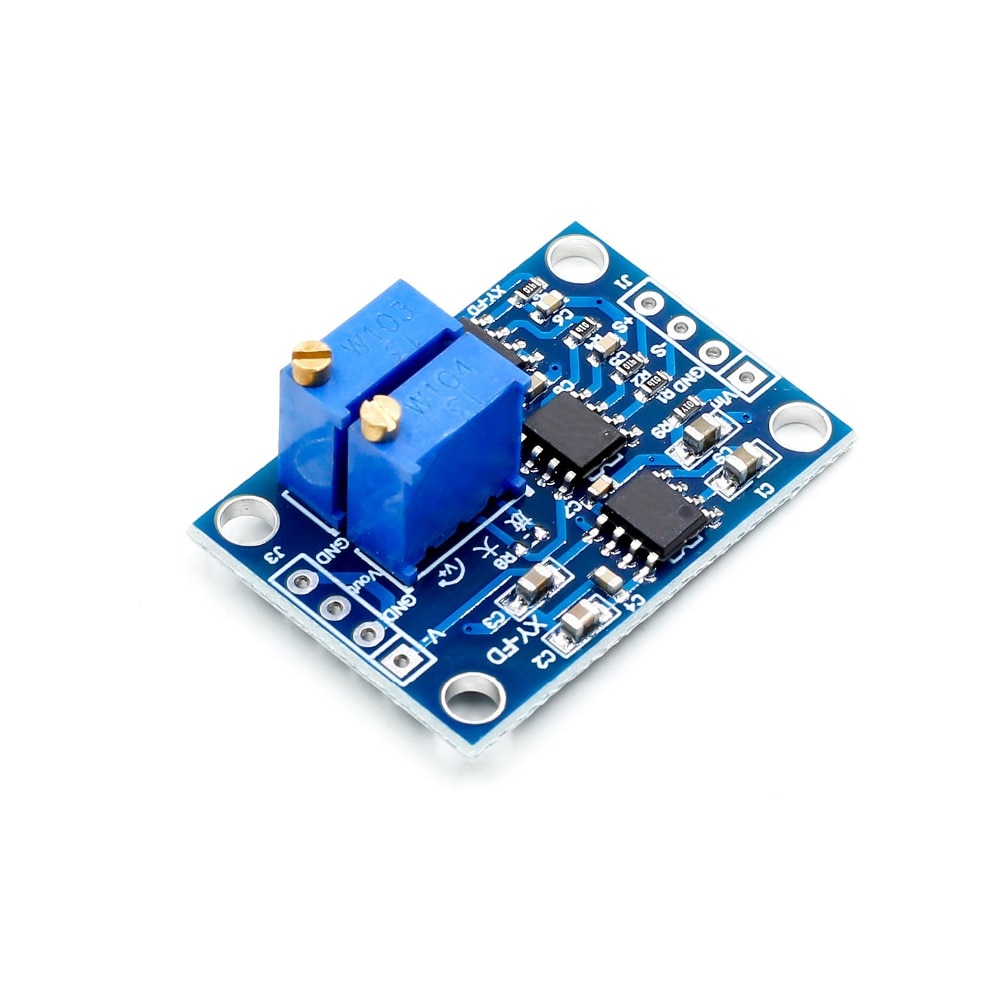

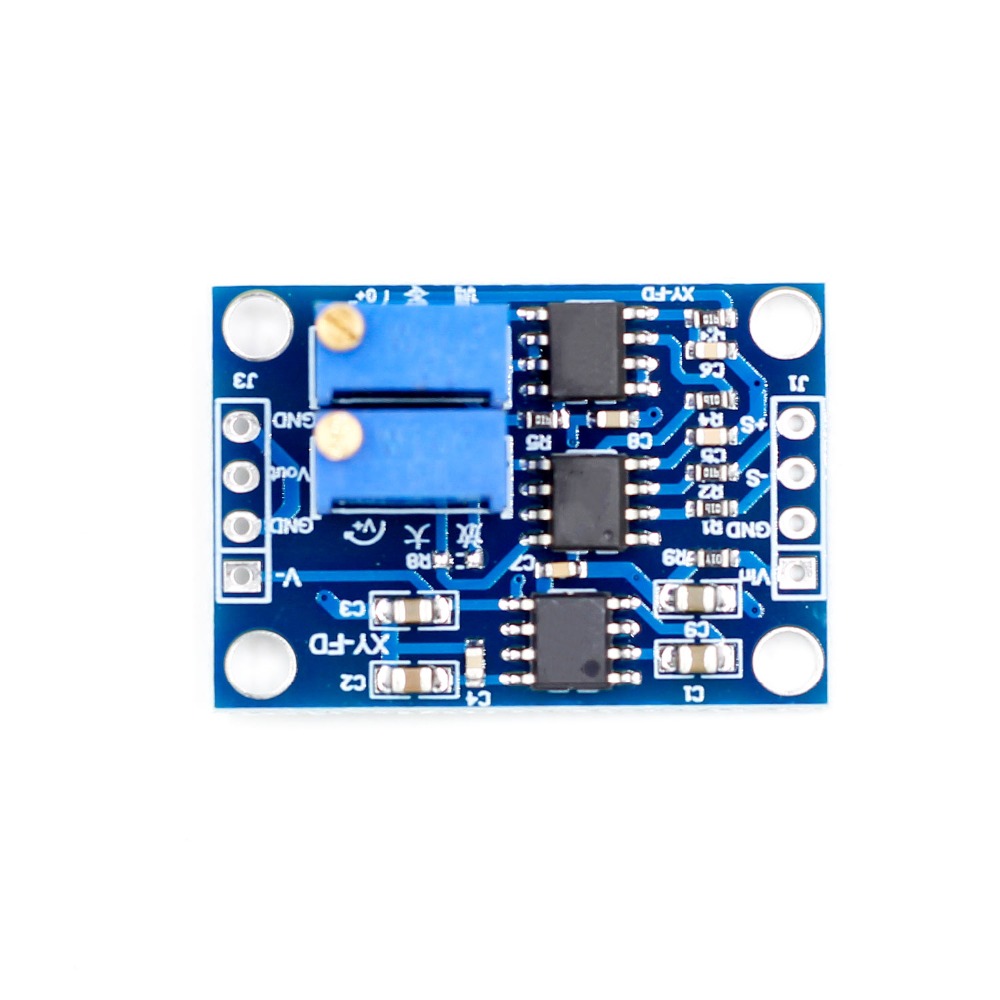

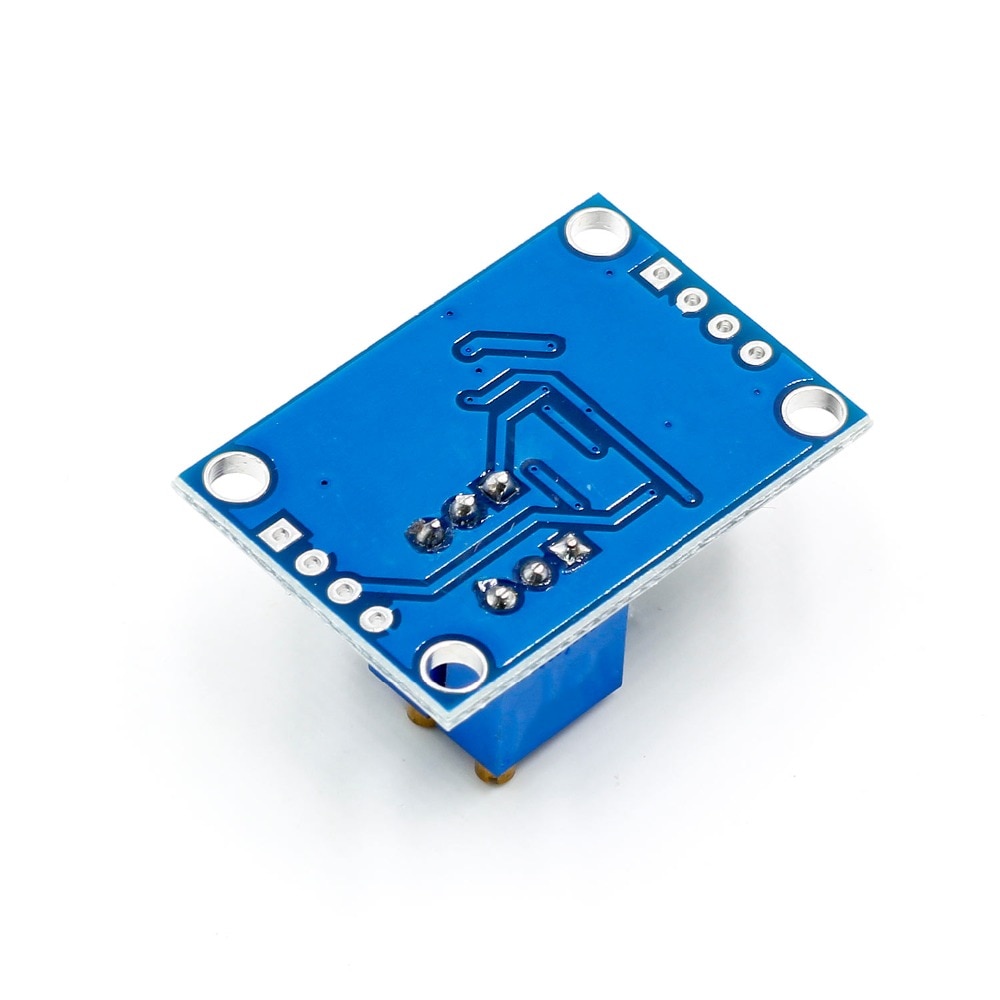

AD620 DC3-12V Microvolt Amplifier Signal Instrumentation Module Board Voltage Meter

https://www.qskj.cc/web/image/product.template/6524/image_1920?unique=e9a865c
(0 review)

3.04 3.04 USD 3.04

¥ 22.00

Not Available For Sale


    This combination does not exist.


    Categories :
    Voltage Meters
    SKU :
    1941249
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Features:

    • Wide supply voltage range, the AD620 amplification of this product can be amplified microvolts, millivolt, compared to LM358 Amplification accuracy, better linearity, the maximum voltage output range of ± 10V.

    • Magnification range, magnification up to 1000 ti2mes, only through a potentiometer can be adjusted.

    • Adjustable zero through the zero potentiometer to adjust the zero, improve accuracy, there will be no zero drift phenomenon to meet customer needs.

    • A negative voltage output, the module uses 7660A chip output negative voltage (-Vin), can be provided to the customer to drive other dual power load.

    • Mini type, the size of 32 * 22mm, evenly distributed around the four 3mm positioning holes, both sides of the port 2.54mm standard pitch pinhole.

    Parameters:

    • Size: 32 * 22mm

    • Signal input voltage: 100uV - 300mV

    • Signal output range: ± (Vin-2V)

    • Input voltage: 3-12VDC. (Bulk purchase can be customized)

    • magnification: 1.5-1000 times adjustable, zero adjustable

    • Offset voltage: 50μV.

    • Input bias current: 1.0nA (max).

    • Common mode rejection ratio: 100 dB

    • Offset voltage drift: 0.6μV / ℃ (maximum).

    • Stability: 2μV / month maximum

    • Negative voltage output: higher than -Vin.

    • As the negative voltage chip output resistance problem, the actual output is higher than -Vin, the greater the load power, the greater the negative voltage drop.
