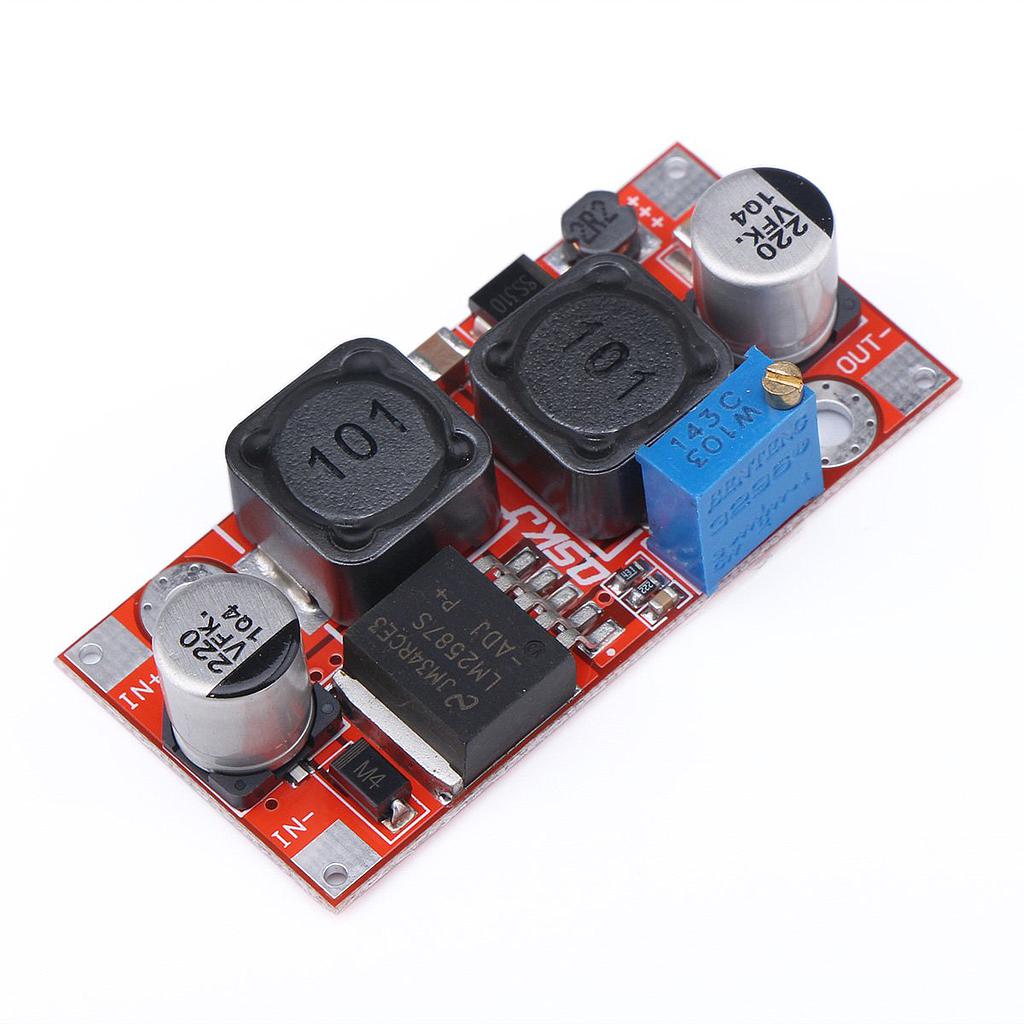

DC Converter 3-35V to 1.2-30V Auto Step Up Down Module Power Module QS-1212CBD-24W

https://www.satistronics.com/web/image/product.template/6717/image_1920?unique=d8c7308
(0 review)

4.13 4.13 USD 4.13

¥ 30.00

Not Available For Sale


    This combination does not exist.


    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Brand: QSKJ

    Model:  QS-1212CBD-24W

    Parameters:

    • Module Properties: non-isolated buck-boost module

    • Input voltage :3-35V

    • Output voltage: 1.25-30V (adjustable)

    • Output Current: 2A (when 9-35V input and 12V  output, if 5V output can achieve 3A)

    • Input Current: 3.5A (MAX)

    • Output power: natural cooling 18W (input voltage greater than 10V), if install heat sink can achieve 24W

    • Output ripple: 20M bandwidth (for reference)

    • Input 10-14V, output 12V 0.2A, ripple 50mV

    • Operating Temperature: Industrial (-40°c to +85°c) (if ambient temperature exceeds 40 degrees, lower power use, or to enhance heat dissipation)

    • Full load temperature rise: 45°c

    • No-load current: Typical 10mA (10-14V switch 12V)

    • Load regulation: ± 1%

    • Voltage regulation: ± 0.5%

    • Dynamic response speed: 5% 200uS

    • Short circuit protection: Yes (10 seconds)

    • Input Reverse Polarity Protection: None (Please Series diode at the input port.)

    • Installation: can screw (diameter 3 mm), 2 fixing holes

    • Connection: Welding, can be directly soldered to a PCB

    • Size: 49mmx23.4mmx11.4mm

    Applications:

    • Battery voltage regulator, 12V battery (10-14V) can output voltage at 12V, 24V battery output voltage at 24V.

    • Solar charging regulator, it can stabilize voltage fluctuations in solar cells, and can give the battery charge, battery to avoid overshoot.

    • In order to power your electronic devices, designed for wide voltage range.
