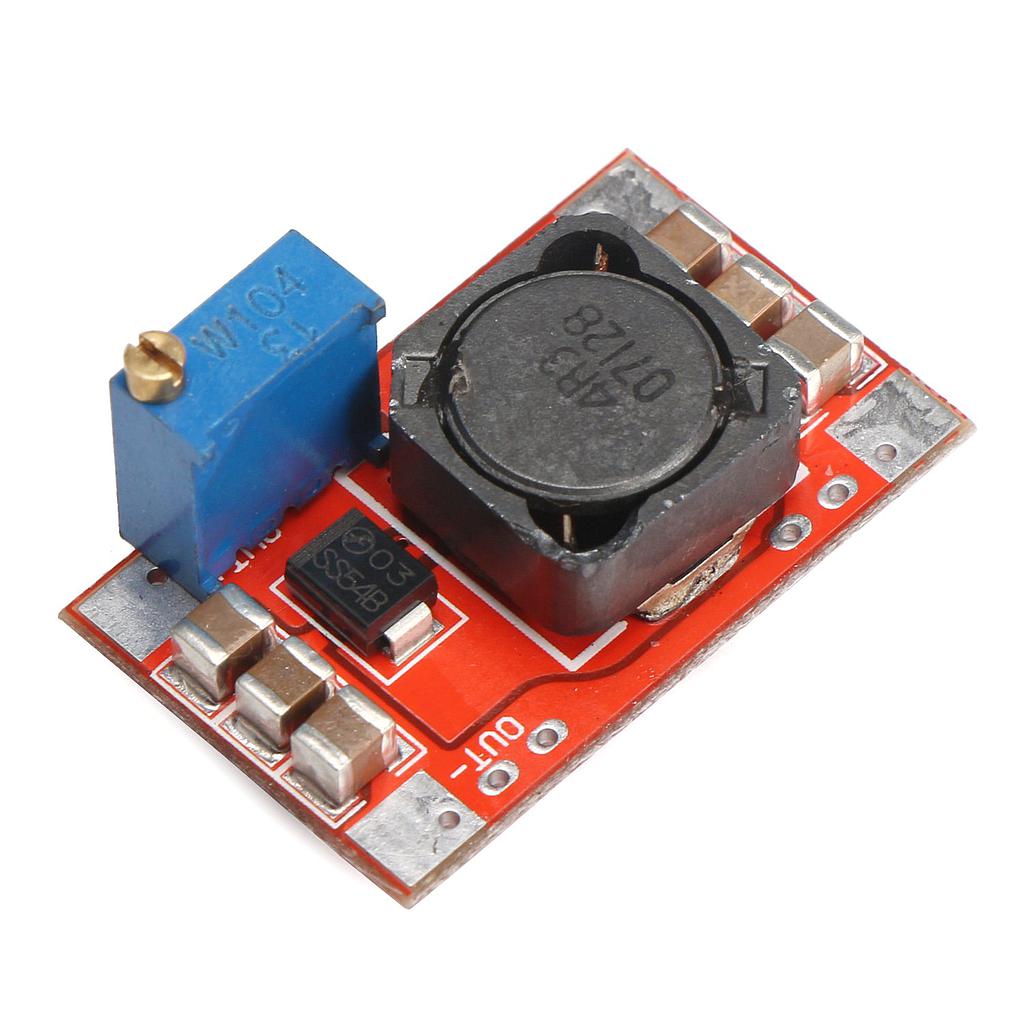

DC-DC Boost Converter 2.5-25V to 5-25V Step Up Module QS-0325-15W

https://www.satistronics.com/web/image/product.template/6722/image_1920?unique=99581fd
(0 review)

7.29 7.29 USD 7.29

¥ 52.50

Not Available For Sale


    This combination does not exist.


    Categories :
    Step Up Boost Module
    SKU :
    1941727
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Brand: QSKJ

    Model:  QS-0325-15W

    Product Description:

    It is a 25W Charger/Adapter/Power Supply Module, Input voltage: DC 2.5~25V, Output voltage: DC 5~25V (Continuously adjustable), Application: DIY Power adapter/Charger, industrial equipments, electronic equipment, Communications Equipment, Power Tools, Car Driving Recorder, Car GPS, Car audio, LCD TV, Advertising screen, Monitoring System, LED lights, Fan, intercom and monitor system, etc.

    Parameters:

    • Module Properties: non-isolated Step-up Module (BOOST),Adjustable Voltage Regulator,DIY Charger etc.

    • Input voltage: DC 2.5~25V

    • Output voltage: DC 5~25V (Continuously adjustable)

    • Input Current: 4A (MAX) (input voltage greater than 3V), short 5A (less than 10 seconds)

    Output power:

    • 10W MAX(input voltage greater than or equal 3V)(eg: input 3.7V output 5V 2A)

    • 15W MAX(input voltage greater than or equal 5V)(eg: input 5V output 12V 1.25A)

    • 25W MAX(input voltage greater than or equal 12V)(eg: input 12V output 19V 1.3A)

    • Efficiency: Up to 95% (the higher the input voltage, the higher the efficiency)

    • Output ripple: 50mV (TYP)

    • Input 3.7V Output 5V 2A ripple 40mV

    • Input 5V Output 12V 0.5A ripple 25mV

    • Input 5V Output 12V 1A ripple 40mV

    • Input 5V Output 12V 1.5A ripple 60mV

    • Input 12V Output 24V 1A ripple 80mV

    • Bandwidth: 20M

    • Operating Temperature: Industrial (-40°c to +85°c)) (if ambient temperature exceeds 40° c, please lower power use, or to enhance heat dissipation)

    • Full load temperature: 40°c

    • Load regulation: ± 0.5%

    • Voltage regulation: ± 0.5%

    • Undervoltage protection: None

    • Short circuit protection: None (Please Install fuses and protection circuits at Input port.)

    • Input Reverse Polarity Protection: None (Please Series diode at the input port.)

    • Connection: Welding, DIP-24 standard package can be soldered directly on PCB

    • Input: IN+ input postive, IN- input negative

    • Output: OUT+ output postive, OUT- output negative

    Boot mode:

    • Power output directly. For shutdown, Just the EN pin connect to 5V level, after that the output voltage is approximately equal to the input voltage.

    Applications:

    • DIY Power Supply.

    • only need one battery, and output 5~25V voltage to charger for Phone, MP3, MP4, PSP etc.

    • Boost Charger

    • Power for your electronic equipment
