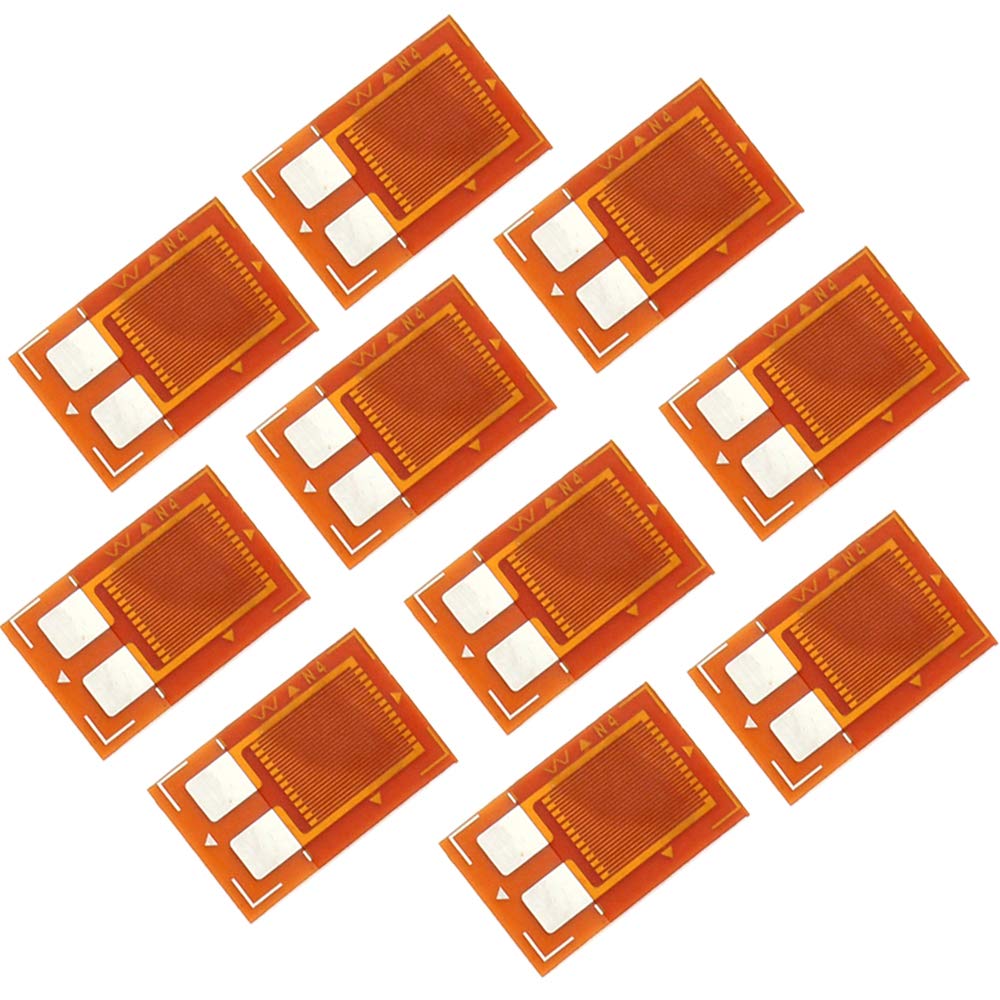

BF350-3AA 350Ω High Precision Resistive Strain Gauge Pressure Sensor lot(10 pcs)

https://www.satistronix.com/web/image/product.template/6753/image_1920?unique=8cf0d0c
(0 review)

$ 1.29 1.29 USD $ 1.29

¥ 9.00

Not Available For Sale

($ 0.13 / Unit(s))

    This combination does not exist.

    Contact Us
    Categories :
    Sensor Chips
    SKU :
    1941802
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery
    You may also like
    SI7021-A10-GMR DFN6 Temperature Humidity Sensor
    SI7021-A10-GMR DFN6 Temperature Humidity Sensor
    $ 2.17 $ 2.17
    TI LM50CIM3X/NOPB SOT-23 Analog Output Temperature Sensor
    TI LM50CIM3X/NOPB SOT-23 Analog Output Temperature Sensor
    $ 0.55 $ 0.55
    NXP LM75BDP,118 VSSOP-8 VSSOP-8 Digital Temperature Sensor
    NXP LM75BDP,118 VSSOP-8 VSSOP-8 Digital Temperature Sensor
    $ 0.38 $ 0.38
    BROADCOM SFH250V 100MBd Receiver Optical Fiber Connector with Analog Output
    BROADCOM SFH250V 100MBd Receiver Optical Fiber Connector with Analog Output
    $ 11.85 $ 11.85
    BROADCOM HFBR-1528Z 10MBd Receiver Optical Fiber Connector
    BROADCOM HFBR-1528Z 10MBd Receiver Optical Fiber Connector
    $ 9.95 $ 9.95
    InvenSense MPU-6000 QFN-24 3-axis Acceleration 3-axis Gyroscope 6-axis Attitude Sensor
    InvenSense MPU-6000 QFN-24 3-axis Acceleration 3-axis Gyroscope 6-axis Attitude Sensor
    $ 3.22 $ 3.22

    Features:

    • A resistive strain gauge sensor with a 350 ohm nominal resistance which varies when a force is applied. By measuring the change in the sensors resistance, a measurement of the force applied to it can be obtained.

    • The substrate is made of the modified phenolphthalein, and the grid is made of constantan foil.

    • With high precision and good static measurement stability, the weighing sensor is suitable for 0.02 level sensor.

    • The 7.1*4.5mm specification makes it easy to dissipate heat, consumes less power per unit area, and is easy to paste and solder.

    • Simultaneous temperature self-compensation and creep compensation.

    Parameters:

    • Type: BF350-3 AA

    • Resistance: 350Ω(typ.)

    • Grid Material:constantan

    • Sensitivity Coefficient: 2.00-2.20

    • Sensitivity Coefficient Dispersion: ≤±1%

    • Strain Limit: 2.0%

    • Fatigue Lifetime: ≥1M

    • Board Size: 7.1 X 4.5mm/0.28 X 0.18inch(L*W)

    ​
