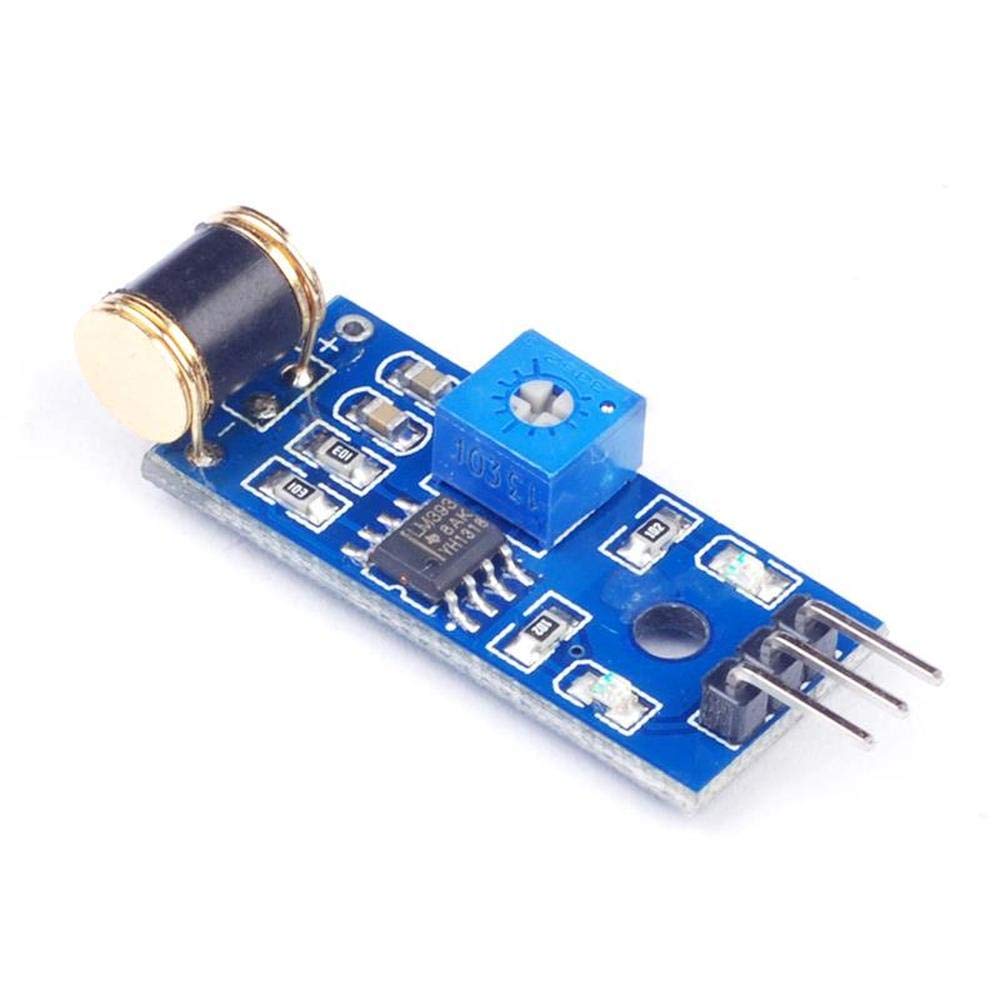

801S Vibration Sensor Module Analog Output for Arduino

Features:

• The form consists of a vibration sensor which employs the 801S component.

• The output of the module is TTL, after the comparison of the vibration level with prefissabile via potentiometer.

Parameters:

• Vibration sensor

• Supply voltage 5V

• Dimension: 20*32*11 mm

• Component 801S and LM393 forming the commemorator

Connection mode:

single-line spaced Pin 43 Connector to < span class = notranslate ' > </span> 2.54 mm

a. Pin-216 voltage supply

b. analog output Pin-2Segnale

c. Pin-23 Mass

Module Interface Specifications (3 wire):

• VCC external 3.3 V - 5 V

• GND external GND
