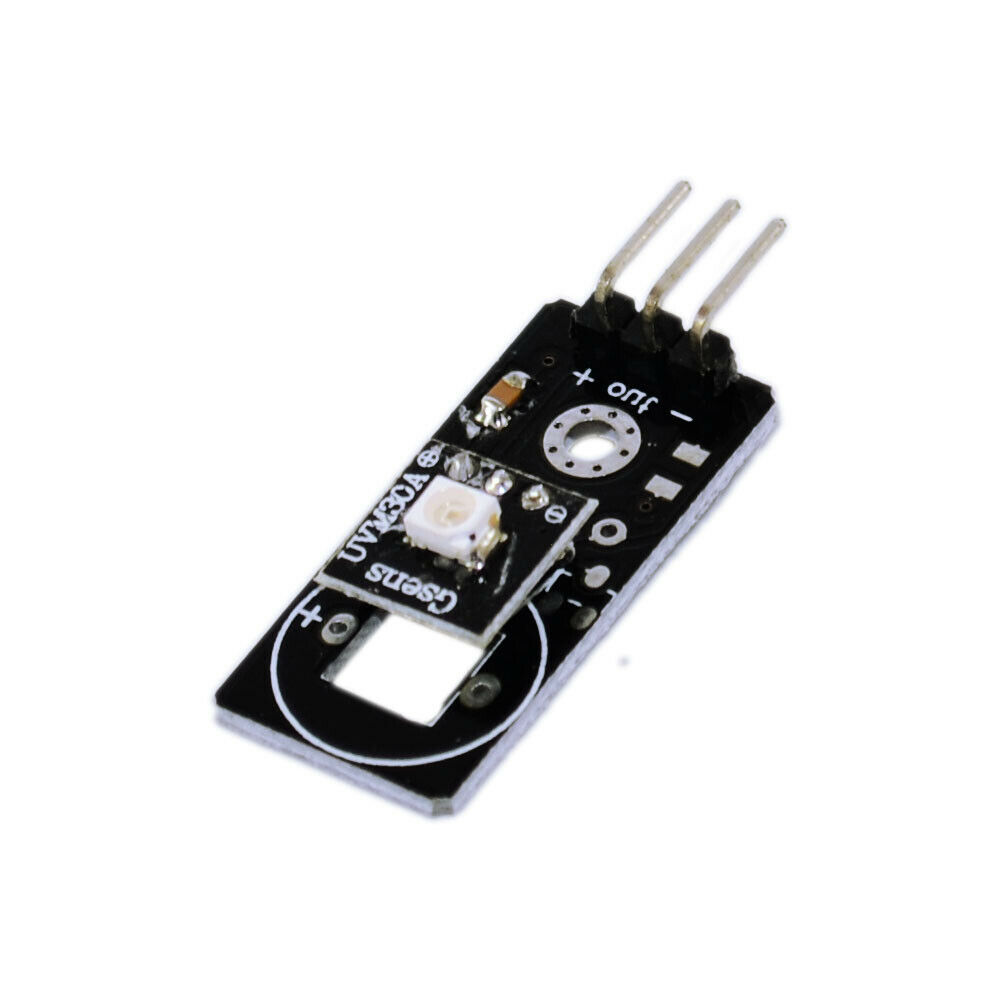

UVM-30A Ultraviolet Ray Detection Sensor Module 3-5V for Arduino

Features:

• It is designed for high reliability and accuracy of the measurement of the UV index (UVI) design situations;

• It is suitable for measuring total solar ultraviolet intensity;

• The control of the World Health Organization classification standard UV index

• The detection wavelength: 200-370nm UV;

• The fast response, full interchangeability;

• It uses the solid polymer structure, waterproof and dustproof patented easy cleaning;

• The linear voltage signal output;

• The small size, suitable for mobile phones and other portable products.

Parameters:

• Operating Voltage: DC 3-5V

• Output voltage: DC 0-1V

• Test accuracy: ±1UV INDEX

• Current: 0.06mA(typ), 0.1mA(max).

• Response wavelength: 200nm-370nm

• Work temperature: -20℃~85℃

• Detect UV wavelength:200-370nm

• PCB size:28mm*12mm*10mm
