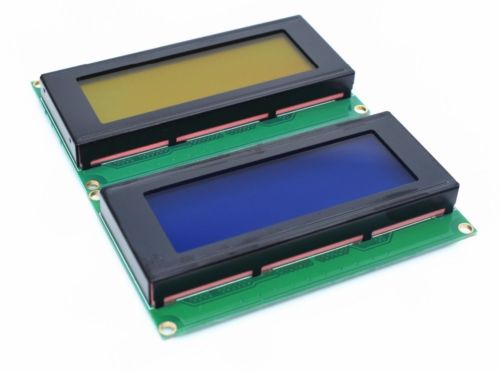

2004 5V LCD Module Blue/Green Screen 20X4 LCD Board

https://www.qskj.cc/web/image/product.template/6033/image_1920?unique=711d32c
(0 review)

3.48 3.48 USD 3.48

¥ 25.30

Not Available For Sale


  • Backlight

This combination does not exist.


Categories :
Character LCD Module
SKU :
180373
Share :
100% original guarantee
Return within 30days
Free delivery on all orders

Description:

  • 2004 LCD display module is a 4 line 20 character LCD module not only set the contrast control knob selector switch also has a backlight and IIC communication interface. For Arduino beginners, not for the cumbersome and complex LCD driver circuit connection and a headache, the real significance of this LCD module will simplify the circuit, this module directly into the Arduino Sensor Shield V5.0 sensor expansion board, GM 4P sensor connection cable, programmed through the Arduino controller, you can easily identify the slogan, sensor data records.

Parameters:

  • Supply voltage: 5V

  • Pin definition: GND, VCC, SDA, SCL

  • Contrast adjust: potentiometer

  • The module is a low-power consumption character LCD module with a built-in controller

  • The module can be easily interfaced with a MCU

  • Display format: 20 Characters x 4 lines

  • Fully assembled and tested serial LCD 20 x 4 module

  • White text, blue/green backlight

  • It is fantastic for based project

  • Size: 9.8 x 6 x 1.2mm
