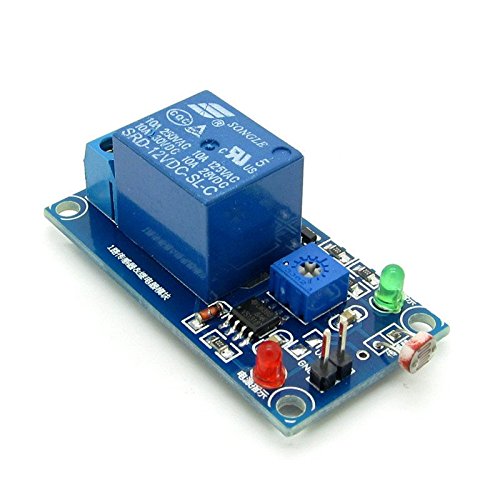

5V/12V Photosensitive Resistance Light Sensitive Sensor Relay Module Light Switch

https://www.satisled.com/web/image/product.template/1234/image_1920?unique=0a4262b
(0 review)

2.28 2.2800000000000002 USD 2.28

¥ 16.50

Not Available For Sale


  • Voltage

This combination does not exist.


Categories :
Optical Sensor
SKU :
180354
Share :
100% original guarantee
Return within 30days
Free delivery on all orders

Module features:

  • The use of photosensitive resistance induced light intensity, comes with a relay, direct control of the load

  • With potentiometer sensitivity adjustment, by adjusting the potentiometer, set the starting relay threshold, when the dark on the threshold, module and relay, bright on the threshold, the relay is switched off.

  • Working voltage 5V/12V

  • Output form: directly connected to the 220V 10A AC or 10A DC30V load

  • With 4 fixed bolt holes, easy to install

  • Small size: 5cm x 2.6cm

  • PCB 7, the use of wide voltage LM393 comparator

Module instructions:

  • Photosensitive resistance module is the most sensitive to environmental light, generally used to detect the brightness of the surrounding environment of light.

  • Module in the light more than setting a threshold, a relay, a public end and often start connected,, when the outside ambient light is less than a preset threshold, relay disconnect, public ends with the normally closed terminal is connected; < br > 3, the public side, normally open, normally closed three ports is equivalent to a double control switch, relay coil power, the public and often start conducting, without electricity, the common and often closed end conduction;

Electrical parameters:

  • Power supply voltage: 5V DC/12V DC

  • Current: more than 100mA

  • Load: 10A 250V AC or 10A 30V DC
