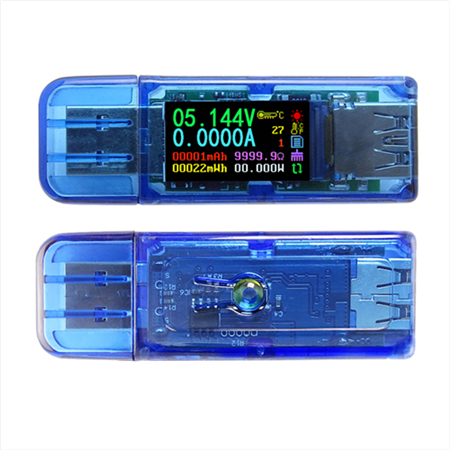

AT34 UM34/UM34C UM24/UM24C UM25/UM25C LCD Display USB Voltage Tester

https://www.satistronics.com/web/image/product.template/6505/image_1920?unique=d27fcb4
(0 review)

$ 14.33 14.33 USD $ 14.33

¥ 97.00

Not Available For Sale

  • Part Number

This combination does not exist.

Contact Us
Categories :
Voltage Meters
SKU :
1941209
Share :
Terms and Conditions :
100% original guarantee
Return within 30days
Worldwide Fast delivery
You may also like
WEB-U2 USB Tester QC4+ PD3.0 2.0 PPS Fast Charging Protocol Capacity Test
WEB-U2 USB Tester QC4+ PD3.0 2.0 PPS Fast Charging Protocol Capacity Test
$ 30.14 $ 30.14
DC 5V to 1.0 - 24V CNC USB Step Up/Down Desktop Power Supply Module
DC 5V to 1.0 - 24V CNC USB Step Up/Down Desktop Power Supply Module
$ 1.00 $ 1.00
3 in 1 USB Charger Battery Tester Power Current Voltage Meter
3 in 1 USB Charger Battery Tester Power Current Voltage Meter
$ 3.10 $ 3.10
DC-DC CC CV 5V to 3.3V 9V 12V 24V 30V 15W USB Step Up/Down Power Supply Module
DC-DC CC CV 5V to 3.3V 9V 12V 24V 30V 15W USB Step Up/Down Power Supply Module
$ 4.28 $ 4.28
DC-DC 3.5-12V to DC1.2-2.4V USB Step Up/ Down Power Supply Module
DC-DC 3.5-12V to DC1.2-2.4V USB Step Up/ Down Power Supply Module
$ 1.36 $ 1.36
DP30V5A-L Constant Current Power Supply Module Voltage Regulator
DP30V5A-L Constant Current Power Supply Module Voltage Regulator
$ 26.74 $ 26.74

Parameters:

  • Product Model: AT34

  • Voltage measurement range: 3.70-30.00V

  • Voltage measurement resolution: 0.01V

  • Voltage measurement accuracy: ±(0.8％+4digits )

  • Current measurement range: 0-4.000A

  • Current measurement resolution: 0.001A

  • Current measurement resolution: ±(1％+4digits )

  • Data refresh rate: 2Hz

  • Capacity accumulation range: 0-99999mAh

  • Energy accumulation range: 0-99999mWh 999.99W

  • Power measurement range: 0-120W

  • Load impedance range: 1Ω-9999.9Ω

  • Temperature range: 0℃~80℃/32℉~176℉

  • Temperature measurement error: ±3℃/±6°F

  • Working temperature range: 0~45℃/32℉~113℉

  • Dimensions: 64mmx22mmx12mm

  • Quick charge recognition mode: QC2.0、QC3.0、APPLE 2.4A/2.1A/ 1A/0.5A、Android DCP、SAMSUNG

Note:

  • User manual: http://www.mediafire.com/folder/77ueo252py4vc/AT34

  • Description video :  https://www.youtube.com/watch?v=nkL_pofkd10

Function Introduction:

AT34-_01AT34-_02AT34-_03AT34-_04AT34-_05

AT34_06AT34_07AT34_08

AT34_09AT34_10AT34_11AT34_12AT34_13AT34_14AT34_15AT34_16

​
