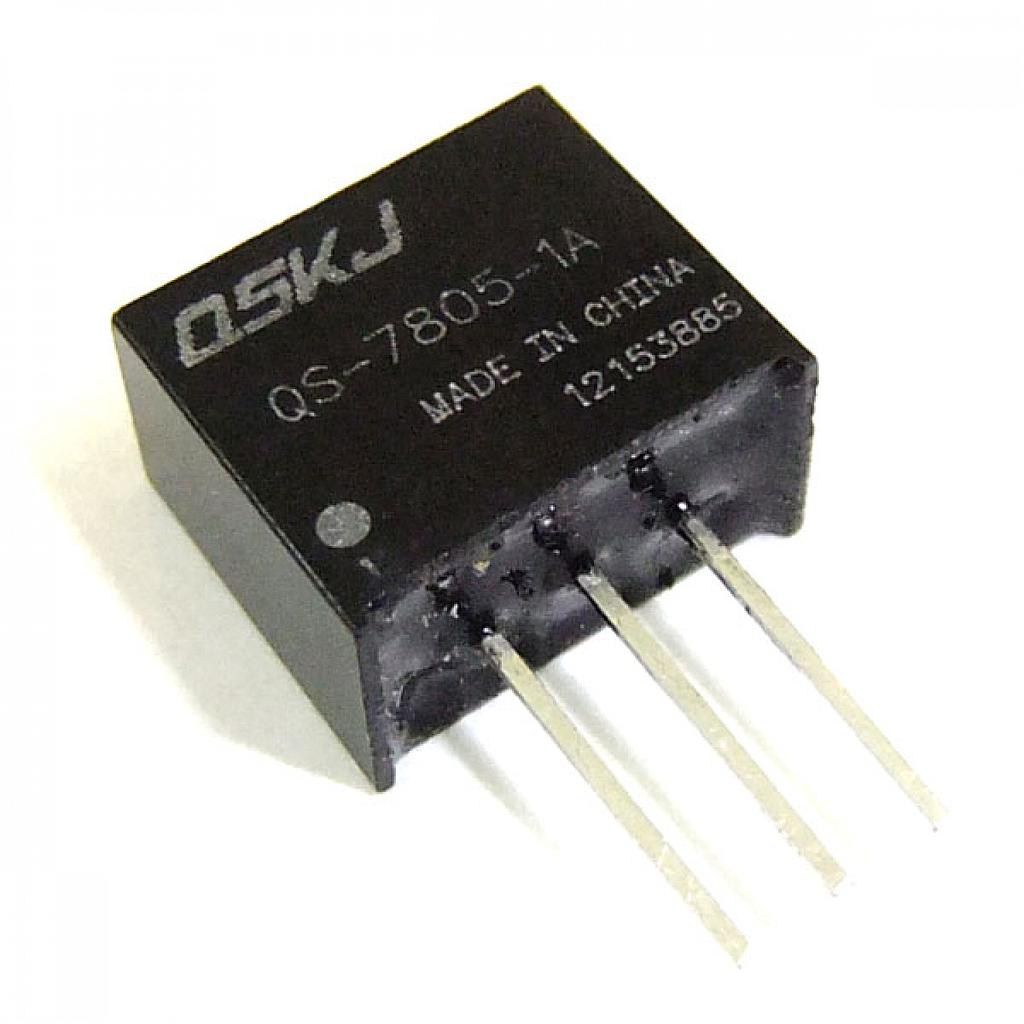

DC-DC Converter 13-24V to 12V 0.5A Non-isolated Step Down Module QS-7812-0.5A

https://www.satisled.com/web/image/product.template/6695/image_1920?unique=99581fd
(0 review)

3.75 3.75 USD 3.75

¥ 27.00

Not Available For Sale


  • Input Voltage

This combination does not exist.


Share :
100% original guarantee
Return within 30days
Free delivery on all orders

Brand: QSKJ

Model: QS-7812-0.5A

Parameters:

  • Module Properties: Non-isolated step-down module (buck)

  • Rectifier mode: Synchronous rectification

  • Input voltage: 13-24V/13-32V

  • Output voltage: 12V (precision ± 1%)

  • Output power: 6W

  • Recommended input and output capacitors: input capacitance 10UF (ceramics), the output capacitor 22UF (ceramic)

  • Maximum capacitive load: 1000UF

  • Output current: 0.5A

  • Conversion efficiency: input voltage 6.5 V 94% (highest), input voltage 20V 85% (minimum)

  • Operating temperature: industrial - grade (-40 ° c to + 85 ° c) (85 ° c output current 0.5 A)

  • The maximum case temperature at working: 100 ° c

  • Full load temperature rise: 50 ° c

  • Load regulation: ± 0.5 %

  • Voltage regulation: ± 0.5 %

  • Output ripple: 0.5A load current (typical application circuit, the input of ceramic capacitors 10UF, output ceramic capacitors 22UF)

  • Input 14V output ripple 60mV

  • Input 24V output ripple 100mV

  • 20V input ripple output 45mV

  • Bandwidth: 20M

  • If you ripple to lower the need, please install LC filter at the output

  • Dynamic response speed: 5% 200uS

  • Short circuit protection: current limit (3A), self-recovery

  • Over-temperature protection: 150 ° c

  • Static current: 7-20 mA (the higher the input voltage, the higher of the static current)

  • Input reverse polarity protection: None

  • Wiring: Welding, the SIP-3 package, compatible with the LM7805.


Note:

  • Integrated within the filter capacitor, even without to external capacitor, the item can work properly.

  • In order to lower the output ripple, please install filter capacitor at the input and output port.
