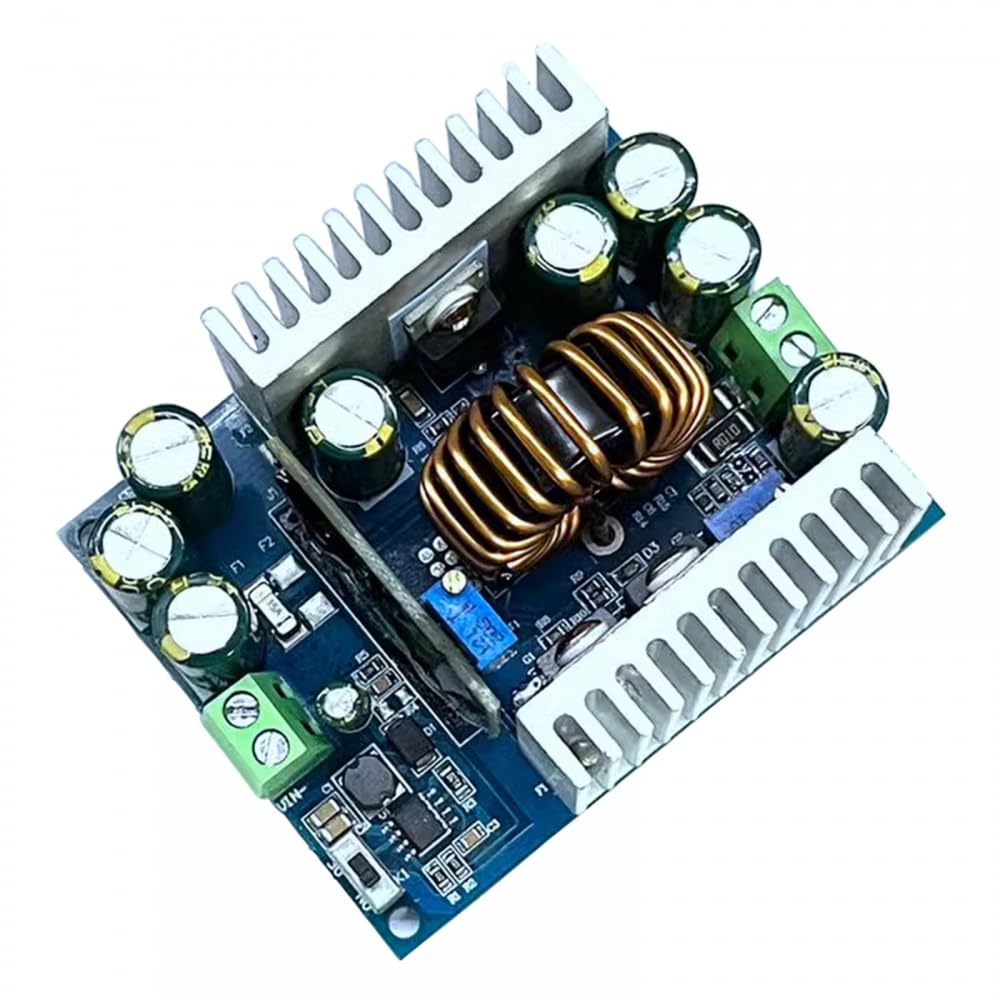

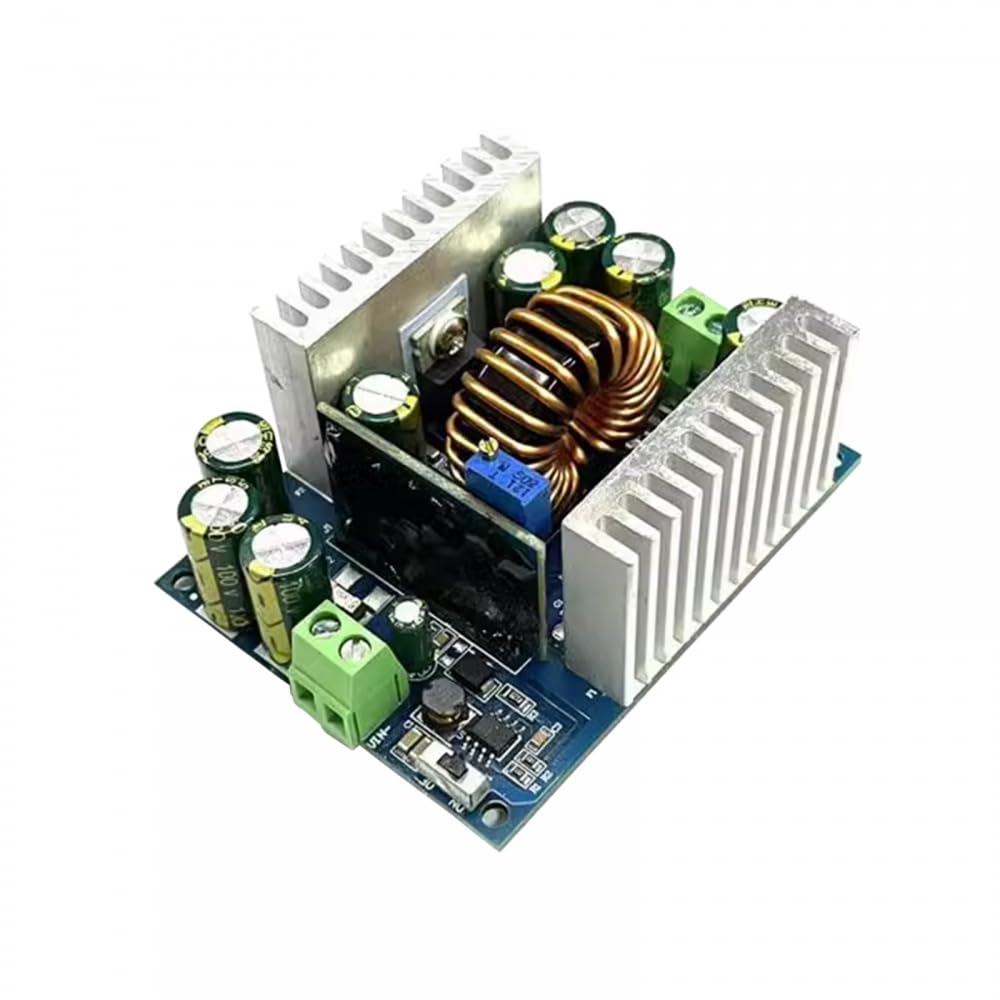

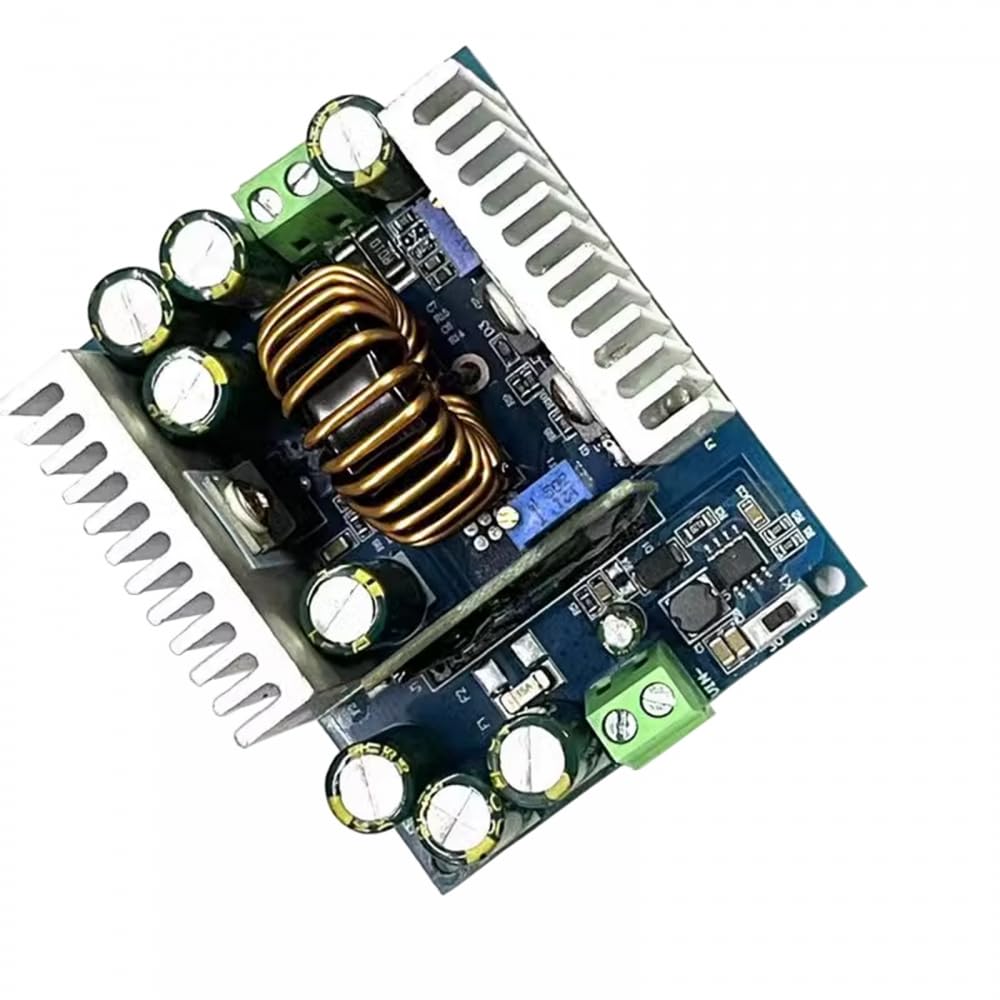

DC-DC 500W High Power Buck Converter DC12-95V to 2-90V Step Down Voltage Adjustable Power Module QS-BK1295-500W

Feature:

• 1>.Adopting a step rectification scheme, the efficiency is extremely high, with a maximum efficiency of 96%.
• 2>.The output voltage and current are continuously adjustable.
• 3>.The input voltage can reach up to 95V, and the output voltage can reach up to 90V.
• 4>.Input anti reverse connection. Positive and negative connections do not burn.
• 5>.There is a soft start switch.

Parameter:

• 1>.Input voltage: 12-95V
• 2>.Output voltage: 1.5-90V
• 3>.Input output pressure difference: 2V
• 4>.Output constant current: 0.3-18A (continuously adjustable)
• 5>.Output rated current: 15A
• 6>.Rated output power: 400W
• 7>.Input over-voltage protection: None (over-pressure prohibited)
• 8>.Working temperature: -10-65℃
• 9>.Working frequency: 120KHz
• 10>.Conversion efficiency: up to 96%
• 11>.Short circuit protection: Yes (constant current protection)
• 12>.Input reverse protection: Yes (MOS transistor reverse connection)
• 13>.Size: 76*60*34MM

Note：

Efficiency is related to input and output voltage, current, and voltage difference.

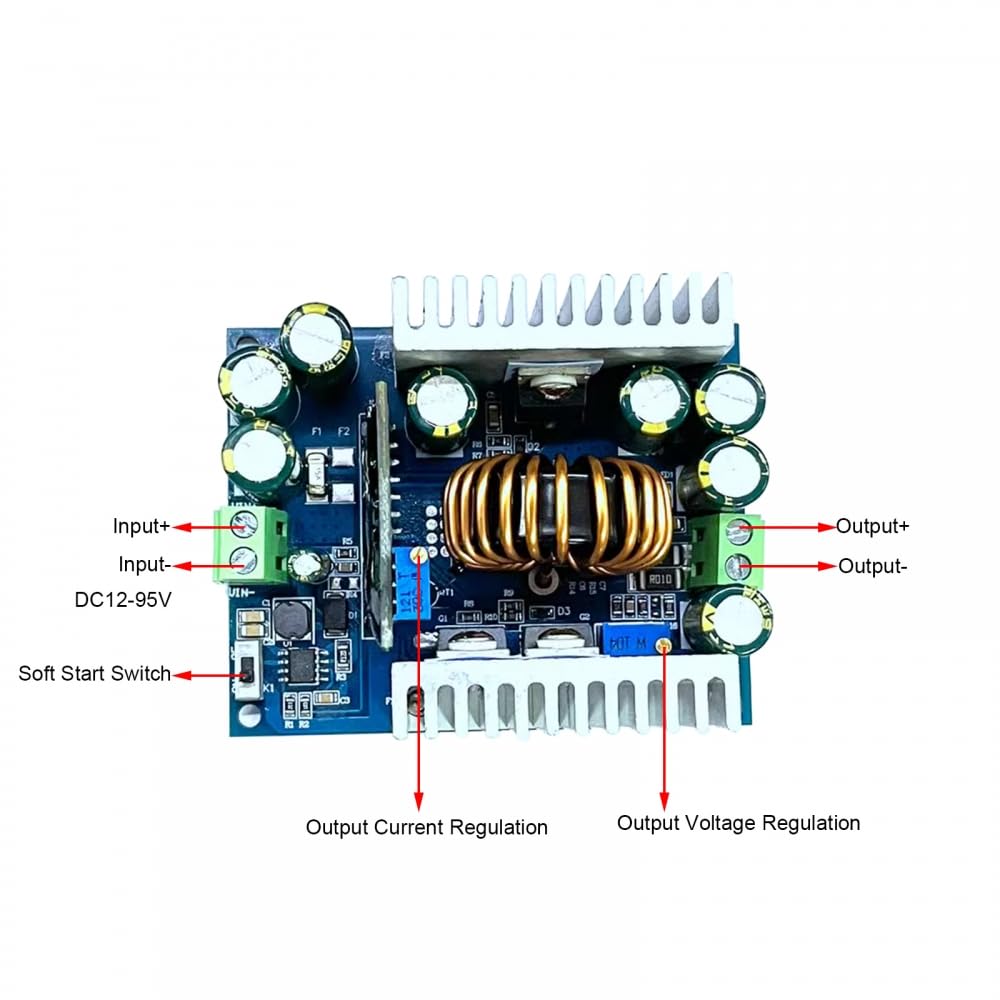

Output current adjustment: Set the multimeter or ammeter to the 20A or 10A current position, adjust the voltage of the power supply to 5A, turn the constant current potentiometer counterclockwise for about 10 turns, adjust the current to the minimum, use the multimeter to short-circuit the output, and then adjust the potentiometer clockwise to adjust the current to the desired current value.
