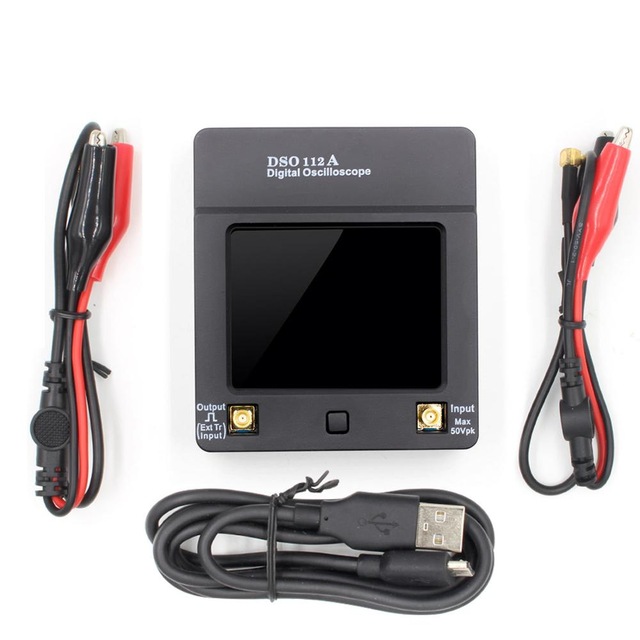

DSO112A 0-2MHz Analog Bandwidth 5MS Sampling Rate Mini Digital Oscilloscope

Features:

• A pocket oscilloscope with color display and touch panel.

• PC upload waveform data.

• Freeze at any time waveform display (HOLD function).

• Square wave test signal comes 1000Hz/3.3V.

• Firmware upgradable via Micro USB.

• Battery/USB powered, built-in smart charger.

• 2MHz analog bandwidth and 5Msps Max. real-time sampling rate.

• Vertical sensitivity: 2mV/Div, with high accuracy and low noises.

• Can save 24 groups of preset parameters, save and recall waveform conveniently.

• Measuring frequency and Max./Min./Vpp/Avg. values of voltage.

• Adds external triggering function, stronger signal capture ability.

• Unique rolling slow signal display, the display can be fully continuous signal, unlike SCAN mode will cause the signal display discontinuous.

Parameters:

• Analog Frequency Bandwidth: 0-2MHz

• Max. Real-time Sampling Rate: 5Msps

• Max. Input Voltage: 50Vpk (100Vpp)

• Max. Record Length: 512/1024 Optional

• Input Resistance: 1M ohm

• ADC Precision: 8 Bit

• Coupling Method: DC / AC

• Trigger Type: Auto, Normal, Single

• Trigger Edge: Rising / Falling Edge

• Trigger Source: Internal / External

• External Trigger Voltage: 0-15V

• Display: TFT Color Display

• Dimension: 68 * 78 * 18mm / 2.7 * 3.1 * 0.7in

• Package Size: 17.5 * 10 * 3cm / 6.9 * 3.94 * 1.18in

• Vertical Sensitivity: 2mV/Div-20V/Div Total 12 grades(by way of Progressive 1-2-5)

• Horizontal Time Base Range: 1μs/Div-50s/Div 21 grades(by way of Progressive 1-2-5)

• Power Supply: 3.7V 1200mAh Li-ion Battery(included) / USB Interface

• Time cursors, can automatically calculate and display the time difference

• Voltage cursors can automatically calculate and display the voltage difference
