LCD1602 3V/5V Character Dot Matrix LCD Display Module 16x2 Black Background

Price:

$ 2.76
USD
  2. Shop
  3. LCD1602 3V/5V Character Dot Matrix LCD Display Module 16x2 Black Background
YF-S201 Water Heater Cold Water Sensing Flow Transducer Meter
YF-S201 Water Heater Cold Water Sensing Flow Transducer Meter
$ 2.49
$ 2.49
102mm Width Light-transmitting Waterproof Cover Acrylic Plate for S106 Series Aquarium Light
102mm Width Light-transmitting Waterproof Cover Acrylic Plate for S106 Series Aquarium Light
$ 5.17
$ 5.17

LCD1602 3V/5V Character Dot Matrix LCD Display Module 16x2 Black Background

https://www.qskj.cc/web/image/product.template/3167/image_1920?unique=23c53c7
(0 review)

$ 4.86 4.86 USD $ 4.86

¥ 32.20

Not Available For Sale

  • Voltage
  • Character Color

This combination does not exist.

Contact Us
Categories :
Character LCD Module
SKU :
180048
Share :
Terms and Conditions :
100% original guarantee
Return within 30days
Free delivery on all orders
You may also like
USB Programmer CH341A Series Burner Chip 24 EEPROM BIOS LCD Writer 25 SPI Flash
USB Programmer CH341A Series Burner Chip 24 EEPROM BIOS LCD Writer 25 SPI Flash
$ 4.01 $ 4.01
240128A Graphic LCD Display Screen Module
240128A Graphic LCD Display Screen Module
$ 21.13 $ 21.13
IIC/I2C/TWI/SP​​I Serial Board Module Port for Arduino 1602 LCD 2004 LCD Display
IIC/I2C/TWI/SP​​I Serial Board Module Port for Arduino 1602 LCD 2004 LCD Display
$ 0.69 $ 0.69
12864B LCD Display Modules Blue Screen with Backlight 5V ST7920
12864B LCD Display Modules Blue Screen with Backlight 5V ST7920
$ 6.05 $ 6.05
1.8 inch TFT LCD ST7735S Display Module128x160 51/AVR/STM32/AR​M 8/16 bit
1.8 inch TFT LCD ST7735S Display Module128x160 51/AVR/STM32/AR​M 8/16 bit
$ 8.29 $ 8.29
RT1601 16x1 Characters LCD module Blue backlight
RT1601 16x1 Characters LCD module Blue backlight
$ 2.76 $ 2.76

Parameters:

  • Model: YB1602A (black background)
  • Dot Matrix: 16X2

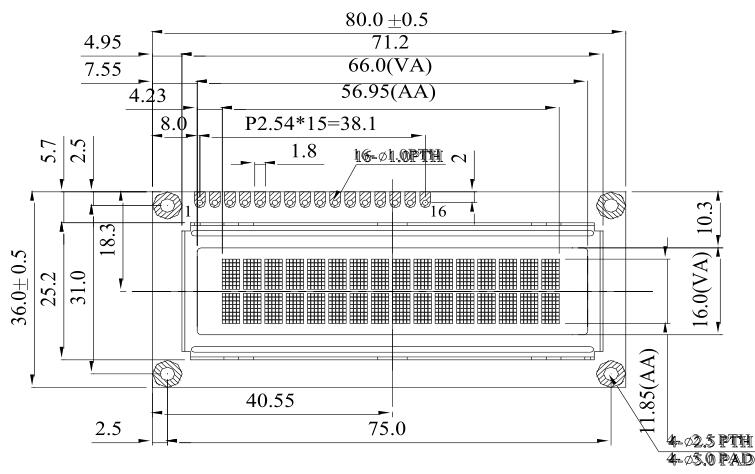

  • Dimension: 80.0X36.0X12mm
  • Viewport area size: 64.5X13.8/16.0
  • Controller: SPLC780C or EQV
  • Operating voltage: 5.0V/3.3V
  • Specifications: STN
  • Colors of Characters: White/Green/Yellow/Orange/Red

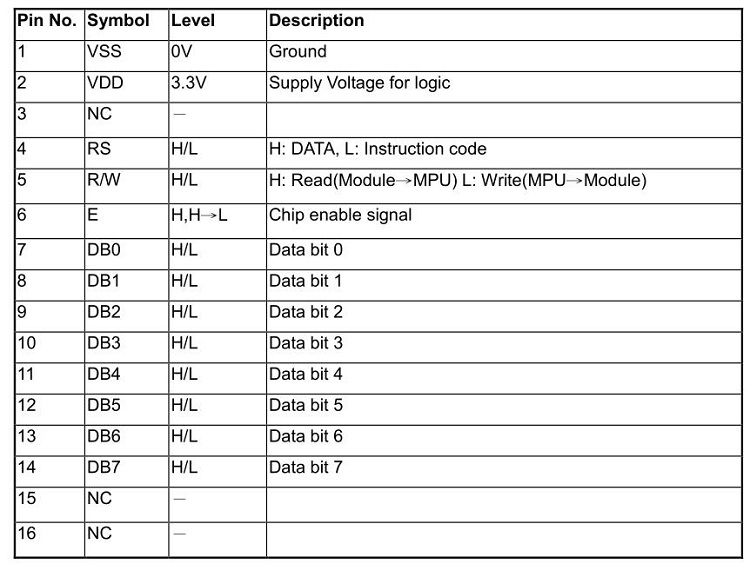

Interface definition
