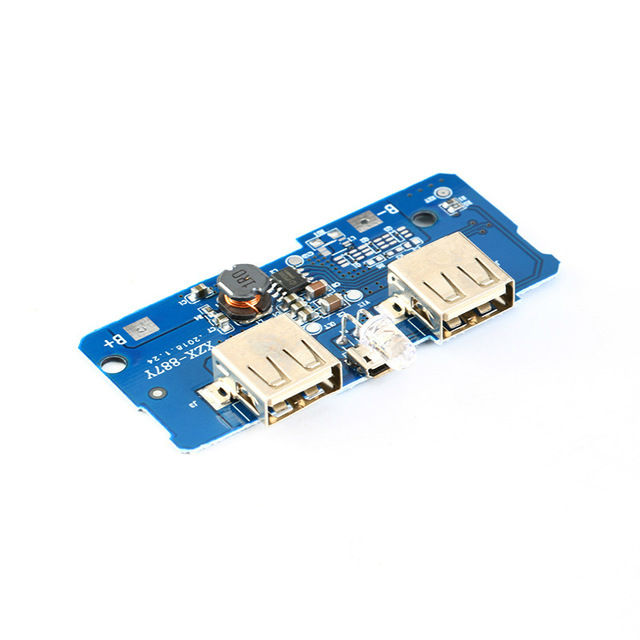

18650 Lithium Battery Charger PCB Board Boost Step Up Module With Led

https://www.satistronics.com/web/image/product.template/6019/image_1920?unique=d8c7308
(0 review)

1.30 1.3 USD 1.30

¥ 9.46

Not Available For Sale


    This combination does not exist.


    Categories :
    Power Modules
    SKU :
    180651
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Introduction

    • The IP5306 is a multi-function power management SOC with an integrated boost converter, lithium battery charge management, and battery power indication, providing a complete power solution for mobile power.

    • The IP5306's high level of integration and versatility make it possible to use only a few external components in the application and reduce the size of the overall solution.

    • The IP5306 requires only one inductor for the buck and boost functions.

    • DC-DC converter works at 500KHz

    • The IP5306's synchronous boost system provides up to 2.4A of output current with a conversion efficiency of up to 91%. When it is unloaded, it automatically goes to sleep and the quiescent current drops to 50uA.

    • The IP5306 uses a switching charging technology to provide a maximum of 2.1A and a charge efficiency as high as 97%. The built-in IC temperature and input voltage intelligently regulate the charging current.

    Product Features:

    • Dual USB output.

    • Synchronous switch charge and discharge

    • 4A Synchronous Boost Converter, 2.1A Synchronous Switch Charge

    • Boost efficiency up to 96%

    • Up to 97% charging efficiency

    • Built-in power path management, support side charge and put

    • Supports high load current line compensation

    • Charging

    • Adaptive charge current regulation, matching all adapters

    • Charge voltage accuracy: ±0.5%

    • Supports 4.20/4.30/4.35/4.40V batteries

    • Power display

    • Supports 4,3,2,1 LED display

    • Feature-rich

    • Press the boot

    • Built-in lighting driver

    • Automatically detect phone insertion and unplugging

    • Low power consumption

    • Intelligent identification of load, automatic standby

    • Standby power consumption less than 100 μA

    • BOM minimalist

    • Power MOS built-in, single inductor for charge and discharge

    • Multiple protection, high reliability

    • Output over-current, over-voltage, short-circuit protection

    • Input overvoltage, overcharge, overdischarge, overcurrent discharge protection

    • Over temperature protection

    • ESD 4KV, Instant Voltage 12V
