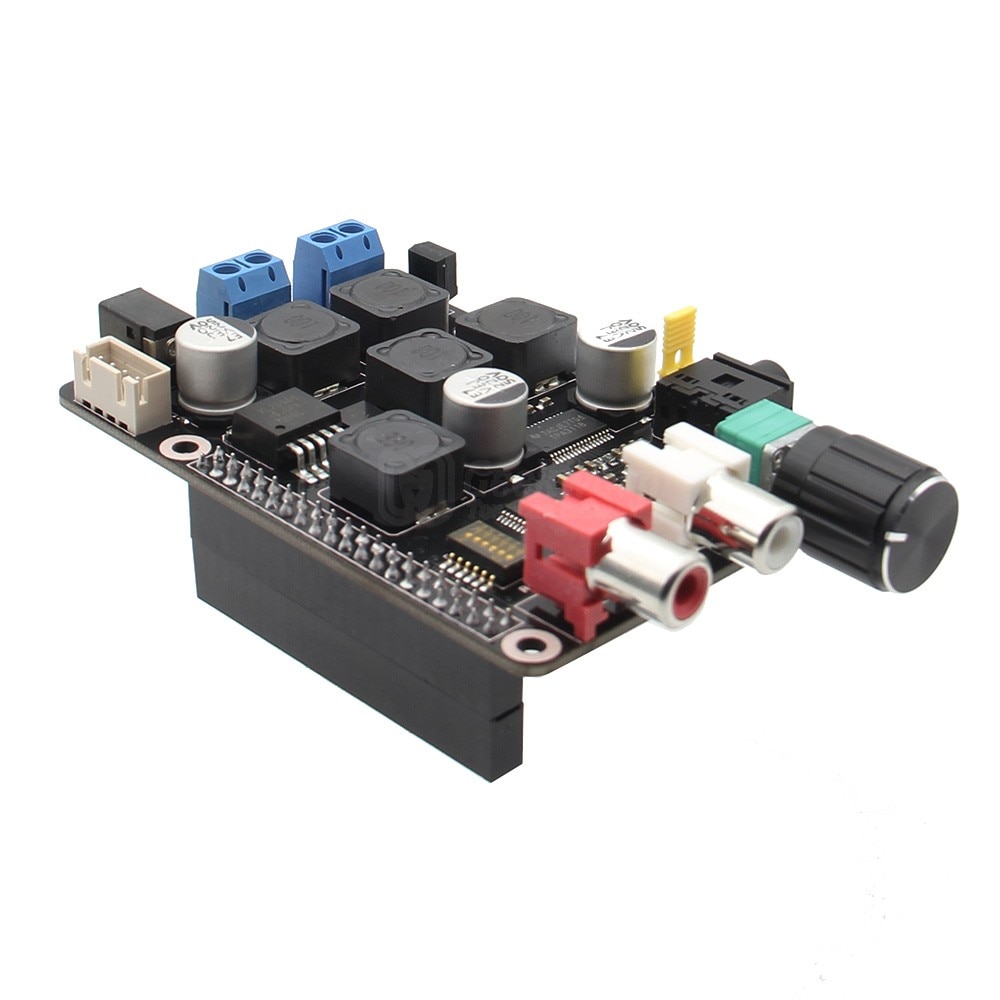

Raspberry Pi DAC Full-HD Class-D Amplifier I2S PCM5122 X400 Audio Expansion Board

https://www.satistronix.com/web/image/product.template/4159/image_1920?unique=fb4d6cf
(0 review)

41.07 41.07 USD 41.07

¥ 298.00

Not Available For Sale


    This combination does not exist.


    SKU :
    180957
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    [Packing List]

    Note: This is the newest version of X400  Audio Expansion Board.
    Bundle 1:
    • 1 x Expansion board
    • 1 x Pack of plastic screws
    • 2 x Jumper cap
    Bundle 2:  Bundle 1 + 19V 2A EU Power supply

    ​Note:  1/the raspberry pi is not included. 2/ Power supply specification: Input Voltage: 100-240V AC, Output Voltage: 19V DC, 2A, DC Jack: 5.5x2.5mm, Frequency: 50/ 60Hz.

    ​[Operating System]

    • Raspbian Jessie / Volumio ...etc
    • For Use With RASPBERRY PI 3 B+ (B Plus) / Pi 3 Model B / PI 2 MODEL B / PI 1 MODEL B+

    [Audio]

     - Full-HD audio – up to 24-bit/192kHz playback
     - Class leading audio; 112db SNR, and THD of 0.0019%
     - Audiophile TI Burr Brown 32-bit/384kHz DAC (TI PCM5122)
     - Uses the digital I2S audio signals to reduce CPU load over USB audio solutions
     - Integrated hardware volume control
     - Mute can be enabled / disabled via jumper
     - Built in High quality audio headphone amplifier (TI TPA6133A)
     - Earphone AMP can be enabled / disabled via jumper
     - Built in High quality Class-D stereo audio amplifier (TI TPA3118D2)
     - Up to 2 x 20W into 4 ohm
     - AMP can be enabled / disabled via jumper
     - Phono/RCA connectors
     - 3.5mm stereo audio jack
     - Speaker terminals

    [Wireless]

    - Built in IR sensor (38KHz)

    [Misc]

     - Power output socket
     - DIP switch to remove connection from RPi’s pin header
     - Directly connected on top of the Raspberry Pi using the board GPIO header pins
     - No wiring nor soldering is required

    970x600-W800

    [Specification]

    - Suitable for Raspberry Pi Model B+ and Raspberry Pi 2 Model B , Raspberry Pi 3 Model B !
    - 6V to 24Vdc converted to 5V, 3A via step-down DC/DC converter to power the Raspberry Pi
    - 84 x 55.1mm/3.30x2.16inch (Same size as Raspberry Pi)

    [Power supply]

    X400 expansion board supplies the RPi with a regulated +5V through the GPIO header using a 2A poly-resettable (PTC) fuse. With the wide voltage input range (6~24vdc), the RPi can be powered from a wide variety of external sources such as batteries, power adapters, solar battery sources, etc.

    Recommended Power Adapter : 110~240VAC input, 18 ~ 22VDC 2A output
    Dimension of input plug (Unit: mm)

    DC plug
    Note:
    X400 expansion board can be used with the X5000  board  / X5000k  power supply, please refer to :

    WARNING: DO NOT APPLY POWER TO YOUR RASPBERRY PI VIA THE PI’s MICRO USB SOCKET.

    W800-1

    ​​[CONFIGURING VOLUMIO]

    <1> Select the “System” menu

    Volumio (1)

    <2> Select IQaudIO DAC Plus under “Activate I2S driver”. Then reboot and you’re done.

    Volumio (2)

    [CONFIGURING RASPBIAN JESSIE]

    Version :                 March 2016
    Release date :        2016-03-18
    Kernel version :     4.1
     <1> To ensure that the necessary kernel modules are loaded at boot, ensure your /boot/config.txt file has the entry below …
    pi@raspberrypi ~ {0}nbsp; sudo nano /boot/config.txt
    dtoverlay=iqaudio-dacplus

    x400 setting 1

    <2> You must enable i2C support for the X400 to operate. On the Raspberry Pi check if you have the following file and if so delete the line containing i2c-bcm2708 and sndsoc-pcm512x.

    pi@raspberrypi ~ {0}nbsp;  sudo nano /etc/modprobe.d/raspi-blacklist.conf

    Delete or comment out the lines containing the text below if it exists
    blacklist i2c-bcm2708
    blacklist snd-soc-pcm512x

    <3> To ensure that the necessary kernel modules are loaded at boot, ensure your /etc/modules file looks the same as below…
    pi@raspberrypi ~ {0}nbsp;  sudo nano /etc/modules

    snd_soc_bcm2708
    snd_soc_bcm2708_i2s
    bcm2708_dmaengine
    snd_soc_pcm512x
    snd_soc_iqaudio_dac

    x400 setting 2

    <4> Flush your filesystem changes and reboot the Raspberry Pi

    pi@raspberrypi ~ {0}nbsp;  sync
    pi@raspberrypi ~ {0}nbsp;  sudo reboot

    <5> Using your mouse to right click the icon of speaker and select "IQaudioDAC"

    iqaudio setting

    <6> Installing LIRC

    pi@raspberrypi ~ {0}nbsp;  sudo apt-get install lirc

    <7> Add the two lines below to /etc/modules . This will start the modules up on boot. Pin 8 bellow will be used to take the output from the IR sensor.

    pi@raspberrypi ~ {0}nbsp;  sudo nano /etc/modules

    lirc_dev
    lirc_rpi gpio_in_pin=17

    ir_0

    <8> Save your changes by pressing Ctrl-x then Y

    <9> If you are using 3.18.x RaspberryPi firmware you must modify one additional file for the lirc-rpi kernel extension to be loaded:

    Edit your /boot/config.txt file

    pi@raspberrypi ~ {0}nbsp;  sudo nano  /boot/config.txt

    and add:
    dtoverlay=lirc-rpi,gpio_in_pin=17

    ir_1

    <10> Edit /etc/lirc/hardware.conf and have it appear exactly as shown below.

    pi@raspberrypi ~ {0}nbsp;  sudo nano /etc/lirc/hardware.conf

    # /etc/lirc/hardware.conf
    # Arguments which will be used when launching lircd
    LIRCD_ARGS="--uinput"
    # Don't start lircmd even if there seems to be a good config file
    # START_LIRCMD=false
    # Don't start irexec, even if a good config file seems to exist.
    # START_IREXEC=false
    # Try to load appropriate kernel modules
    LOAD_MODULES=true
    # Run "lircd --driver=help" for a list of supported drivers.
    DRIVER="default"
    # usually /dev/lirc0 is the correct setting for systems using udev
    DEVICE="/dev/lirc0"
    MODULES="lirc_rpi"
    # Default configuration files for your hardware if any
    LIRCD_CONF=""
    LIRCMD_CONF=""

    2

    <10> Edit /etc/lirc/hardware.conf and have it appear exactly as shown below.

    pi@raspberrypi ~ {0}nbsp;  sudo nano /etc/lirc/hardware.conf

    The highlighted text are the parts that will need changing, though it’s worth checking the rest of the text incase you have a different initial configuration.

    <11> Save your changes by pressing Ctrl-x then Y

    <12> Reboot the Raspberry Pi

    pi@raspberrypi ~ {0}nbsp;  sudo reboot

    <13> Run these two commands to stop lircd and start outputting raw data from the IR receiver:

    pi@raspberrypi ~ {0}nbsp;  sudo /etc/init.d/lirc stop
    pi@raspberrypi ~ {0}nbsp;  mode2 -d /dev/lirc0

    <14> Point a remote control at your IR receiver and press some buttons. You should see something like this:

    IR_testing


    [updated information and details]

    please refer to the official website:

    www.suptronics.com/Xseries.html

    [Matching Case]

    Matching case for this expansion board
