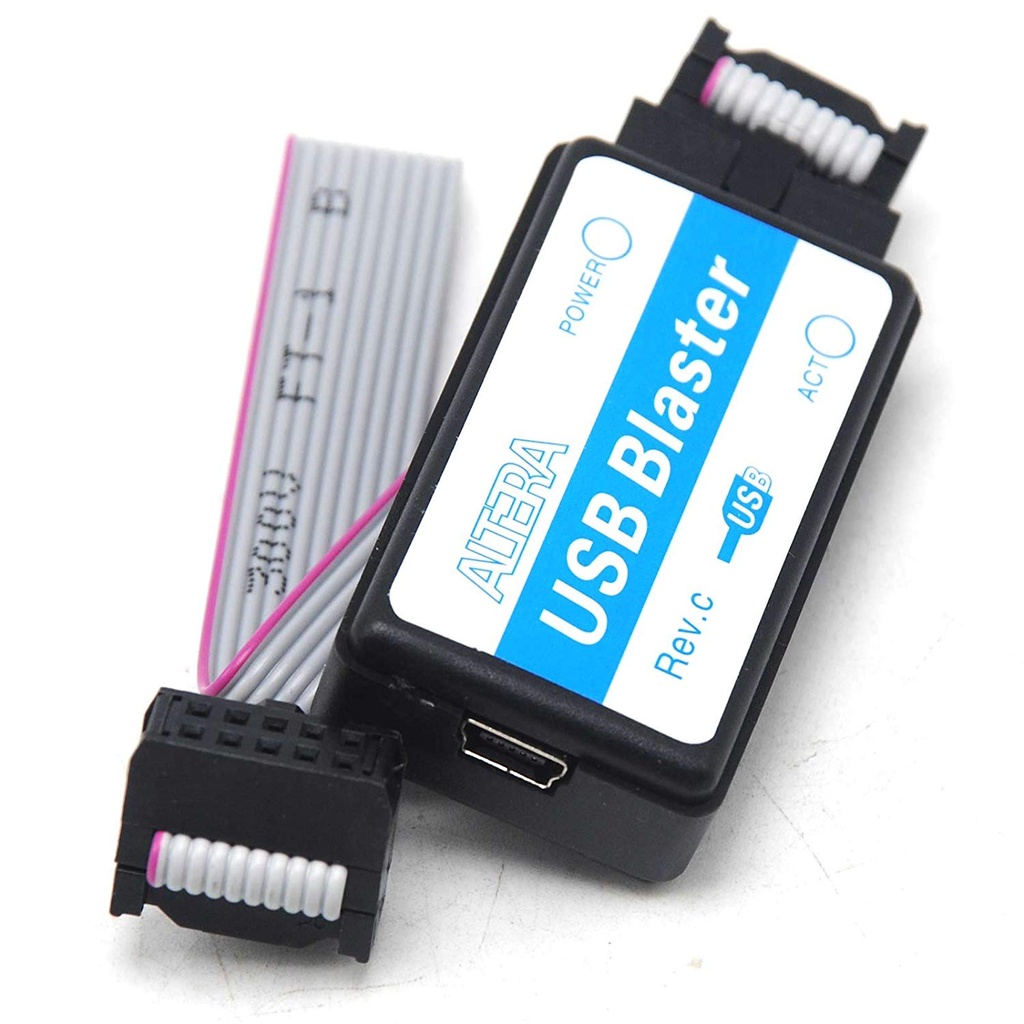

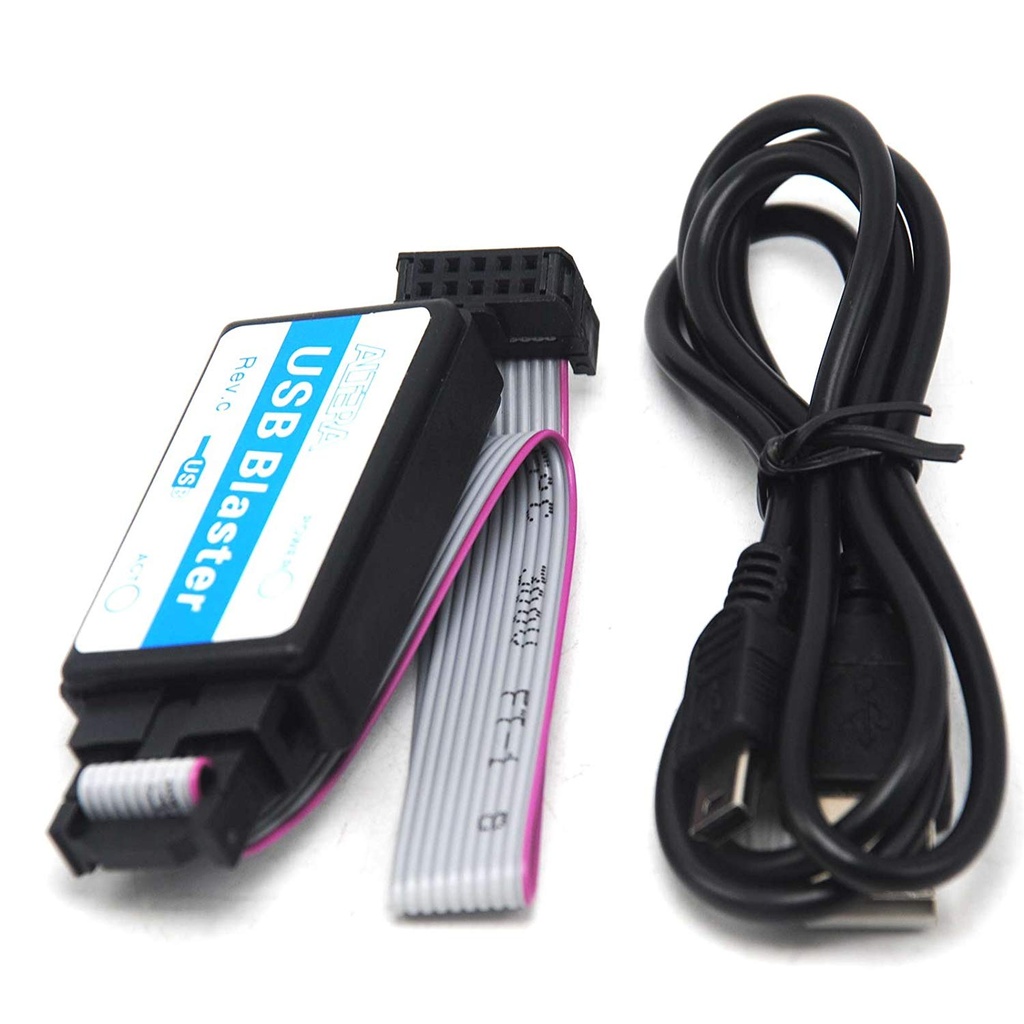

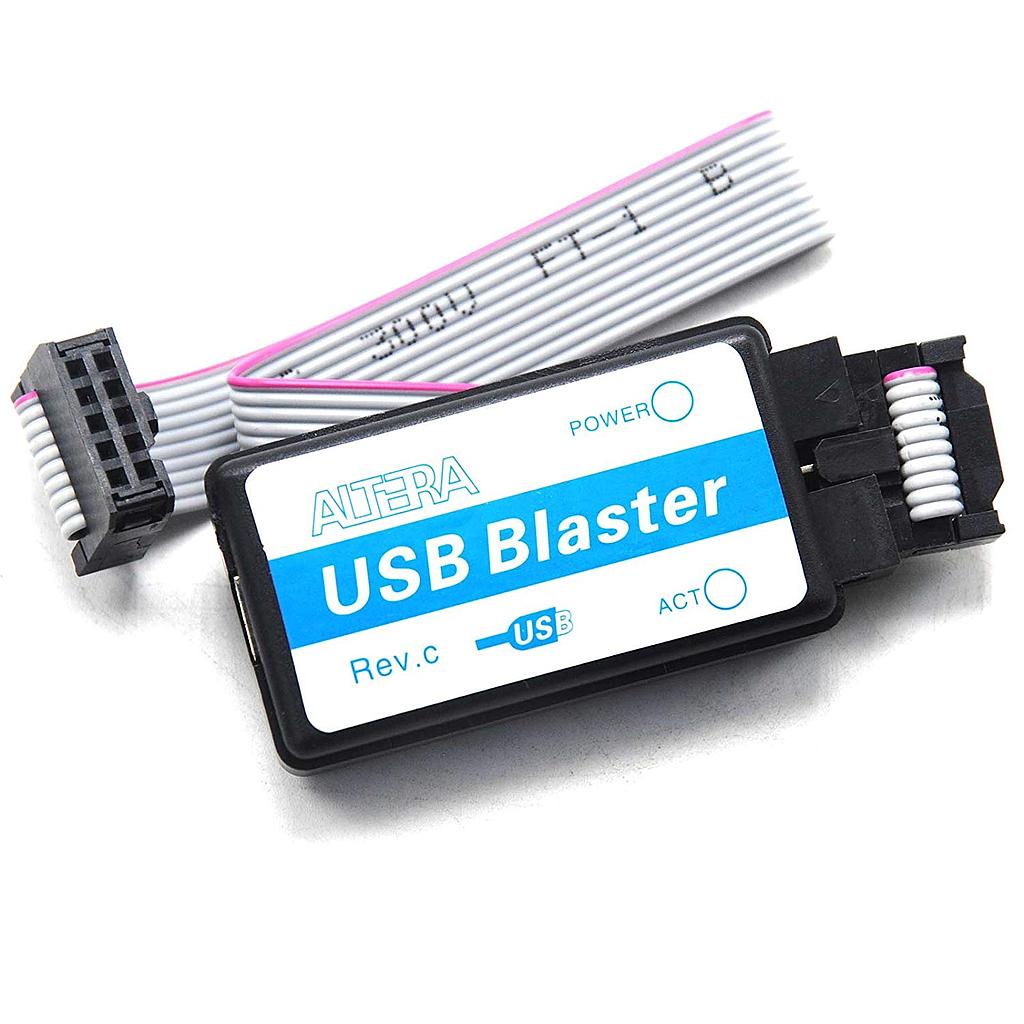

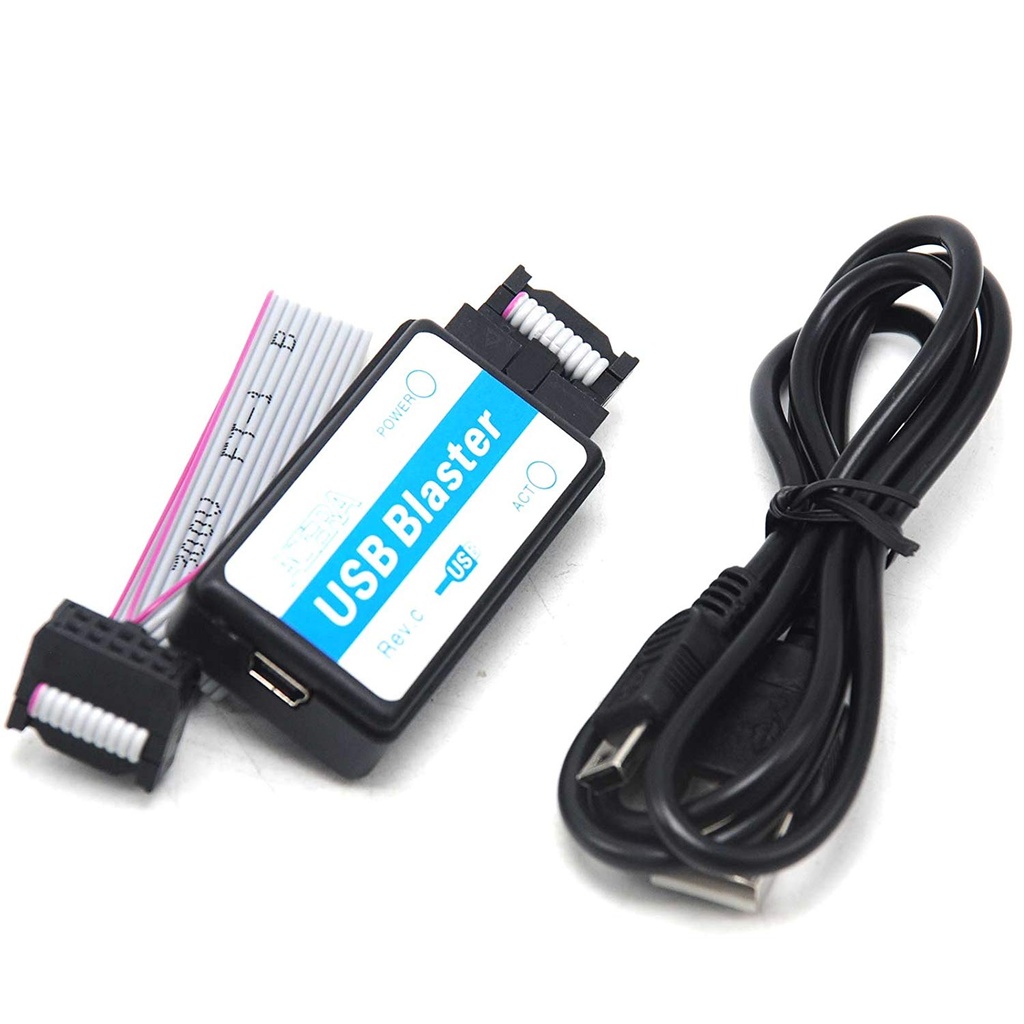

ALTERA USB Byte Blaster II CPLD FPGA Download Cable JTAG Chain Debugger

Description:

• Stably support SignalTap II embedded logic analyzer function ,no mistake while crawlling data;

• Fully support all Altera products such as :

• CPLD: MAX3000, MAX7000, MAX9000 and MAXII

• FPGA: Stratix, StratixII, StratxIII, Cyclone, CycloneII, CycloneIII, ACEX1K, APEX20K and FLEX10K etc.

• Active serial configuration device: EPCS1, EPCS4, EPCS16, EPCS64 etc.

• Enhanced configuration devices: EPC1, EPC4.

• Supports 3 download mode: AS, PS and JTAG;

• Support and Nios II embedded soft core processor communication and debugging, Rev.C latest version Hardware. Support jtag_uart;

• Speed: 6 times faster than parallel port download cable ByteBlasterII;

• Easy to use: MiniUSB interface, easy connection, two status indicator makes debugging more comfortable.

• Fully compatible with ALTERA USB Blaster, functionality and performance are the same as ALTERA original download cable.

• Voltage : 1.5～5V JTAG IO Voltage .

System configuration:

• Windows XP, Windows Vista, Windows7 , USB interface;

• Quartus II version 4.0 or newer version;
