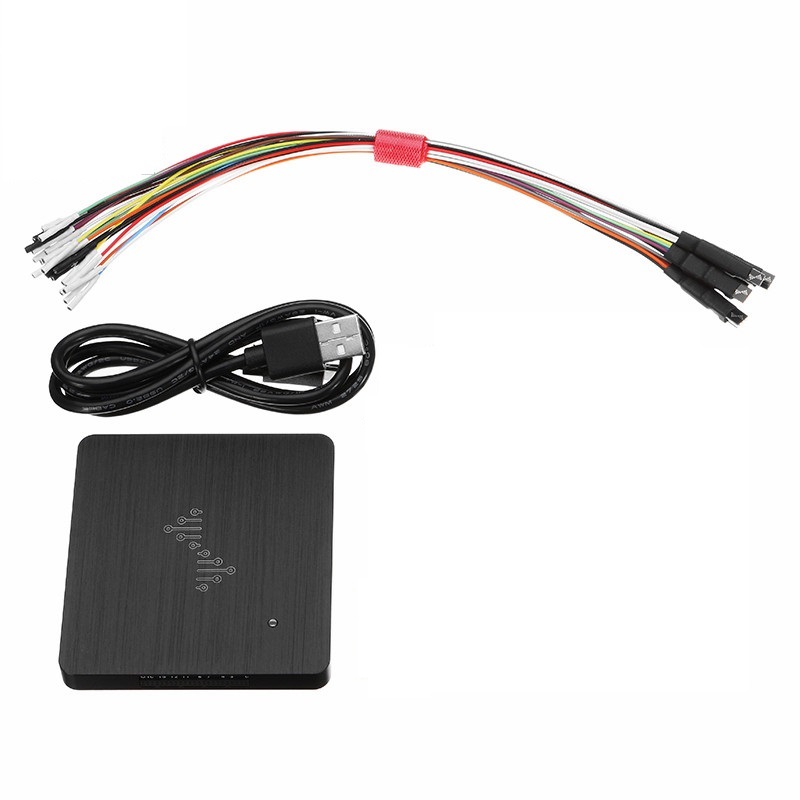

DSLogic Logic Analyzer 16 Channels 400M Sampling USB-based Debugging

https://www.satisled.com/web/image/product.template/2301/image_1920?unique=fb4d6cf
(0 review)

95.47 95.47 USD 95.47

¥ 690.00

Not Available For Sale


  • Version

This combination does not exist.


Categories :
Test Equipment
SKU :
181005
Share :
100% original guarantee
Return within 30days
Free delivery on all orders

Description:

  • DSCope is a USB-based logic analyzer. The sampling section is also based on the Xilinx Spartan-6 FPGA + SDRAM architecture, which uses a differential signal and variable gain amplifier architecture to provide 50MHz analog bandwidth and up to 400MHz single channel sampling frequency.

DSLogic Plus Version Specifications:

  • Mode:stream+buffer

Buffer mode:

  •  400M@4 channels

  •  200M@8 channels

  •  100M@16 channels

Maximum sampling rate:

stream mode:

  • 100M@3 channels

  • 50M@6 channels

  • 25M@12 channels

  • 20M@16 channels

  • The max depth:16G@stream;256K@buffer

  • Hardware storage:256Kbits

  • Trigger:Simple trigger+

  • Sixteen level hardware trigger+

  • Protocol trigger

  • Threshold value:Fixed threshold:0-5v adjustable

  • Voltage range:+-30V

  • Input impedance:250K||7pF

  • State sampling:the max 50M state sampling

Product Details:

  • The max sampling rate:400MHz

  • It can collect and observe digital signal within 100MHz.

  • Overvoltage protection,electrostatic protection,long life

  • Support double mode:stream mode,USB real-time transmission to PC,ultra large sampling depth;buffer mode,wide bandwidth hardware storage,ultra high sampling rate

  • Adjustable threshold value:support various voltage:1.2V/1.8V/2.5V/3.3V/5.0V

  • All metal shell

  • 360 degree noise shielding,quick heat dissipation,circuit operation is more stable.

  • USB TYPE-C interface

  • The max support 16G depth

  • 100M sampling rate can collect 160 seconds wave form

  • 20M sampling rate can collect 13minutes wave form

  • 1M sampling rate can collect 4 hours wave form

  • Window system(xp/vista/win7/win8/win10)

  • Multilayer protocol,date is more intuitive

  • Support Protocol content triggering

DSLogic different from the logic analyzer features other entry level are mainly the following aspects:

  • 256M bit onboard memory to ensure that real-time sampling data up to 1.6Gbps storage. Entry-level logic analyzer Metropolitan bandwidth or memory depth indicators compromise, while greatly reducing the usefulness of such a logic analyzer. For example, real-time transmission through saleae USB memory to store data utilizing the host computer, a good solution to the problem of memory depth, but because of USB bandwidth is limited, can only reach 200-300Mbps sampling bandwidth; Open Workbench Logic Sniffer is used the internal FPGA BRAM as storage space, also has a sampling 1.6Gbps bandwidth, but the memory depth is only 216Kbit.
