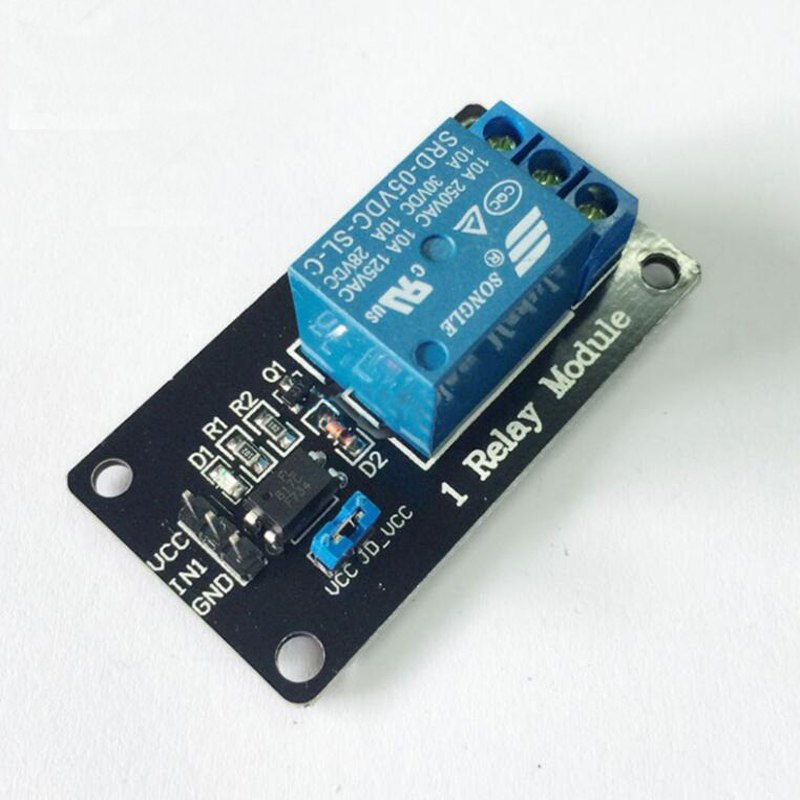

XD-202 1 Road Relay Control Isolation Appliance Integrated Circuits Module with Optocoupler

Parameters:

• Dimensions: 53mm (length) * 28.3mm (width) * 19.3mm (height)

• PCB color: black

• 4 board around with four fixed screw holes, hole diameter 3.1mm, easy to install and fixed

• Relay selection of high-quality loose relay, single-pole double-throw. A common end, a normally open end, a normally closed end

• Optocoupler isolation, good anti-interference

• Low level pull-in, high-level release. Pull the status indicator light D1 bright, release the status indicator D1 off

• VCC for the system power, JD_VCC for the relay power. The default send 5V relay, jumper plug can be inserted

• The maximum output relay: DC 30V / 10A, AC 250V / 10A

• Wiring instructions:

• CC: The system power is positive

• GND: Negative pole of the system power supply
